Sort
Item no.
Description
Search in results
Number of hits 55

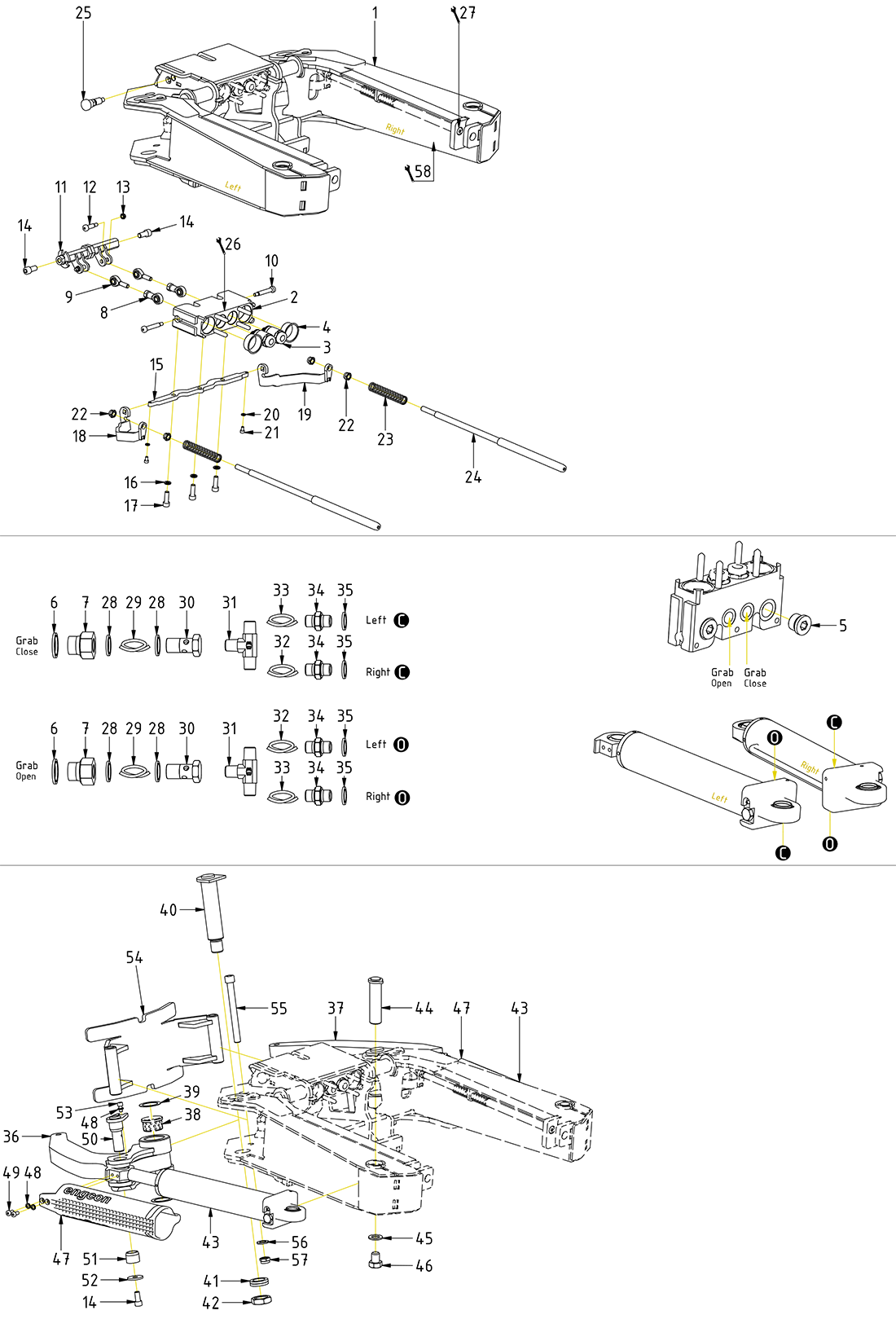

Pos.
Item no.
Description
Replaced by
Number
1
1071000
Frame GRD70B
1
Choose
2
1057365
hydraulic block ECO GRD70 V2
1
Choose
3
1027633
Coupling ECO60 1/2" male - top bracket Version2
Torque: 60Nm
2
Choose
4
7000157
Protection Plug TECO70 hydraulic
2
Choose
5
711532
Plug VSTIR34ED
2
Choose
6
710704
Seal washer GBR08 1/2"
2
Choose
7
710233
adapter 234-08-06
4
Choose
8
1033284
Heim joint M10/Ø10 female
2
Choose
9
1033283
Heim joint M10/Ø10 Male, 42mm
Unscrew 4 turns from bottomed
2
Choose
10
6000124
reamed bolt ø10x50/M8
Loxeal 83-52
2
Choose
11
1044839
Eccenter GRD70
1
Choose
12
611703
reamed bolt ø10x25/M8 136509
2
Choose
13
610922
nut M6M M8 lock
2
Choose
14
6000164
screw MC6S 12x25H 12.9 ZFSHL ISO4762
Loxeal 83-52
4
Choose
15
1044829
carrier GRD70
1
Choose
16
611041
washer NL 10mm 153105
3
Choose
17
612018
screw MC6S 10x30 12.9 Geomet ISO4762
3
Choose
18
1044834
carrier left GRD70
1
Choose
19
1044835
carrier right GRD70
1
Choose
20
611039
washer NL 6mm
2
Choose
21
611512
screw MC6S 6x10 12.9 ZFSHL ISO4762
2
Choose
22
610924
nut M6M M12 lock
4
Choose
23
1038209
spring lock arm GRD20/SWD60
2
Choose
24
1044752
lock arm GRD70
2
Choose
25
6000061
Adjustment screw M16 x 1,5
1
Choose
28
710703
Seal washer GBR06 3/8"
4
Choose
29
7001036
hose
2
Choose
30
710272
banjo bolt 4451-06
2
Choose
31
7000883
Adapter 851-04-04
2
Choose
32
7000899
hose
2
Choose
33
7000900
hose
2
Choose
34
710135
adapter 138-04-29 ( compact 136-04-04 )
4
Choose
35
710702
Seal washer GBR04 1/4"
4
Choose
36
1044774
Grab arm GRD70 left
(POS.38 incl.)
1
Choose
37
1044787
Grab arm GRD70 right
(POS.38 incl.)
1
Choose
38
631001
bushing BWG-F 40/50/55/5x30
4
Choose
39
1042067
shims GRD20 56x40,5x1
Use if required
4
Choose
40
1044793
axle Grab arm GRD70
2
Choose
41
6000122
washer NL 30mm
2
Choose
42
6000059
nut M30x2 low A2 DIN 439
Loxeal 83-52. Torque: 333Nm
2
Choose
43
1048549
grab cylinder-GRD20/GRD70-right/left
2
Choose
44
1068863
Axle grab cylinder against frame GRD60B/70B
2
Choose
45
611010
washer BRB FZB 21x36x3
2
Choose
46
6000054
screw M6S 20x25 FZB 8.8
Loxeal 83-52
2
Choose
47
1051368
grab guard-GRD20/GRD70-right/left-plastic
2
Choose
48
611040
washer NL 8mm 153104
6
Choose
49
6000220
screw MLC6S 8x16 10.9 FZB DIN7984
4
Choose
50
1034640
axle grab cylinder against Grab arm GRD10/20
2
Choose
51
1034641
sleeve axle grab cylinder against Grab arm GRD10/20
2
Choose
52
6000056
washer BRB FZB 13x40x4
2
Choose
53
610432
screw MC6S 8x16H 12.9 ZFSHL ISO4762
2
Choose
54
1044723
stop GRD70 standard
1
Choose
55
6000166
screw MC6S 16x160 12.9 ZFSHL ISO4762
2
Choose
56
611009
washer BRB FZB 17x30x3
2
Choose
57
610926
nut M6M M16 lock
2
Choose
