Sort
Item no.
Description
Search in results
Number of hits 27

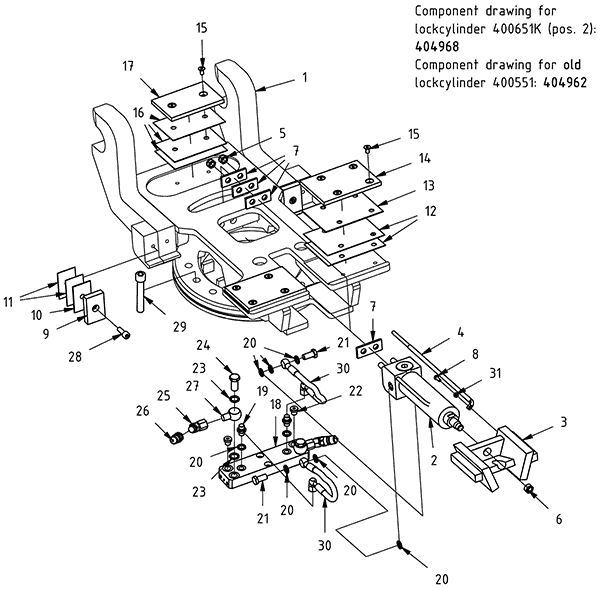

Pos.
Item no.
Description
Replaced by
Number
2
400651K
locking cylinder S1,18, 27
Lockcylinder changed from 400551 2005-02-07
1
Choose
4
400910
Indicator pin S1 RF
1
Choose
5
610924
nut M6M M12 lock
DIN 985
2
Choose
6
610926
nut M6M M16 lock
DIN 985
1
Choose
7
400155
washer locking cylinder 20, 30
4
Choose
8
610109
screw M6S 6x16 10.9 FZB
8,8 Zinc plated ISO 4017
1
Choose
9
400511
shims quick hitch - S1 - supporting heel [krok]
2
Choose
10
400529
shims quick hitch - S1 - stödklack, 2mm [krok]
2
Choose
11
400528
shims quick hitch - S1 - stödklack, 1mm [krok]
4
Choose
12
400530
shims quick hitch - S1, S2, S3, 27 - stora, 1mm
4
Choose
13
400531
shims quick hitch - S1, S2, S3, 27 - stora, 2mm
2
Choose
14
400512
shims quick hitch - S1, S2, S3, 27 - stora
2
Choose
15
610635
screw MF6S 10x30 10.9 untreated ISO10642
10,9 Untreated DIN 7991
10
Choose
16
400532
shims quick hitch - S1, S2, S3, 27 - små, 1mm
3
Choose
17
400513
shims quick hitch - S1, S2, S3, 27 - small
1
Choose
19
710104
Adapter 136-04-04
132-04-04
2
20
710702
Seal washer GBR04 1/4"
GBR-04
8
Choose
21
710271
banjo bolt 4451-04
4916-04
2
Choose
23
710703
Seal washer GBR06 3/8"
GBR-06
4
Choose
24
710272
banjo bolt 4451-06
4916-06
2
Choose
25
710211
adapter 030045-06-06
2
Choose
26
790113
Quick coupling 3/8" male 3820
3820 Cejn 10 525 6204
2
Choose
27
710147
adapter 830-06-06
144-06-06
2
Choose
28
610452
screw MC6S 10x30 12.9 untreated ISO4762
12,9 Untreated ISO 4762
2
29
610532
screw MC6S 16x100 12.9 untreated ISO4762
12,9 Untreated ISO 4762
12
30
740205
hose lock - EC219 S60
2
Choose
31
610921
nut M6M M6 lock
DIN 985
1
Choose
