Sort
Item no.
Description
Search in results
Number of hits 13

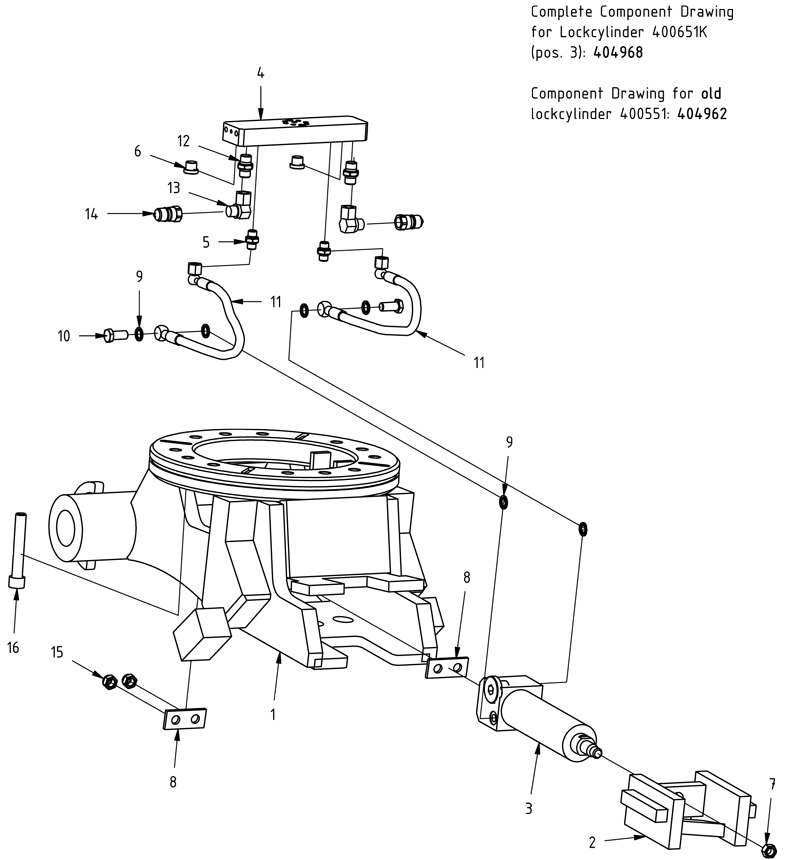

Pos.
Item no.
Description
Replaced by
Number
2
401049
lock wedge SMP2
1
Choose
3
400651K
locking cylinder S1,18, 27
Changed from lockcylinder 400551
1
Choose
5
710104
Adapter 136-04-04
132-04-04
2
7
610926
nut M6M M16 lock
DIN 985
1
Choose
8
400155
washer locking cylinder 20, 30
2
Choose
9
710702
Seal washer GBR04 1/4"
GBR-04
6
Choose
10
710271
banjo bolt 4451-04
4916-04
2
Choose
11
740205
hose lock - EC219 S60
2
Choose
12
710106
adapter 136-06-06
132-06-06
2
Choose
13
710215
adapter angle 030090-04-04
704-04
2
Choose
14
790113
Quick coupling 3/8" male 3820
3820 Cejn 10 525 6204
2
Choose
15
610924
nut M6M M12 lock
DIN 985
2
Choose
16
610532
screw MC6S 16x100 12.9 untreated ISO4762
12.9 Untreated ISO 4762
12
