Number of hits 46

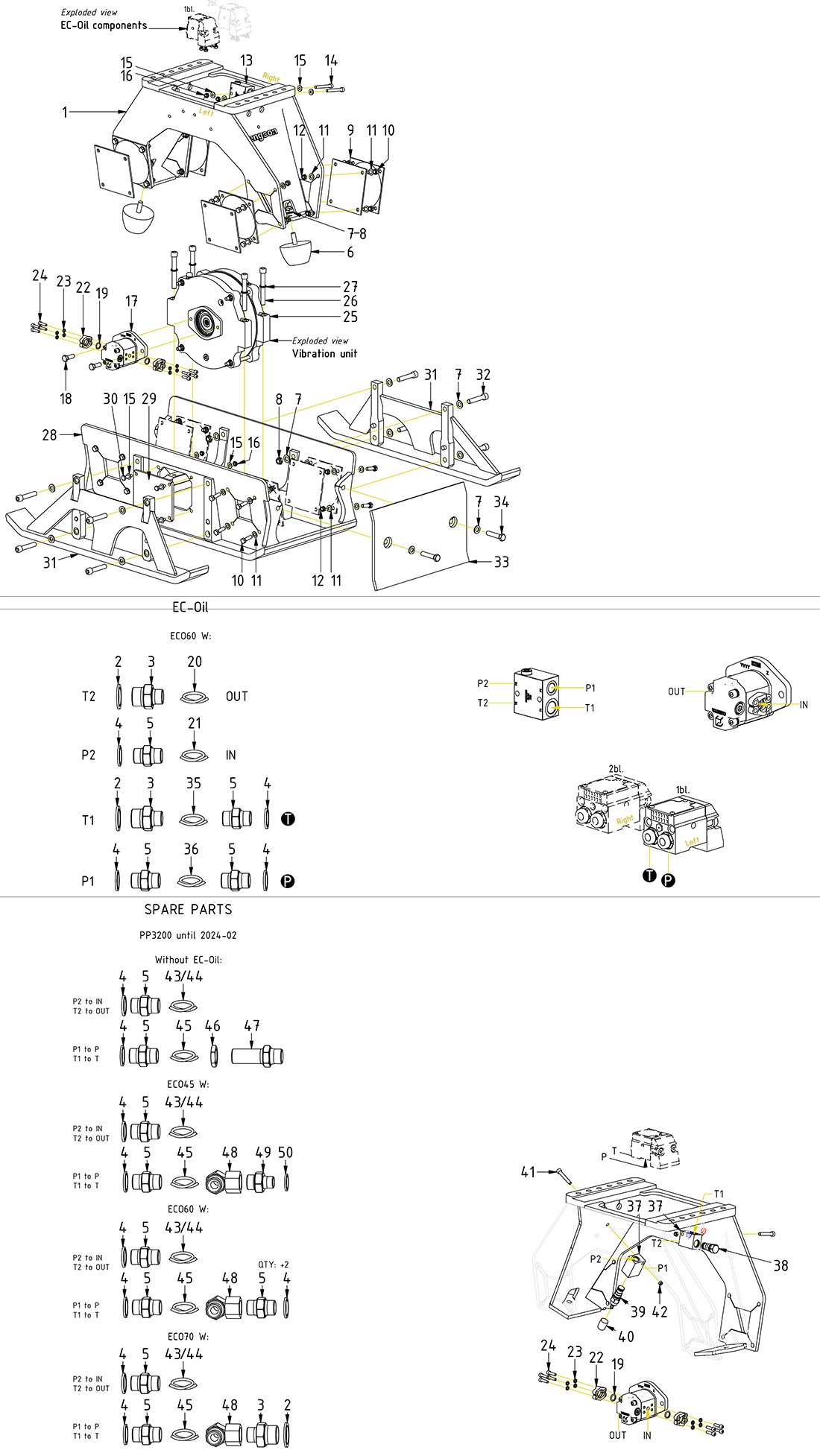

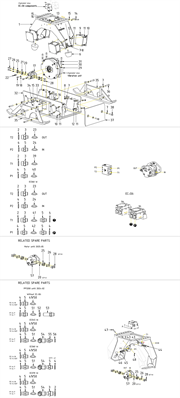

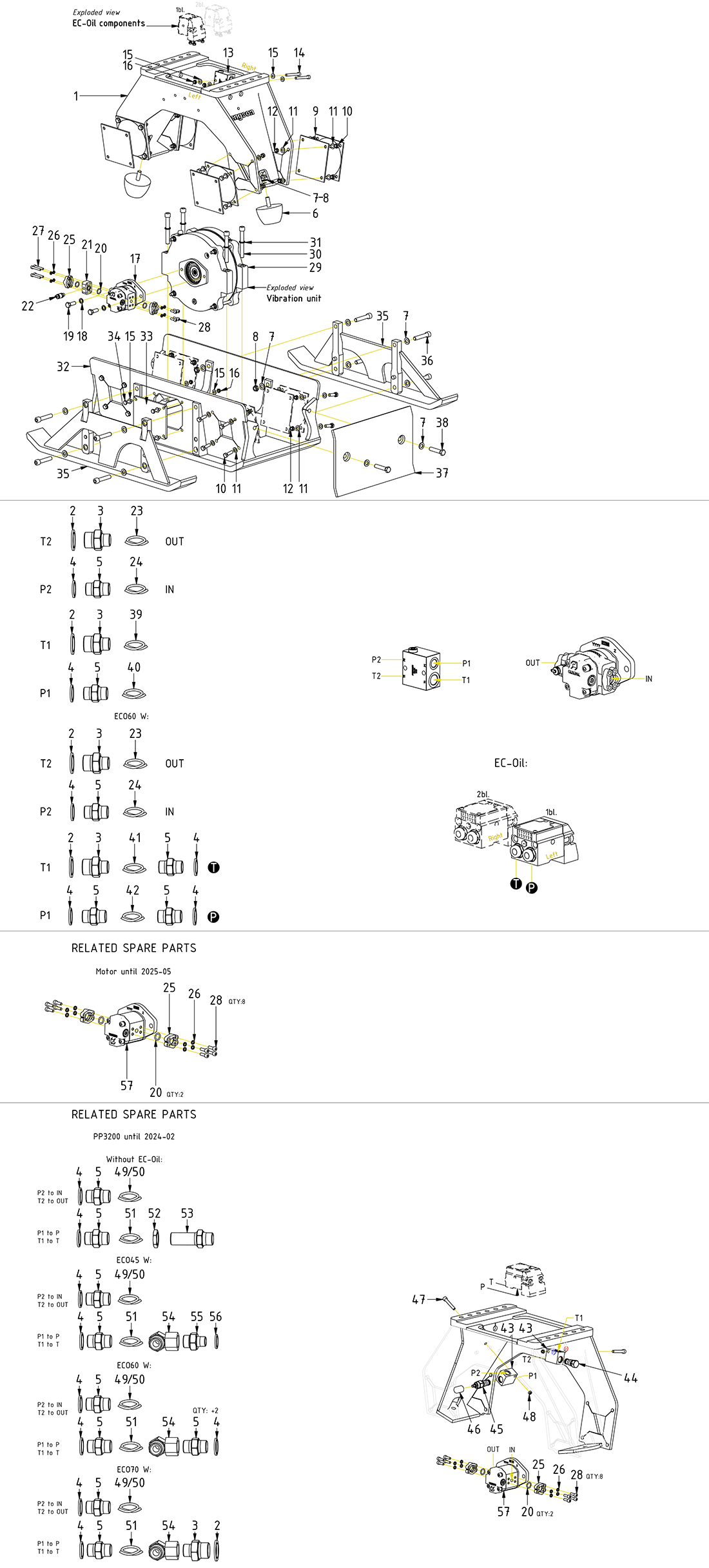

Pos.
Item no.
Description
Replaced by
Info
2
710706
Seal washer GBR12 3/4"
2
Choose
3
710109
adapter 135-08-12
2
Choose
4
710704
Seal washer GBR08 1/2"
4
Choose
5
710108
adapter 136-08-08
4
Choose
6
640303
DAMPER TP120/75 M16X45 65°
2
Choose
7
611009
washer BRB FZB 17x30x3
18
Choose
8
610926
nut M6M M16 lock
8
Choose
9
640301
rubber damper PP350&600
4
Choose
10
610476
screw M6S12x40 8.8 FZB
32
Choose
11
611007
washer BRB FZB 13x24x2,5
72
Choose
12
610924
nut M6M M12 lock
36
Choose
13
7001904
Block-Flow block PP3200 30l/min
1
Choose
14
610463
screw MC6S 10x80 12.9 untreated ISO4762
2
Choose
15
611006
washer BRB FZB 10,5x22x2
12
Choose
16
610923
nut M6M M10 lock
6
Choose
17
7000475
hydraulic motor PP3200 14 cm3 chock
1
Choose
18
6000284
screw M6S M14x40 10,9 ISO4017
2
Choose
20
7001921
Hose
1
Choose
21
7001920
Hose
1
Choose
22
711085
flange half 3/4" 3000PSI
4
Choose
23
611041
washer NL 10mm 153105
8
Choose
24
612018
screw MC6S 10x30 12.9 Geomet ISO4762
8
Choose
25
1011618
Generator PP3200 (with motor)
1
Choose
26
6000154
screw MC6S 16x130 12.9 ZFSHL ISO4762
4
Choose
27
611044
washer NL 16mm 153108
4
Choose
28
1013812
bottom part PP3200
1
Choose
30
610145
screw M6S 10x40 8.8
4
Choose
31
1013826
extension PP3200
2
Choose
32
610528
screw MC6S 16x80 12.9 untreated ISO4762
8
Choose
33
1011625
Blade PP3200
1
Choose
34
6000008
screw M6S 16x75 8.8 FZB
2
Choose
35
7001919
Hose
1
Choose
36
7001918
Hose
1
Choose
37
730282
Valve block DAV/S2
2
Choose
38
730279
non-return valve CXFA/XAN
1
Choose
39
730280
flow limiter FCDB-LAN 28LPM
1
Choose
40
730281
Protective cover 991-001
1
Choose
41
610460
screw MC6S 10x60 12.9 untreated ISO4762
2
Choose
43
740810
Hose motor - Pressure PP3200
1
Choose
44
740808
hose Pulse 3200 RM-08 kl. 600mm 4511-08-08/4526-12-08
1
Choose
45
740809
hose Pulse 3200 RM-08 kl. 330mm 4511-08-08/4512-08-08
2
Choose
46
710254
Bulkhead adapter nut 1270-08
2
Choose
47
710263
Bulkhead adapter extended 2011-08
2
Choose
48
710217
adapter angle 030090-08-08
2
Choose
49
710122
adapter 135-06-08
2
Choose
50
710703
Seal washer GBR06 3/8"
2
Choose
