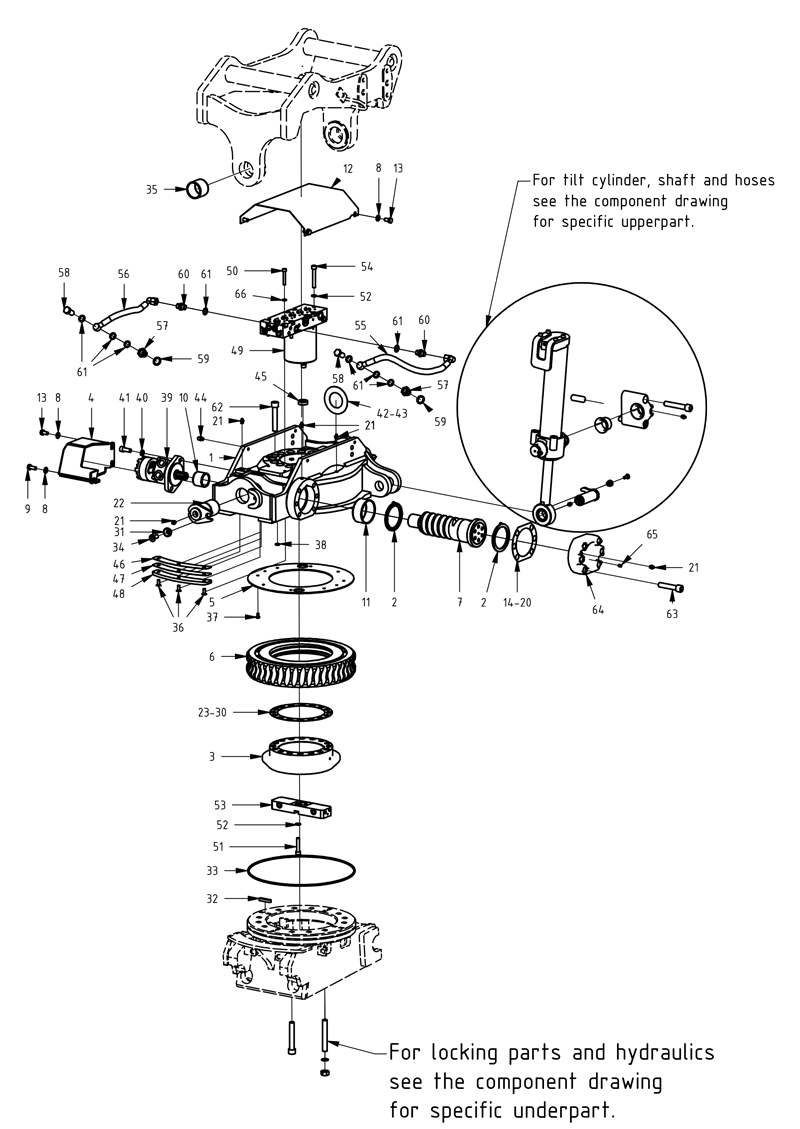

Huvudkomponenter EC15B

Pos.Item no.DescriptionReplaced byNumber

21010758axial washer with ear EC10,15,20,209,214,2192

3201827 centre ring - EC15 - ska shimsas, as of 05-01-011

Choose

4300917 Motor cover EC151

Choose

5300775 wear washer EC151

Choose

6100342 worm wheel EC151

Choose

7200203 worm screw EC151

Choose

8611006 washer BRB FZB 10,5x22x27

Choose

9610142 screw M6S 10x25 8.8 FZB1

Choose

10630101 bushing WB802 45/50x401

Choose

11630103 bushing WB802 80/85x401

Choose

12300914 protective cover valve block EC151

Choose

13610141 screw M6S 10x20 8.8 FZB6

Choose

141001639 shims End lock EC10/EC15/EC20 0,3mm1

Choose

15405126 shims End lock EC10/EC15/EC20 0,4mm1

Choose

16405127 shims End lock EC10/EC15/EC20 0,5mm1

Choose

17405675shims End lock EC10/EC15/EC20 0,6mm1

18405676shims End lock EC10/EC15/EC20 0,7mm1

191001638shims End lock EC10/EC15/EC20 0,8mm1

201001712shims End lock EC10/EC15/EC20 0,9mm1

21711403 lube nipple 1/8 straight13

Choose

22302828 tilt axle EC15 hardened2

Choose

23202052 shims centre ring - EC15 - 0,4mm1

Choose

24202053 shims centre ring - EC15 - 0,5mm1

Choose

25202626 shims centre ring - EC15 - 0,6mm1

Choose

26201399 shims centre ring - EC15 - 0,7mm1

Choose

27201401shims centre ring - EC15 - 0,8mm1

28201402shims centre ring - EC15 - 0,9mm1

29201364 shims centre ring - EC15 - 1,0mm1

Choose

30201403 shims centre ring - EC15 - 1,1mm1

Choose

311008243 spacer M12 L15 countersunk2

Choose

32650102 Feather key EC05B,EC15, EC20,EC214,EC219,EC226 (550480)4

Choose

33710940 O-ring NBR70 quick hitch 151

Choose

34610668 screw MF6S 12x30 10,9 FZB10.9 Untreated DIN 79912

Choose

35630309 tilt bushing EC15 WB802 55/60x502

Choose

36610634 screw MF6S 8x20 10.9 untreated5

Choose

37610108 screw M6S 6x12 8.8 FZB8

Choose

38710910 O-ring 10,77x2,62 NBR701

Choose

39720112 hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC151

Choose

40611042 washer NL 12mm2

Choose

41610474screw MC6S 12x30 12.9 untreated ISO47622

42650505 shims tilt axle - EC15 - spring steel 56x100x0.50,5 mm1

Choose

43650506 shims tilt axle - EC15 - spring steel 56x100x11 mm1

Choose

44711409 lube nipple 1/8" 90°1

Choose

45650406 Plug 1" rörgäng konisk DIN 9062

Choose

461008262 shims break support - EC15B, EC20B - 0,1mmIf needed1

Choose

471013256 shims break support - EC15B, EC20B - 0,3mmIf needed1

Choose

481006878 Platta break support - EC15B, EC20B1

Choose

1023911 valve block-swivel 5v & 6-ch for Slip ring

Choose

50610439 screw MC6S 8x50H 8015993

Choose

51610457screw MC6S 10x50 12.9 untreated ISO47622

52611041 washer NL 10mm 1531053

Choose

1024045 connection block 6-ch EC15,EC226-for Slip ring

Choose

54610461 screw MC6S 10x70 12.9 untreated ISO47621

Choose

55740622 hose hydraulic motor - EC15 - 5 ventiler, long1

Choose

56740621 hose hydraulic motor - EC15 - 5 ventiler, short1

Choose

57710233 adapter 234-08-062

Choose

58710272 banjo bolt 4451-062

Choose

59710704 Seal washer GBR08 1/2"2

Choose

60710106 adapter 136-06-062

Choose

61710703 Seal washer GBR06 3/8"8

Choose

62610580screw MC6S 16x90 skalleØ26,5 14.99 untreated ISO476216

63610528 screw MC6S 16x80 12.9 untreated ISO47626

Choose

641014716 End lock EC10/EC15/EC20 outer shim castReplaces 303270 From 13061

Choose

65711527 Plug Din 906 (M8x1) electrogalvanized1

Choose

66611040 washer NL 8mm 1531043

Choose
