Number of hits 50
Pos.Item no.DescriptionReplaced byNumber
11011925rotator frame 10B yellow1
21010758axial washer with ear EC10,15,20,209,214,2192
3302840centre ring - EC10 - ska shimsas, as of 05-01-011
Choose
Motor cover EC104100021Motor cover EC101
Choose
5400325wear washer EC101
Choose
6300862worm wheel EC10 M141
Choose
7300080worm screw EC101
Choose
8611006washer BRB FZB 10,5x22x28
Choose
9610143screw M6S 10x30 8.8 FZB2
Choose
10610142screw M6S 10x25 8.8 FZB2
Choose
11630101bushing WB802 45/50x401
Choose
12630103bushing WB802 80/85x401
Choose
13302434protective cover valve block EC10 (höjd 85mm)1
Choose
14610141screw M6S 10x20 8.8 FZB6
Choose
15610528screw MC6S 16x80 12.9 untreated ISO47626
Choose
161001639shims End lock EC10/EC15/EC20 0,3mm1
Choose
17405126shims End lock EC10/EC15/EC20 0,4mm1
Choose
18405127shims End lock EC10/EC15/EC20 0,5mm1
Choose
23711403lube nipple 1/8 straight15
Choose
24302826tilt axle EC10 hardened2
Choose
25202049shims centre ring - EC10 - 0,4mm1
Choose
26202050shims centre ring - EC10 - 0,5mm1
Choose
27201395shims centre ring - EC10 - 0,7mm1
Choose
29201397shims centre ring - EC10 - 0,9mm1
30201363shims centre ring - EC10 - 1,0mm1
Choose
31201398shims centre ring - EC10 - 1,1mm1
Choose
spacer M12 L15 countersunk321008243spacer M12 L15 countersunk2
Choose
Feather key 10x8x45 EC10, EC02, EC209 55047534650101Feather key 10x8x45 EC10, EC02, EC209 5504754
Choose
35710908O-ring 319,3x5,7 - quick hitch EC10/EC219/EC2261
Choose
36710906O-ring centre ring - EC10-1
Choose
screw MF6S 12x30 10,9 FZB37610668screw MF6S 12x30 10,9 FZB2
Choose
38630308tilt bushing EC10 WB802 50/55x502
Choose
39610108screw M6S 6x12 8.8 FZB4
Choose
O-ring 10,77x2,62 NBR7040710910O-ring 10,77x2,62 NBR701
Choose
hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC1541720112hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC151
Choose
42611042washer NL 12mm2
Choose
shims tilt axle - EC10 - spring steel 51x80x0.544650507shims tilt axle - EC10 - spring steel 51x80x0.50,5 mm1
Choose
shims tilt axle - EC10 - spring steel 51x80x145650508shims tilt axle - EC10 - spring steel 51x80x11 mm1
Choose
46405452valve block bracket EC10 6-channel1
Choose
49710703Seal washer GBR06 3/8"2
Choose
50710106adapter 136-06-061
Choose
washer NL 10mm 15310551611041washer NL 10mm 1531052
Choose
52610439screw MC6S 8x50H 8015993
Choose
53611040washer NL 8mm 1531043
Choose
54710242Bulkhead adapter 1260-06-321
Choose
55710122adapter 135-06-081
Choose
56710704Seal washer GBR08 1/2"1
Choose
57710157adapter 401-06-08 90°401-06-081
Choose
581014716End lock EC10/EC15/EC20 outer shim castReplaces 303270 From 13061
Choose
59711527Plug Din 906 (M8x1) electrogalvanized1
Choose

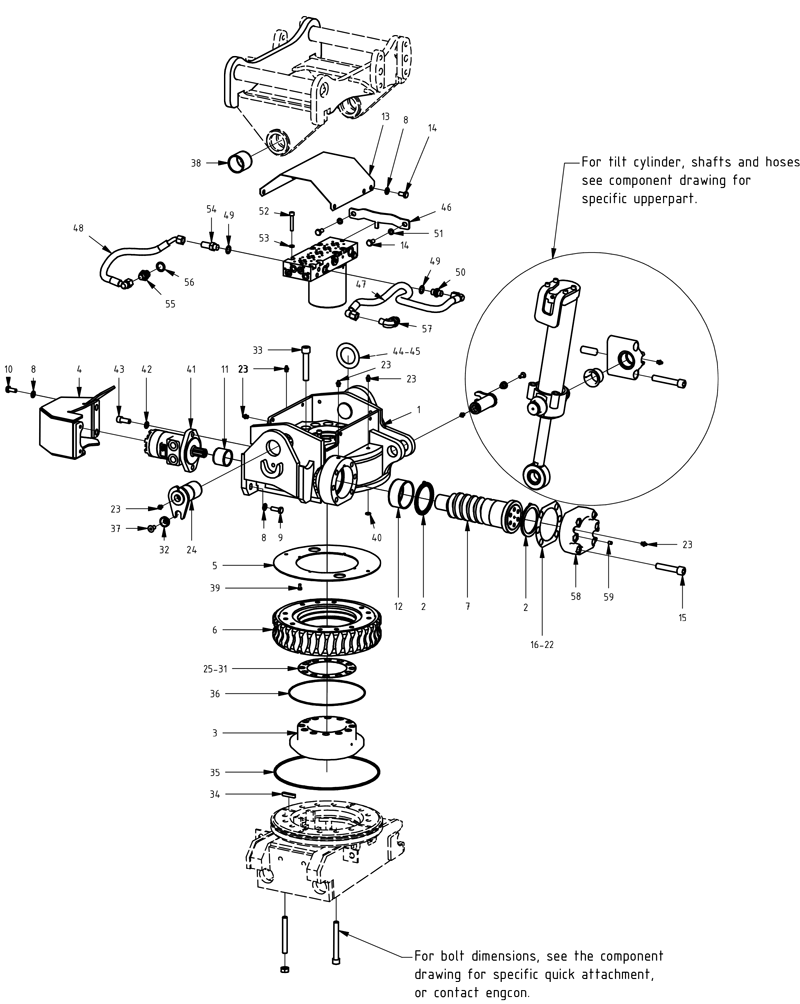

Start > engcon för grävmaskiner > Tiltrotators > EC10 > B-series > Rotator frame > Main components
