Sort
Item no.
Description
Search in results
Number of hits 35

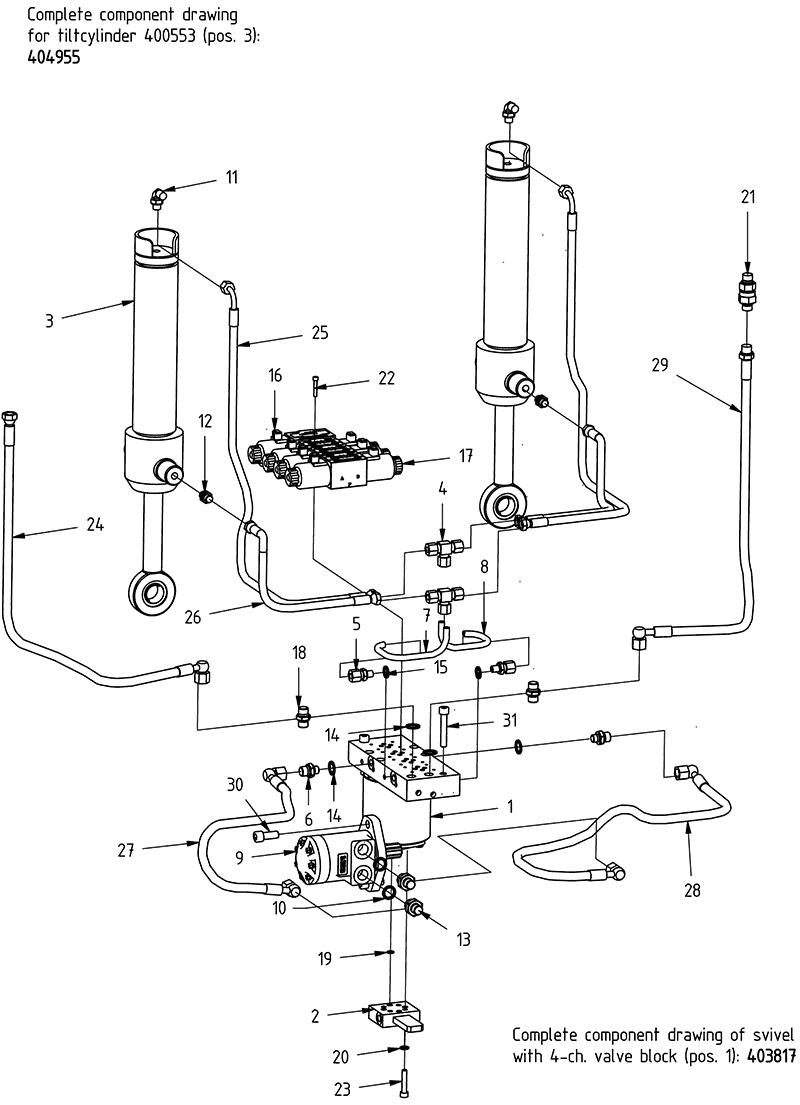

Pos.
Item no.
Description
Replaced by
Number
1
200013K
valve block-swivel 4-channel
4-ch.
1
2
400068
connection block 4-channel EC10 yellow zinc passivated
1
Choose
3
400553
tilt cylinder EC10-NOT cast yoke
2
Choose
4
710323
cutting ring connection T10L
2
Choose
710350
cutting ring EMB 7012210100
Choose
710194
Skärringsmutter M10L
Choose
5
710343
cutting ring fitting XGE10LR ED
2
Choose
710350
cutting ring EMB 7012210100
Choose
710194
Skärringsmutter M10L
Choose
6
710118
adapter 135-04-06
132-04-06
2
Choose
7
301703
tilt pipe EC10 right
EC10
1
8
301702
tilt pipe EC10 left
EC10
1
9
720112
hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15
Charlynn 131cc T-motor
1
Choose
10
710704
Seal washer GBR08 1/2"
GBR-08
2
Choose
11
710151
adapter 401-04-04 90°
237-04-04
2
Choose
12
710104
Adapter 136-04-04
132-04-04
2
710135
adapter 138-04-29 ( compact 136-04-04 )
Choose
13
710122
adapter 135-06-08
132-06-08
2
Choose
14
710703
Seal washer GBR06 3/8"
GBR-06
4
Choose
15
710702
Seal washer GBR04 1/4"
GBR-04
2
Choose
16
730104
directional valve NG6 lock 24V
24V lock
1
Choose
730102
directional valve lock 12V.4D01-3146-0601-B1-GOR-JT
Choose
17
730103
directional valve 24V
24V bidirectional
3
Choose
730101
directional valve 12V. 4D01-3203-0302-B1-GOR-JT
Choose
730190
directional valve prop 12V engcon AMP
Choose
18
710106
adapter 136-06-06
132-06-06
2
Choose
19
710901
O-ring 9,25x1,78 GREEN Viton 90 shore NG6
9,25x1,78
4
Choose
20
611023
washer FBB FZB 8,1x14,8x2
8,1x14,8x2
4
Choose
21
730212
non-return valve NRSM3/8
NRSM3/8
1
Choose
22
610403
screw MC6S 5x30 12.9 untreated ISO4762
12,9 Untreated ISO 4762
16
Choose
24
740402
hose feed - EC10 - block
1
Choose
27
740106
hose hydraulic motor - EC10 - short
1
Choose
28
740107
hose hydraulic motor - EC10 - long
1
Choose
29
740403
hose feed - EC10 - block
1
Choose
31
610460
screw MC6S 10x60 12.9 untreated ISO4762
12,9 Untreated ISO 4762
2
Choose
