Huvudkomponenter

Pos.Item no.DescriptionReplaced byNumber

11062295 Rotator frame 219 V5 EngconYellow complete(POS.2-3 incl.)1

Choose

2630103 bushing WB802 80/85x401

Choose

3630102 bushing WB802 45/50x501

Choose

41016409 worm wheel EC2191

Choose

57001662 O-ring 225x5 NBR 90 shore EC219 worm wheel1

Choose

61077005 Bearing ring EC219 V2(Only compatible with 8x25)1

Choose

71079941 Axial washer with ear EC209/214/219Face grooves toward worm screw2

Choose

81016408 worm screw EC214 , EC2191

Choose

91062693 Magnet Spacer Worm ScrewLoxeal 83-52. Torque: 20Nm1

Choose

101034434 Shim kit End lock EC209/EC214/EC2191

Choose

111065789 End lock EC209S/EC214S/EC219S Cast(POS.12 incl.)1

Choose

121063616 Seal R09-F 20x27.5x3.21

Choose

131063372 End lock protection plate EC209S/EC214S/EC219S1

Choose

146000147 screw MC6S 12x90 12.9 ZFSHL ISO4762Torque: 136Nm8

Choose

151016557 End lock EC209/EC214/EC219 ePS1

Choose

16611514 screw MC6S 12x100 12.9 Geomet ISO4762Torque: 136Nm8

Choose

171065370 Spacer-end lock EC209/EC214/EC2191

Choose

187000485 O-ring 27x5 NBR70 End lock ePS1

Choose

191041613 coverplate End lock EC2331

Choose

20611039 washer NL 6mm2

Choose

21611513 screw MC6S 6x20 A4 stainless ISO47623

Choose

221033565 Protection sensor-ePS, SVAB MACS-V2-EC209,EC214,EC219For ePS11

Choose

23710157 adapter 401-06-08 90°2

Choose

247000790 hosePart of quick hitch1

Choose

257000789 hosePart of quick hitch1

Choose

267000724 hosePart of quick hitch1

Choose

277001404 Hose1

Choose

287000025hose motor - EC219/EC226 - ECHF long1

297000026 hose motor - EC219/EC226 - ECHF short1

Choose

307000920 O-ring 82,22x2,62 NBR 70 shore1

Choose

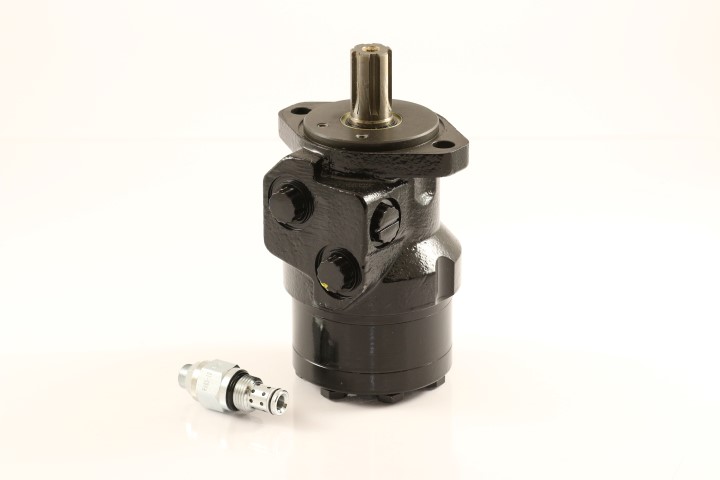

311022290hydraulic motor White 160cc EC219/EC20B as of 2012-05 + chock valve(POS.32-33 incl.)1

327001806 Hydraulic motor White 160cc1

Choose

337001647 Relief valve HydraSpecma White 160/200cc fixed 200barTorque: 77Nm. Assy. before motor1

Choose

34720112 hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15Option1

Choose

35611042 washer NL 12mmQTY: 8 part of top part10

Choose

366000150 screw MC6S 12x35 12.9 ZFSHL ISO4762Torque: 136Nm2

Choose

371078840 Screw TX45 8x25 10,9 FZBTorque: 34Nm Tighten in cross pattern12

Choose

38712216 extender 10mm R1/8" lube kit1

Choose

39711409 lube nipple 1/8" 90°1

Choose

40711503 Plug VSTIR18EDQTY: 2 for EC219S1

Choose

421047832 spacer central lubrication QSM EC214,EC219,EC2261

Choose

431031517 Attachment central lubrication + DC2-ECHF1

Choose

441021135 lube kit EC219 version 31

Choose

45610403 screw MC6S 5x30 12.9 untreated ISO47622

Choose

46610404 screw MC6S 5x35 12.9 untreated ISO47621

Choose

47611041 washer NL 10mm 153105QTY: 7 for ECHF2

Choose

48612020 screw MC6S 10x40 12.9 DacrometQTY: 4 for ECHF. Torque: 79Nm4

Choose

491015672 cylindrical pin CPK ø10x35 m62

Choose

501024824 valve plate -ECHF-EC219, EC2261

Choose

511027386 valve block-swivel 7-channel ECHF1

Choose

52710703 Seal washer GBR06 3/8"5

Choose

53710131 adapter 236-06-063

Choose

54710242 Bulkhead adapter 1260-06-321

Choose

55710262 Bulkhead adapter extended 2011-061

Choose

56611040 washer NL 8mm 1531043

Choose

57610439 screw MC6S 8x50H 8015993

Choose

58611515 screw MC6S 10x50 12.9 Geomet ISO47623

Choose

591030298 Slip ring-ECHF-DTM/ PlugFor QS. See "Slip rings"1

Choose

601026200 coverplate Slip ring QSM / ECHF v.21

Choose

61610594 screw MC6S 5x10 12.9 untreated ISO47624

Choose

62712422 O-ring 6,07x1,78 NBR702

Choose

63710973 O-ring 12,42x1,78 NBR 70 shore4

Choose

64710912 O-ring 15,6x1,78 NBR701

Choose

651028391 connection block under ECHF v.3Guide with spring pin from swivel1

Choose

671016393 clamping half EC219/EC226 completePart of top part4

Choose

686000155 screw MC6S 12x55 12.9 ZFSHL ISO4762Part of top part. Torque: 136Nm8

Choose

69650102 Feather key EC05B,EC15, EC20,EC214,EC219,EC226 (550480)Part of quick hitch6

Choose

70710908 O-ring 319,3x5,7 - quick hitch EC10/EC219/EC226Part of quick hitch1

Choose

71610556 screw MC6S 20x90 12.9 untreated ISO4762Part of quick hitch. Torque: 649Nm12

Choose

72650408 RP M36x2 Din 908 FZB6

Choose

731055262 shims break support - EC209 - 0,1mm1

Choose

741055260 shims break support - EC209 - 0,3mm1

Choose

751055258 Plate break support - EC2091

Choose

766000017 screw MC6S 6x16 12.9 ZFSHL2

Choose

781011515 valve plate -EC219/EC26/EC2261

Choose

791018052 Attachment central lubrication EC219-EC2261

Choose

80610405 screw MC6S 5x40 12.9 untreated ISO47621

Choose

811029973 Attachment angle sensor-EC219,EC226-5V/6CH-swivel1

Choose

82710106 adapter 136-06-062

Choose

831030297 valve block-swivel 5v & 6-ch Slip ring-DTM1

Choose

84610460 screw MC6S 10x60 12.9 untreated ISO47621

Choose

85710901 O-ring 9,25x1,78 GREEN Viton 90 shore NG66

Choose

87742635 hose motor - EC219 - long - version 3 Rotated motor1

Choose

88742634 hose motor - EC219 - short - version 3 Rotated motor1

Choose

91612201 screw TX40 M8x30 FZB 10.+Torque: 34Nm. Used with 106192913

Choose

921016415End lock EC209/EC214/EC219Replaced by POS.15 from 2022-01 MACS: Replaces 1028628 from 16-101

931016414 wear washer EC219Used until 2017-041

Choose

94610108 screw M6S 6x12 8.8 FZBUsed until 2017-048

Choose

95710704 Seal washer GBR08 1/2"Used until 2013-031

Choose

96710122 adapter 135-06-08Used until 2013-031

Choose

97710216 adapter angle 030090-06-06Used until 2013-031

Choose

98710510 adapter DSVW-15 LR HFX banjoUsed until 2013-011

Choose

1006000047 Magnet Neodym35 8x5x3mm SVAB MACSLoctite 415. Harden 1 minute1

Choose

1011043698Inductive sensor M8 PNP NO 4mm - SVAB MACSDistance 3mm. Nut torque: 3Nm1

103650411 Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS1

Choose
