Number of hits 21

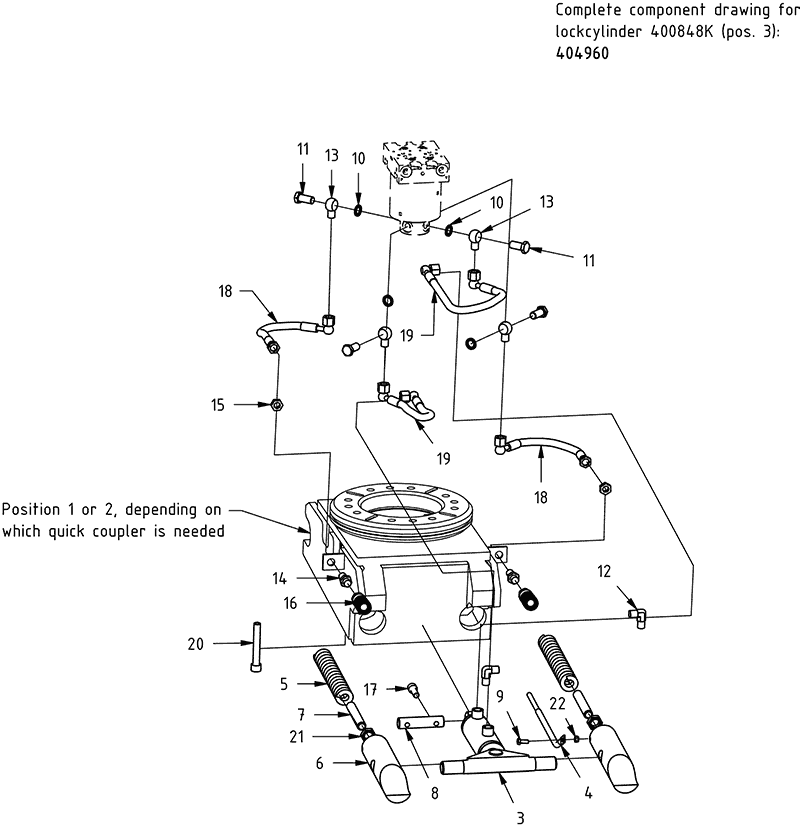

Pos.
Item no.
Description
Replaced by
Number
100309
quick hitch S40 EC05
2
100542
quick hitch S45 EC05
1
3
400848
locking cylinder S45/S50 complete with yoke
1
Choose
4
401619
Indicator pin S45,S50,S60
1
Choose
5
640101
Spring blue 32x203
2
Choose
6
302332
lock wedge S45&S50 hardened as of 0402
2
Choose
7
400674
guide pin 12,14,16
2
Choose
9
610109
screw M6S 6x16 10.9 FZB
8,8 Zinc plated ISO 4017
1
Choose
10
710702
Seal washer GBR04 1/4"
GBR-04
4
Choose
11
710271
banjo bolt 4451-04
4916-04
4
Choose
12
710177
adapter 822-04-04
537-04-04
2
Choose
13
710145
adapter 830-04-04
144-04
4
Choose
14
710240
Bulkhead adapter 1260-04-04
1265-04-04
2
Choose
15
710250
Bulkhead adapter nut 1270-04
1275-04
2
Choose
16
790111
Quick coupling 1/4" male 2520
2
Choose
17
610452
screw MC6S 10x30 12.9 untreated ISO4762
12,9 Untreated ISO 4762
2
18
740103
hose extra function - EC10
Extra
2
Choose
19
740105
hose lock - EC10 - left
Lock
2
Choose
20
610484
screw MC6S 12x80 12.9 untreated ISO4762
12,9 Untreated ISO 4762
12
21
610947
nut M16 low 147524
DIN 439B Låg
2
Choose
22
610921
nut M6M M6 lock
DIN 985
1
Choose
