Sort
Item no.
Description
Search in results
Number of hits 58

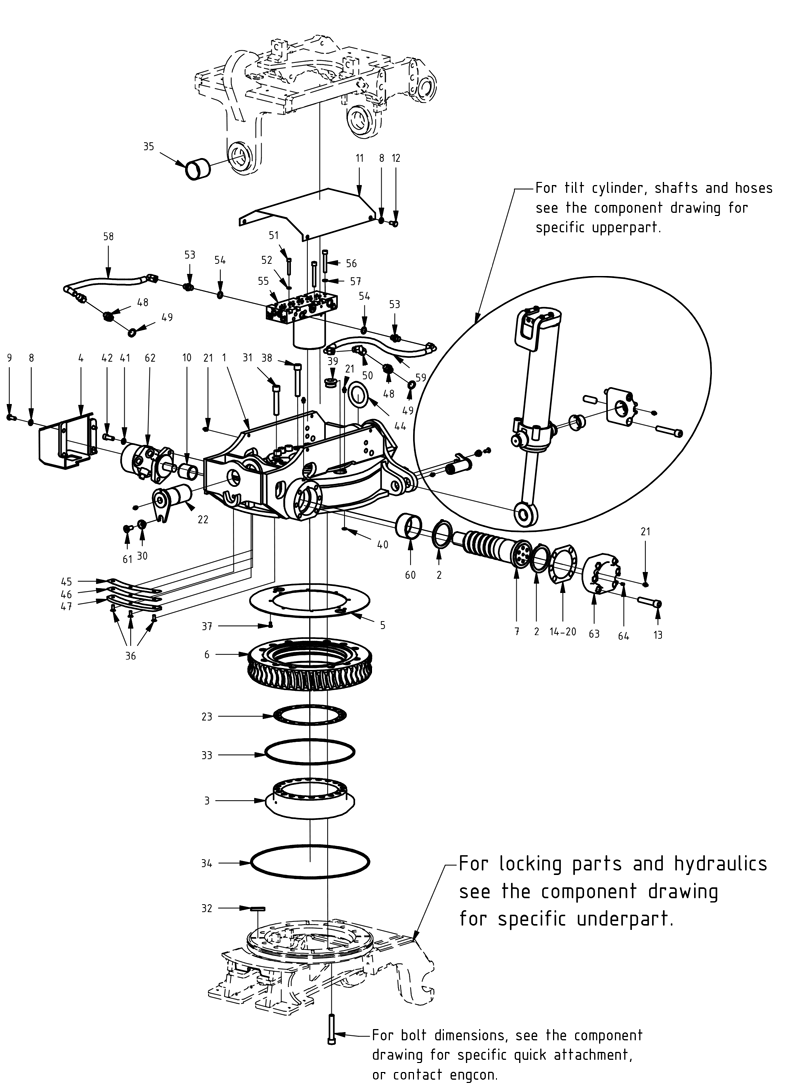

Pos.
Item no.
Description
Replaced by
Number
1
101277
rotator frame 20HD yellow
1
Choose
2
1010758
axial washer with ear EC10,15,20,209,214,219
2
3
302807
centre ring - EC20 - ska shimsas, as of 05-01-01
1
Choose
4
100010
Motor cover EC20
1
Choose
5
400310
wear washer EC20
1
Choose
6
300863
worm wheel EC20 M20
1
Choose
7
300030
worm screw EC20
1
Choose
8
611006
washer BRB FZB 10,5x22x2
8
Choose
9
610142
screw M6S 10x25 8.8 FZB
4
Choose
10
630102
bushing WB802 45/50x50
1
Choose
11
300118
protective cover valve block EC20
1
Choose
12
610141
screw M6S 10x20 8.8 FZB
4
Choose
13
610528
screw MC6S 16x80 12.9 untreated ISO4762
6
Choose
14
1001639
shims End lock EC10/EC15/EC20 0,3mm
1
Choose
15
405126
shims End lock EC10/EC15/EC20 0,4mm
1
Choose
16
405127
shims End lock EC10/EC15/EC20 0,5mm
1
Choose
21
711403
lube nipple 1/8 straight
15
Choose
22
302830
tilt axle EC20 hardened
2
Choose
23
202055
shims centre ring - EC20 - 0,4mm
1
Choose
24
202056
shims centre ring - EC20 - 0,5mm
1
Choose
25
201793
shims centre ring - EC20 - 0,7mm
1
Choose
26
201405
shims centre ring - EC20 - 0,8mm
1
28
201365
shims centre ring - EC20 - 1,0mm
1
Choose
23
201407
shims centre ring - EC20 - 1,1mm
1
Choose
30
1008243
spacer M12 L15 countersunk
2
Choose
32
650102
Feather key EC05B,EC15, EC20,EC214,EC219,EC226 (550480)
4
Choose
33
710908
O-ring 319,3x5,7 - quick hitch EC10/EC219/EC226
1
Choose
34
710909
O-ring 419,3x5,7 quick hitch EC20
1
Choose
35
630301
bushing WB802 60/65x60
2
Choose
36
610634
screw MF6S 8x20 10.9 untreated
5
Choose
37
610108
screw M6S 6x12 8.8 FZB
8
Choose
650408
RP M36x2 Din 908 FZB
Choose
40
710910
O-ring 10,77x2,62 NBR70
1
Choose
41
611042
washer NL 12mm
2
Choose
43
650501
shims tilt axle - EC20 - spring steel 61x95x0,5
0,5 mm
1
Choose
44
650502
shims tilt axle - EC20 - spring steel 61x95x1
1 mm
1
Choose
45
1008262
shims break support - EC15B, EC20B - 0,1mm
If needed
1
Choose
46
1013256
shims break support - EC15B, EC20B - 0,3mm
If needed
1
Choose
47
1006878
Platta break support - EC15B, EC20B
1
Choose
48
710122
adapter 135-06-08
2
Choose
49
710704
Seal washer GBR08 1/2"
2
Choose
50
710216
adapter angle 030090-06-06
1
Choose
51
610439
screw MC6S 8x50H 801599
2
Choose
52
611040
washer NL 8mm 153104
2
Choose
53
710106
adapter 136-06-06
2
Choose
54
710703
Seal washer GBR06 3/8"
2
Choose
1023911
valve block-swivel 5v & 6-ch for Slip ring
Choose
56
610461
screw MC6S 10x70 12.9 untreated ISO4762
1
Choose
57
611041
washer NL 10mm 153105
1
Choose
58
740240
hose hydraulic motor - EC20 - White & Parker, cut length 410
RM06 4509-06-06/4509-06-06 KL410
1
Choose
59
740208
hose
RM06 4512-06-06/4512-06-06 KL500
1
Choose
60
630105
bushing WB802 80/85x50
630103 before 20090801
1
Choose
61
610668
screw MF6S 12x30 10,9 FZB
10.9 Untreated DIN 7991
2
Choose
62
720134
hydraulic motor White 160cc EC219/EC20B without choke valve
1
7001806
Hydraulic motor White 160cc
Choose
7001647
Relief valve HydraSpecma White 160/200cc fixed 200bar
Choose
63
1014716
End lock EC10/EC15/EC20 outer shim cast
Replaces 303270 From 1306
1
Choose
64
711527
Plug Din 906 (M8x1) electrogalvanized
1
Choose
