Sort
Pos.
Item no.
Description
Search in results
Number of hits 35

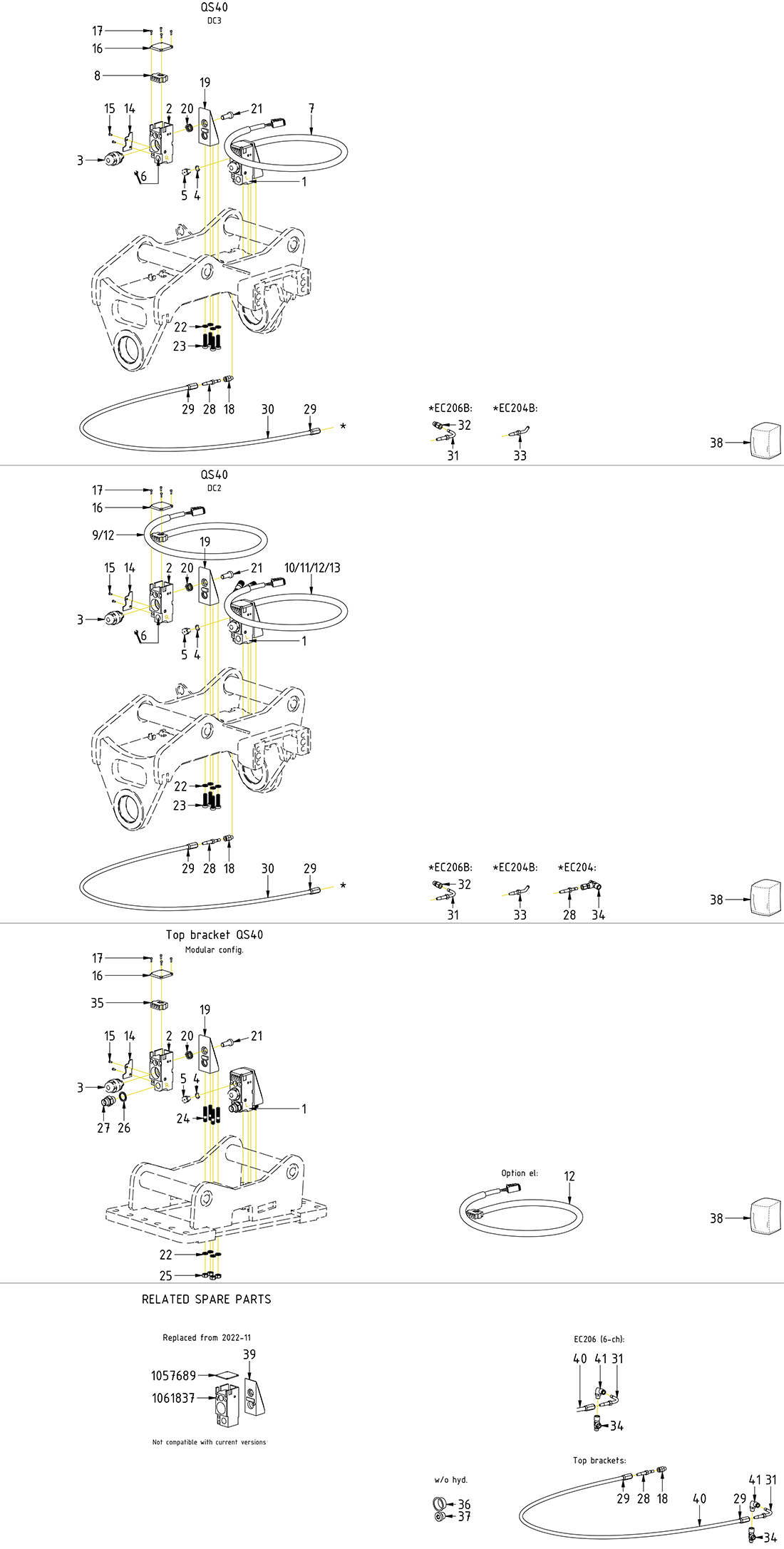

Pos.
Item no.
Description
Extra info
Qty.
1
1069401
Block ECO40 W-top bracket 1hy 1cl V2
(POS.3-5 incl.)
1
Choose
2
1069402
Block ECO40 W-top bracket 1hy V2
(POS.3 incl.)
1
3
1028873
Coupling ECO45/50 3/8" male - top bracket V2
Torque: 60Nm
2
Choose
4
6000065
washer koppar 14x10x0,9
1
Choose
5
810505
Traktorsmörjnippel 1/8" stainless
Loxeal 58-12. Torque: 30Nm
1
Choose
7
8002288
Power plug ECO40 W Top QS40-ePS-TS
(R.)
1
Choose
8
8002699
Power plug ECO40 W Top QS40 Left
(L.)
1
Choose
9
8002454
Power plug ECO40 W Top QS40
For EC204B ePS2 (L.)
1
Choose
10
1057841
power plug ECO40 W-top bracket-DT-EC206
QTY: 1 for EC206B ePS2 (R.)
2
Choose
11
8001885
Power plug ECO40 W Top QS40-ePS-TS
For EC206B ePS2 (L.)
1
Choose
12
1069398
Cover plate Power plug-ECO40W-top bracket V2
2
Choose
13
6000325
Screw MC6S 2.5x8 8.8 FZB ISO4762
8
Choose
14
790185
Coupling straight Push-In Ø6mm M8x1
Loxeal 83-52
1
Choose
15
1069400
Attachment block ECO40 W-top bracket-with pin V2
2
Choose
16
6000324
Pressure spring Dy=18 Dt=2 L0=15 Lst max=8,5
4
Choose
17
6000323
Screw MLC6S 10x25 8.8 FZB
Loxeal 83-52
2
Choose
18
611040
washer NL 8mm 153104
8
Choose
19
612201
screw TX40 M8x30 FZB 10.+
Torque: 34Nm
8
Choose
20
611185
Stud bolt M8x30
Loxeal 83-52
8
Choose
21
611187
nut steel M8 DIN 934
8
Choose
22
710703
Seal washer GBR06 3/8"
2
Choose
23
710106
adapter 136-06-06
2
Choose
24
7001521
Tube sleeve straight Push-In - 20mm
2
Choose
25
7000585
screw sleeve HT-hose Ø8,6mm
2
Choose
26
7001303
hose loose - HT 8,6x4
EC206B: 1030mm. EC204B: 420mm. EC204: 380mm
1
Choose
27
7000318
Rörstuds 90° Push-In
1
Choose
28
7001721
Adapter coupling straight R1/8"
(Replaces the plug on motor block)
1
Choose
29
7001980
Tube sleeve 45° Push-In 15mm
1
Choose
30
7001309
L-adapter 1/8" 1x utv / 2x inv
1
31
1063916
Power plug ECO40W-Plug top bracket
2
Choose
32
7000152
Protection Plug TECO 45/50 hydraulic
2
Choose
33
711504
Plug VSTIR38ED
2
Choose
34
1062517
Transport Protection ECO40 TECO
Part of make up
1
Choose
36
7001303
hose loose - HT 8,6x4
EC206: 1100mm. Top bracket: 2000mm
1
Choose
37
790184
Push-in Coupling 90° R1/8" SPWE06KR lube kit
1
Choose
