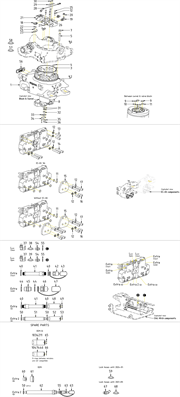

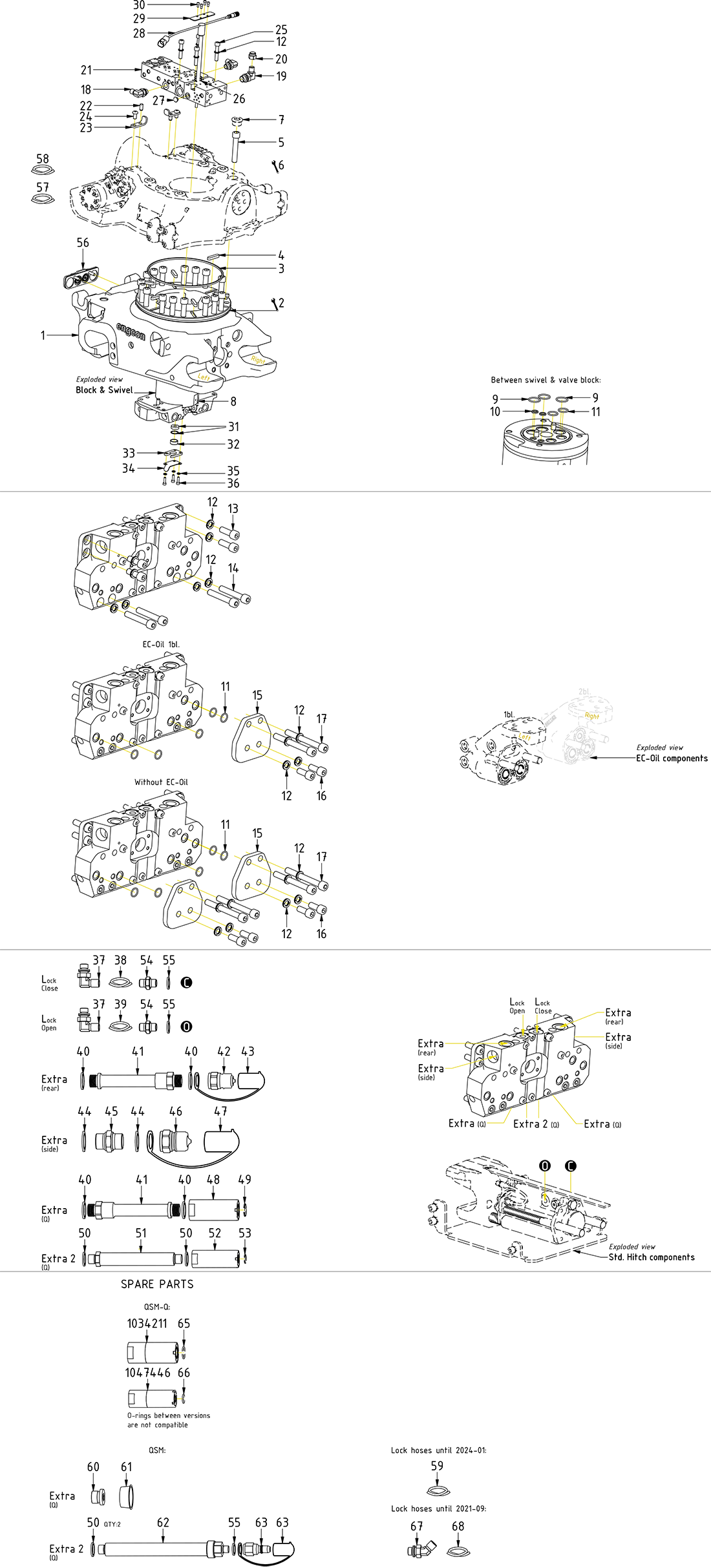

QSM60

Pos.Item no.DescriptionExtra infoQty.

11062631Quick hitch QSM60 EC214 V2 cast1

3712424 O-ring 249,3x5,7 NBR70 - quick hitch EC2141

Choose

4650102 Feather key EC05B,EC15, EC20,EC214,EC219,EC226 (550480)6

Choose

56000151 screw MC6S 16x90 12.9 ZFSHL ISO4762Torque: 333Nm18

Choose

7650410 Pipe Plug RP M30x1,5 Din 908 FZBPart of rotator frame6

Choose

81050600 Swivel 7-channel QSM with connection block QSM60 iron1

Choose

9710977 O-ring 17,17x1,78 NBR 70 shore3

Choose

107000579 O-ring square 7,66x1,68 nbr70 NG42

Choose

11710975 O-ring 14x1,78 NBR 70 shore7

Choose

12611041 washer NL 10mm 153105QTY: 8 without EC-Oil20

Choose

13612018 screw MC6S 10x30 12.9 Geomet ISO47624

Choose

14611503 screw MC6S 10x60 12.9 Geomet ISO47624

Choose

151044083 coverplate ECO under QSM602

Choose

166000195 screw MC6S 10x25 12.9 ZFSHL ISO4762Torque: 79Nm4

Choose

176000153 screw MC6S 10x90 12.9 ZFSHL ISO4762Torque: 79Nm4

Choose

18710152 adapter 401-06-06 90°Assemble before valve block2

Choose

19710157 adapter 401-06-08 90°Assemble before valve block1

Choose

20711626 protective cover 03015506001

Choose

211049297 valve block QSM-steel1

Choose

227001983 Plastic plug KS 15 G 1/4"1

Choose

231020539 cylindrical pin CPK ø10x24 m6Loxeal 53-112

Choose

241047831 swivel stopp QSM EC2142

Choose

25611812 screw K6S 10x20H 10.9 FZBLoxeal 83-522

Choose

26612022 screw MC6S 10x55 12.9 Geomet ISO4762Torque: 79Nm Tighten in cross pattern4

Choose

271046763 Slip ring-QSM60 M12Mount with marine silicone1

Choose

281050384 coverplate Slip ring QSM1

Choose

29610594 screw MC6S 5x10 12.9 untreated ISO47624

Choose

301046691 rubber buffer Ø25,5/10 L7,5 Slip ring QSMUse the outer ring. Washer down1

Choose

311046692 ring Slip ring QSM1

Choose

321046689 Platta Slip ring QSM1

Choose

331046694 sheet metal Steering cable Slip ring QSM1

Choose

34611039 washer NL 6mm3

Choose

35610310 screw MC6S 6x20 8.8 FZB ISO47623

Choose

36710151 adapter 401-04-04 90°2

Choose

377001956 Hose1

Choose

387001957 Hose1

Choose

39710704 Seal washer GBR08 1/2"8

Choose

401045926 adapter tube extra ½" QSM60 steel4

Choose

41790115 Quick coupling 1/2" male 50202

Choose

42790121 Dust protection 1/2" male 50261

Choose

43710706 Seal washer GBR12 3/4"4

Choose

44710126 adapter 136-12-122

Choose

45790193 Quick coupling 3/4" male 75202

Choose

46790195 Dust protection 3/4" Coupling-male 75261

Choose

471055420 Coupling ECO QSD/QSM 1/2" female V3Loxeal 83-52. (POS.48 included)2

Choose

481050018 flat seal for ECO 1/2" V32

Choose

49710703 Seal washer GBR06 3/8"4

Choose

501045927 adapter tube extra 3/8" QSM60-steel2

Choose

511055682 Coupling ECO QSM 3/8" female V3Loxeal 83-52. (POS.52 included)2

Choose

521052976 flat seal for ECO 3/8" V32

Choose

53710135 adapter 138-04-29 ( compact 136-04-04 )2

Choose

54710702 Seal washer GBR04 1/4"4

Choose

551049327 cover plate GRD/SWD Coupling - QSM60 magnet1

Choose

567000789 hose1

Choose

577000790 hose1

Choose

59711500 Plug VSTIR12ED2

Choose

607000155 Protection Plug HECO60 hydraulic2

Choose

611050319 adapter extra Bolted GRD 1/2"-1/4" 202mm QSM60-steel2

Choose

62790111 Quick coupling 1/4" male 25202

Choose

63790119 Dust protection 1/4" male 25262

Choose

64710913 O-ring 17,17x1,78 PU/90 - ECO60 1/2"Used until 2020-01 Separate seal kit: 70000462

Choose

65712417 O-ring 12,42x1,78 PU - ECO45 3/8"Used until 2020-01 Seperate seal kit: 70000452

Choose

667000104 adapter 402-04-04 45°4

Choose

677000743 hoseReplaced by POS.58 from 2021-092

Choose
