Number of hits 75
Pos.
Item no.
Description
Extra info
Qty.
1
1035753
rotator frame 30 for valve plate
1
Choose
2
630303
bushing WB802 55/60x60
1
Choose
3
630304
bushing WB802 100/105x50
1
Choose
4
710910
O-ring 10,77x2,62 NBR70
2
Choose
5
400390
wear washer segment EC30
4
Choose
6
610122
screw M6S 8x16 8.8 FZB
Loxeal
8
Choose
7
200112
worm wheel EC30
1
Choose
8
1010173
Shim kit centre ring - EC30
1
Choose
9
710924
O-ring centre ring-EC30/ quick hitch -EC233-359,3x5,7
1
Choose
10
302842
centre ring - EC30 - ska shimsas, as of 05-01-01
1
Choose
11
610558
screw MC6S 20x120 12.9 untreated ISO4762
Torque: 649Nm Tighten in cross pattern
18
Choose
13
711403
lube nipple 1/8 straight
7
Choose
14
1014061
axial washer m.öra EC30
Face groove toward worm screw
2
Choose
15
300243
worm screw EC30
1
Choose
16
1074090
Shim kit End lock - EC30
1
Choose
17
303271
End lock EC30 outer shims
1
Choose
18
1029629
End lock EC30 outer shims-ePS
1
Choose
19
6000161
screw MC6S 20x100 12.9 ZFSHL ISO4762
QTY: 12 part of quick hitch Torque: 649Nm
18
Choose
20
1022288

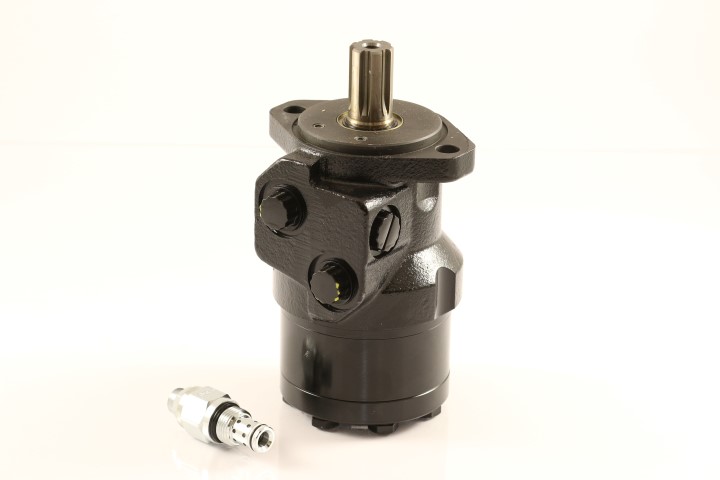

hydraulic motor White 200cc - EC226/EC30 + choke valve
(POS.21-22 incl.)
1
Choose
21
720124
hydraulic motor White 200cc - EC226/EC30 without choke valve
1
22
1044091
choke valve White 160/200cc fixed 200bar
Assy. before motor
1
23
710704
Seal washer GBR08 1/2"
2
Choose
24
710108
adapter 136-08-08
2
Choose
26
611042
washer NL 12mm
2
Choose
27
6000150
screw MC6S 12x35 12.9 ZFSHL ISO4762
2
Choose
28
1004478
Motor cover EC30
1
Choose
29
611041
washer NL 10mm 153105
11
Choose
30
610142
screw M6S 10x25 8.8 FZB
4
Choose
32
1015672
cylindrical pin CPK ø10x35 m6
2
Choose
33
1034258
valve plate -ECHF-EC30
1
Choose
34
612020
screw MC6S 10x40 12.9 Dacromet
7
Choose
35
1027386
valve block-swivel 7-channel ECHF
1
Choose
36
712220
adapter 402-12-12 45°
1
Choose
37
710703
Seal washer GBR06 3/8"
2
Choose
38
710106
adapter 136-06-06
2
Choose
39
611040
washer NL 8mm 153104
QTY: 2 for 6-ch
3
Choose
40
610439
screw MC6S 8x50H 801599
QTY: 2 for 6-ch
3
Choose
41
611515
screw MC6S 10x50 12.9 Geomet ISO4762
QTY: 2 for 6-ch
3
Choose
42
1030298
Slip ring-ECHF-DTM/ Plug
For QS. See "Slip rings"
1
Choose
43
1026200
coverplate Slip ring QSM / ECHF v.2
1
Choose
44
610594
screw MC6S 5x10 12.9 untreated ISO4762
4
Choose
45
712422
O-ring 6,07x1,78 NBR70
2
Choose
46
710912
O-ring 15,6x1,78 NBR70
1
Choose
47
710973
O-ring 12,42x1,78 NBR 70 shore
4
Choose
48
1028391
connection block under ECHF v.3
Guide with spring pin from swivel
1
Choose
49
303134
tilt axle EC30 smöjning i båda ändarna
Part of top part
2
Choose
50
610470
screw MC6S 12x16H 12.9 Geomet ISO4762
Part of top part. Loxeal
2
Choose
51
650103
Feather key 12x8x60 EC30, EC233
Part of quick hitch
4
Choose
52
7000310
O-ring 479,3x5,7 NBR90 quick hitch EC30
Part of quick hitch
1
Choose
54
200245
worm wheel EC30 reversed
1
Choose
55
650408
RP M36x2 Din 908 FZB
2
Choose
56
1029734
Protection sensor ePS-EC30
1
Choose
57
1034488
valve plate -6-channel-EC30
1
Choose
58
1030297
valve block-swivel 5v & 6-ch Slip ring-DTM
1
Choose
59
1023911
valve block-swivel 5v & 6-ch for Slip ring
1
Choose
60
710122
adapter 135-06-08
2
Choose
61
610461
screw MC6S 10x70 12.9 untreated ISO4762
1
Choose
62
710901
O-ring 9,25x1,78 GREEN Viton 90 shore NG6
12
Choose
63
1025487
swivel extension 6-ch for Slip ring
1
Choose
64
1025491
connection block 6-ch EC30-for Slip ring
1
Choose
65
740308
hose motor - EC30 - lång, cut length 1170
1
Choose
66
740309
hose
1
Choose
67
402185
lube screw EC30
Used until 2009-05
1
Choose
68
650201
cylindrical stick CPK ø3x12 m6
Used until 2013-03
2
Choose
69
650302
Supportring 100/125 SS100*125*3,5
Used until 2013-03
1
Choose
70
400248
axial washer EC30
Used until 2013-03
2
Choose
71
1031211
Shim kit worm screw - EC30
Used until 2013-03
1
Choose
72
100010
Motor cover EC20
Replaced by POS.28 from 2008-05
1
Choose
73
611006
washer BRB FZB 10,5x22x2
4
Choose
74
610141
screw M6S 10x20 8.8 FZB
4
Choose
75
6000047
Magnet Neodym35 8x5x3mm SVAB MACS
Loctite 415. Harden 1 minute
1
Choose
76
1033696
End lock EC30 outer shims-MACS
1
Choose
77
610556
screw MC6S 20x90 12.9 untreated ISO4762
6
Choose
78
1043698
Inductive sensor M8 PNP NO 4mm - SVAB MACS
Distance 1mm. Nut torque: 3Nm
1
79
650411
Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS
1
Choose
