Number of hits 68
Pos.Item no.DescriptionExtra infoQty.
7650408RP M36x2 Din 908 FZBPart of rotator frame6
15710702Seal washer GBR04 1/4"QTY: 4 part of integrated grab8
16710135adapter 138-04-29 ( compact 136-04-04 )QTY: 4 part of integrated grab5
19710706Seal washer GBR12 3/4"QTY: 3 for EC-Oil2
26610451screw MC6S 10x20 12.9 untreated ISO47624
32710152adapter 401-06-06 90°Assemble before valve block2
33710157adapter 401-06-08 90°Assemble before valve block1
36612022screw MC6S 10x55 12.9 Geomet ISO4762Torque: 79Nm Tighten in cross pattern4
371046763Slip ring-QSM60 M12Mount with marine silicone1
401046691rubber buffer Ø25,5/10 L7,5 Slip ring QSMUse the outer ring. Washer down1
527000681Hose - Extra 1 - A - ECO1
56710704Seal washer GBR08 1/2"QTY: 2 w/o EC-Oil1
66710108adapter 136-08-08Drain. Remove plug fr. connectionbl.1

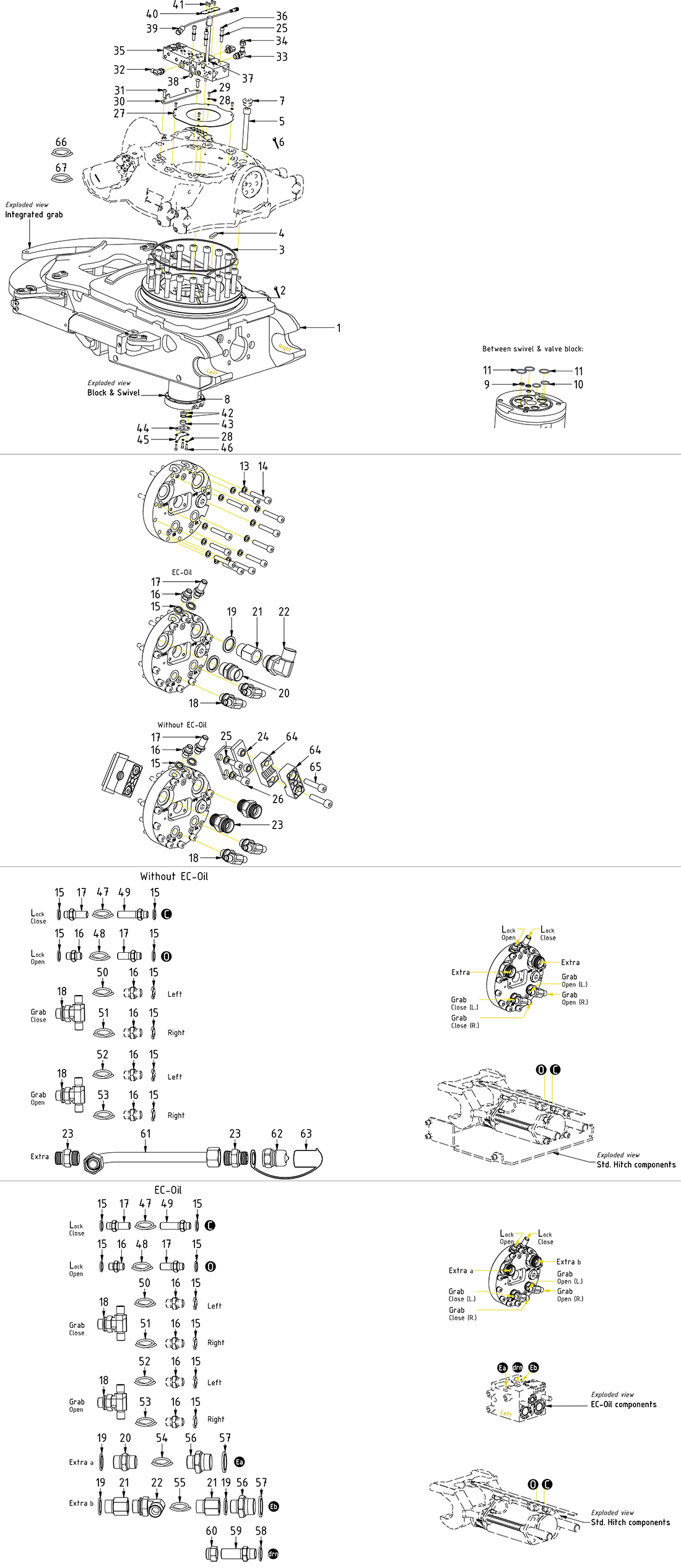

Start > engcon för grävmaskiner > Tiltrotators > EC233 > Quick hitch > QSM QS80 GR30
