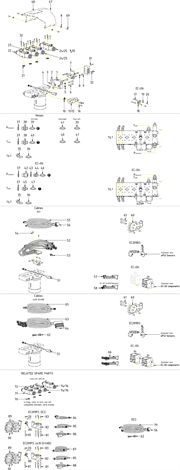

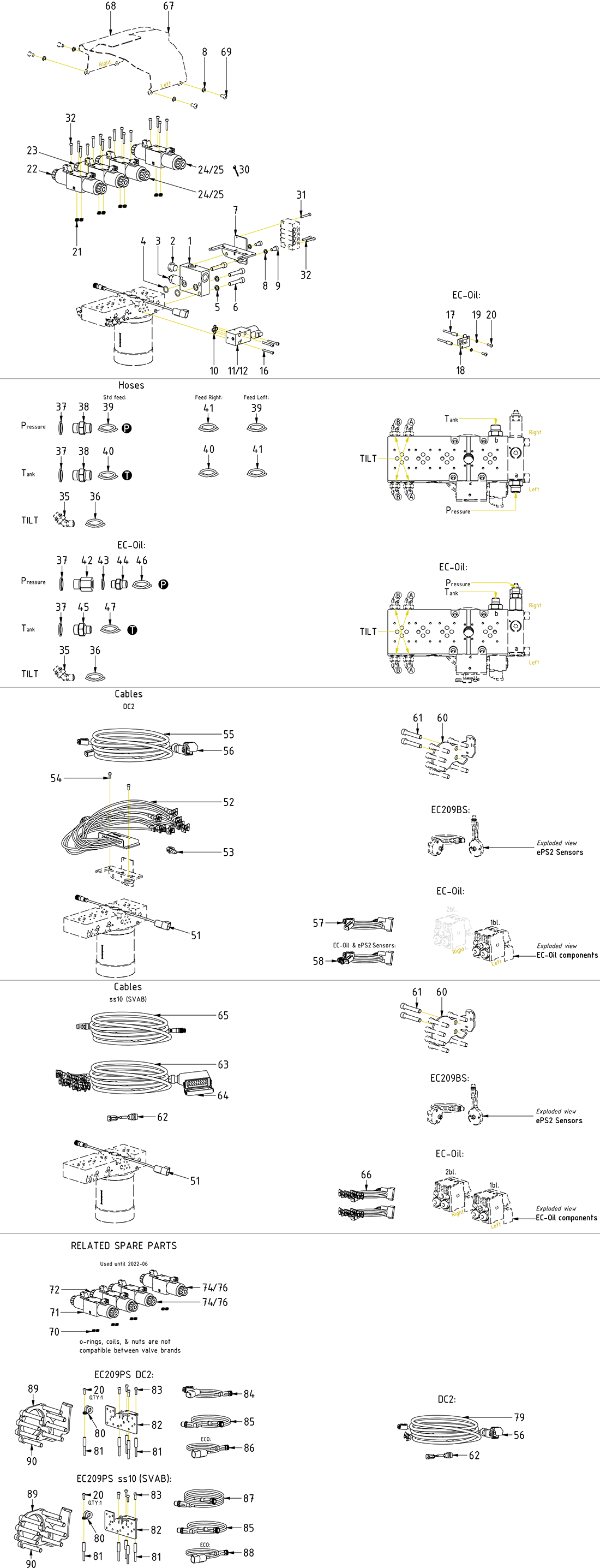

ss10 (DC2/SVAB)

Pos.Item no.DescriptionExtra infoQty.

11055945 Connection block P with pressure reducer QSM45/50(POS.2-3 incl.)1

Choose

2711500 Plug VSTIR12EDOpposite side for EC-Oil1

Choose

3730288 pressure reducer SP4A-B3 EC2091

Choose

4712423 O-ring 15,54 x 2,62 NBR702

Choose

5611041 washer NL 10mm 1531053

Choose

6611515 screw MC6S 10x50 12.9 Geomet ISO47623

Choose

71055574 Attachment central lubrication & DC2-QSM45/501

Choose

8611040 washer NL 8mm 153104QTY: 4 part of make up6

Choose

9610431screw MC6S 8x16 12.9 untreated ISO47622

10710960 O-ring 7,65x1,78 GREEN Viton 90 shore NG44

Choose

111042047 directional valve NG4 IQS lock 12V DT ss10 Coil A(POS.10, 13, 15 incl.)1

Choose

121042190 directional valve NG4 IQS lock 24V DT ss10 Coil A(POS.10, 14, 15 incl.)1

Choose

131042065 Coil NG4 IQS lock 12V DT1

Choose

141042066 Coil NG4 IQS lock 24V DT1

Choose

15710250 Bulkhead adapter nut 1270-041

Choose

16610405 screw MC6S 5x40 12.9 untreated ISO4762Torque: 9,7Nm. QTY: 1 when EC-Oil3

Choose

171047243 screw Valve Distance NG6 M5x39Torque: 9,7Nm2

Choose

181058235 Mounting plate 1x Deutsch NG41

Choose

19611038 washer NL 5mm2

Choose

20611818 screw K6S 5x16H 10.9 FZBTorque: 8,1Nm2

Choose

21710959 O-ring 8,75x1,78 NBR 90 shore16

Choose

227001615 Directional valve NG6 prop 12V engcon JT open to tank ATOS(POS.21, 26, 29 incl.)1

Choose

237001614 Directional valve NG6 prop 12V engcon JT ATOS(POS.21, 26, 29 incl.)1

Choose

247001617 Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS(POS.21, 27, 29 incl.)2

Choose

257001616 Directional valve NG6 24V JT ATOS(POS.21, 28, 29 incl.)2

Choose

267001734 Coil 12V NG6 prop JT ATOS4

Choose

277001735 Coil 12V NG6 JT on/off ATOS4

Choose

287001736 Coil 24V NG6 JT on/off ATOS4

Choose

297001887 Nut directional valve ATOS8

Choose

31610404 screw MC6S 5x35 12.9 untreated ISO47621

Choose

32610403 screw MC6S 5x30 12.9 untreated ISO4762Torque: 9,7Nm18

Choose

347000104 adapter 402-04-04 45°Part of quick hitch assy.4

Choose

357001308 hose4

Choose

36710704 Seal washer GBR08 1/2"3

Choose

37710108 adapter 136-08-082

Choose

387001265 hose1

Choose

397001266 hose1

Choose

407001586 HoseFeed Right: Use this for "P" Feed Left: Use this for "T"1

Choose

417000705 Adapter 235-08-061

Choose

42710703 Seal washer GBR06 3/8"1

Choose

43710106 adapter 136-06-061

Choose

44710122 adapter 135-06-081

Choose

457001267 hose1

Choose

467001268 hose1

Choose

51842137 Tiltrotator module EC209-226/EC10-30 DC2 QS-DTM1

Choose

521018662 Bridge JT tool lock valve SQ DC2/ss9-2Plug JT connector "1"1

Choose

536000077 screw MC6S 5x12 12.9 untreated ISO47622

Choose

548001201 Aggregate cable-DC2-QSC DT EC206-EC2331

Choose

55810208 ILME cover 8P/12P contact with jumper(Incl. with agg.cable)1

Choose

561048529 Adapter cable ECO W-DC2 -QSC-DTMFor EC-Oil. Instead of agg.cable1

Choose

588000090 Protection Plug DTM04-6P1

Choose

591063372 End lock protection plate EC209S/EC214S/EC219S1

Choose

60611517 screw MC6S 12x70 12.9 Geomet ISO4762Torque: 136Nm8

Choose

611056632 Protective cover valve block EC209 QSMPart of make up1

Choose

621056633 Protective cover valve block EC209 QSM - LipPart of make up1

Choose

63611810 screw K6S 8x16H 10.9 FZBPart of make up4

Choose

64710901 O-ring 9,25x1,78 GREEN Viton 90 shore NG6Used until 2022-0616

Choose

657000092 directional valve prop 12V engcon AMP open to tankReplaced by POS.22 (ATOS)1

Choose

66730190 directional valve prop 12V engcon AMPReplaced by POS.23 (ATOS)1

Choose

67730192 Coil 12V NG6 prop AMPUsed with POS.65-664

Choose

68730101 directional valve 12V. 4D01-3203-0302-B1-GOR-JTReplaced by POS.24 (ATOS)2

Choose

69730117 Coil 12V NG6 JT on/offUsed with POS.684

Choose

70730103 directional valve 24VReplaced by POS.25 (ATOS)2

Choose

71730118 Coil 24V NG6 JT on/offUsed with POS.704

Choose

72730135 nut directional valve Argo Hytos8

Choose

738000175 Aggregate cable-DC2-QSC EC206-EC233Replaced by POS.54 from 2020-121

Choose

74842148 cable QS - QLM - tiltrotator DTM 4,5m1

Choose

75303465 Aggregate cable-ss5-SVAB (ILME 16P)-without aggregate box (3,5m)1

Choose

761017478 adapter cable Deutsch - Amp contact (2P)(Previously also for DC2)1

Choose

771029599 adapter cable-ECO-ss5/ss9/ss10-DTM-->JTFor EC-Oil. Instead of POS.74-751

Choose

786000009 Rubber Steel Clamp ø161

Choose

791034402 screw Valve Distance NG6 M5x30,55

Choose

801057538 Mounting plate-ePS-Tilt angle sensor-EC209 QSM451

Choose

81610401 screw MC6S 5x16 12.9 untreated ISO47624

Choose

828000783 adapter cable-ePS-DC2-sensor--> Tilt Module1

Choose

838000784 connection cable-ePS-rotation sensor-->1

Choose

848002459 Cable 3rd party tilt angle sensor Top ECOFor EC-Oil w. ePS NB! Only compatible with 80024771

Choose

858000824 Unit cable-ePS1

Choose

868000825 Adapter cable ePS ECOFor ECO w. ePS. Instead of POS.851

Choose

871033565 Protection sensor-ePS, SVAB MACS-V2-EC209,EC214,EC2191

Choose

886000148 screw MC6S 12x80 12.9 ZFSHL ISO4762Torque: 136Nm8

Choose
