DC2

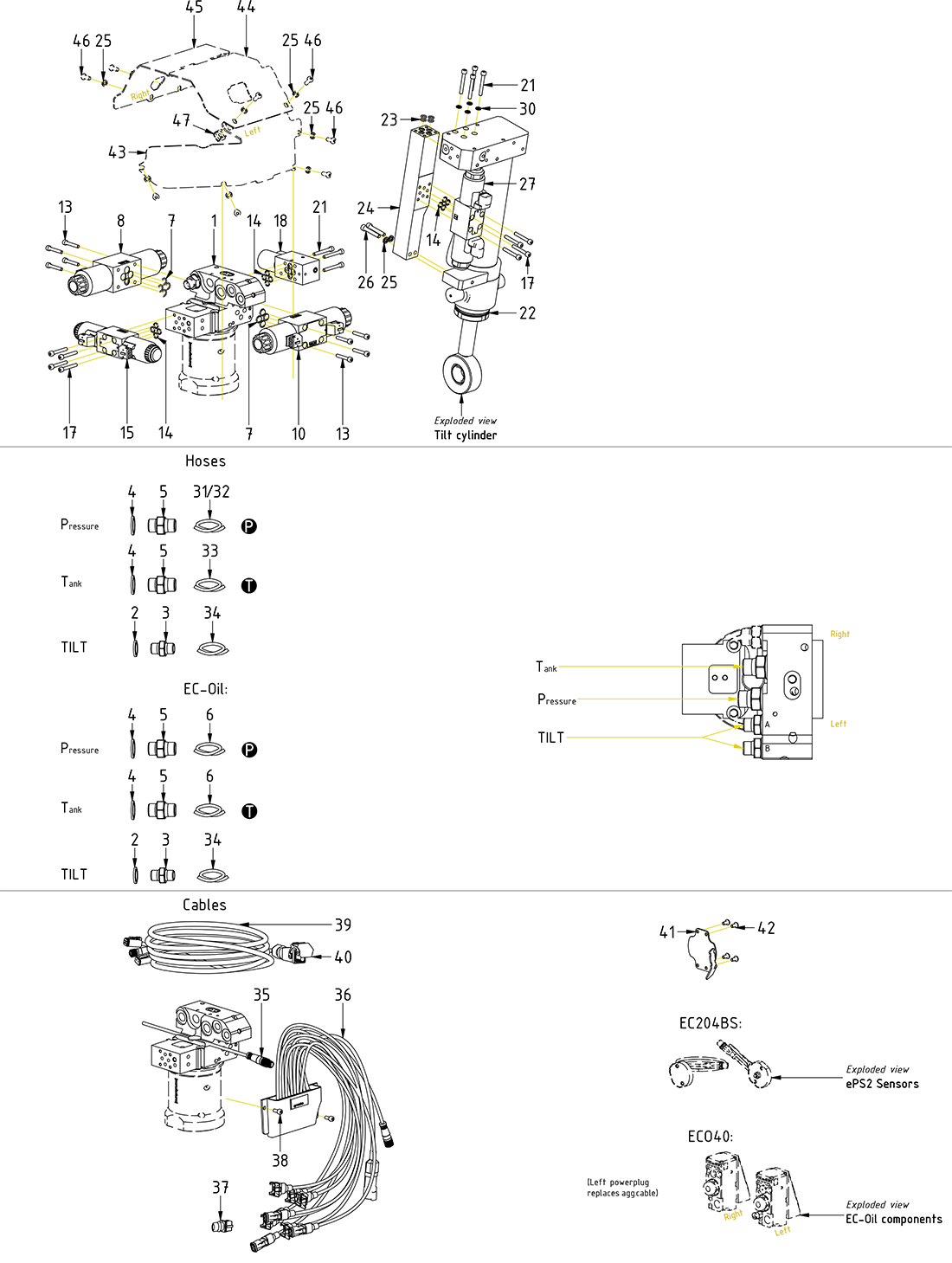

Pos.Item no.DescriptionExtra infoQty.

11078622 Valve block EC204BPart of quick hitch1

Choose

2710702 Seal washer GBR04 1/4"2

Choose

3710135 adapter 138-04-29 ( compact 136-04-04 )2

Choose

4710703 Seal washer GBR06 3/8"2

Choose

5710106 adapter 136-06-062

Choose

7710901 O-ring 9,25x1,78 GREEN Viton 90 shore NG68

Choose

8730190 directional valve prop 12V engcon AMP(POS.7, 9, 12 incl.)1

Choose

9730192 Coil 12V NG6 prop AMP2

Choose

10730101 directional valve 12V. 4D01-3203-0302-B1-GOR-JT(POS.7, 11, 12 incl.)1

Choose

11730117 Coil 12V NG6 JT on/off2

Choose

12730135 nut directional valve Argo Hytos1

Choose

13610403 screw MC6S 5x30 12.9 untreated ISO4762Torque: 9,7Nm8

Choose

14710960 O-ring 7,65x1,78 GREEN Viton 90 shore NG412

Choose

157000099 directional valve NG4 12V DT(POS.14, 16, 29 incl.)1

Choose

167000897 Coil 12V NG4 On/Off DT2

Choose

17610404 screw MC6S 5x35 12.9 untreated ISO4762Torque: 9,7Nm8

Choose

181042047 directional valve NG4 IQS lock 12V DT ss10 Coil A(POS.14, 19, 20 incl.)1

Choose

191042065 Coil NG4 IQS lock 12V DT1

Choose

206000169nut UNF 1/2"1

21610405 screw MC6S 5x40 12.9 untreated ISO4762Torque: 9,7Nm7

Choose

221077744 Tilt cylinder EC204BPart of top part1

Choose

237001940 O-ring 6,75x1,78 NBR 70 shore4

Choose

241075504 Valve block EC204B tilt cylinder1

Choose

25611039 washer NL 6mmQTY: 8 part of make up10

Choose

26610591 screw MC6S 6x35 12.9 untreated ISO47622

Choose

277000100 directional valve NG4 Prop tilt 12V DT(POS.14, 28, 29 incl.)1

Choose

287000205 Coil NG4 12V2

Choose

291006785 nut directional valve NG46

Choose

30611038 washer NL 5mm4

Choose

317001991 Hose1

Choose

327001992 Hose1

Choose

337001990 Hose2

Choose

358002468 Electronics Module TM2-EC204B DC2 QS-M121

Choose

361018662 Bridge JT tool lock valve SQ DC2/ss9-2Plug JT connector "1"1

Choose

376000077 screw MC6S 5x12 12.9 untreated ISO47622

Choose

388002470 Unit cable DC2 QSC ePS EC204B1

Choose

39810208 ILME cover 8P/12P contact with jumper(Incl. with agg.cable)1

Choose

401076341 End lock protection plate EC204BS1

Choose

416000408 Screw K6S 5x10 10.9 FZB ISO73804

Choose

421076425 Cover plate EC204B TM-modulePart of make up1

Choose

431076007 Protective cover valve block EC204B leftPart of make up1

Choose

441076360 Protective cover valve block EC204B rightPart of make up1

Choose

456000242 screw K6S 6x14 10.9 FZBPart of make up8

Choose

466000411 Cage nut M6Part of make up2

Choose
