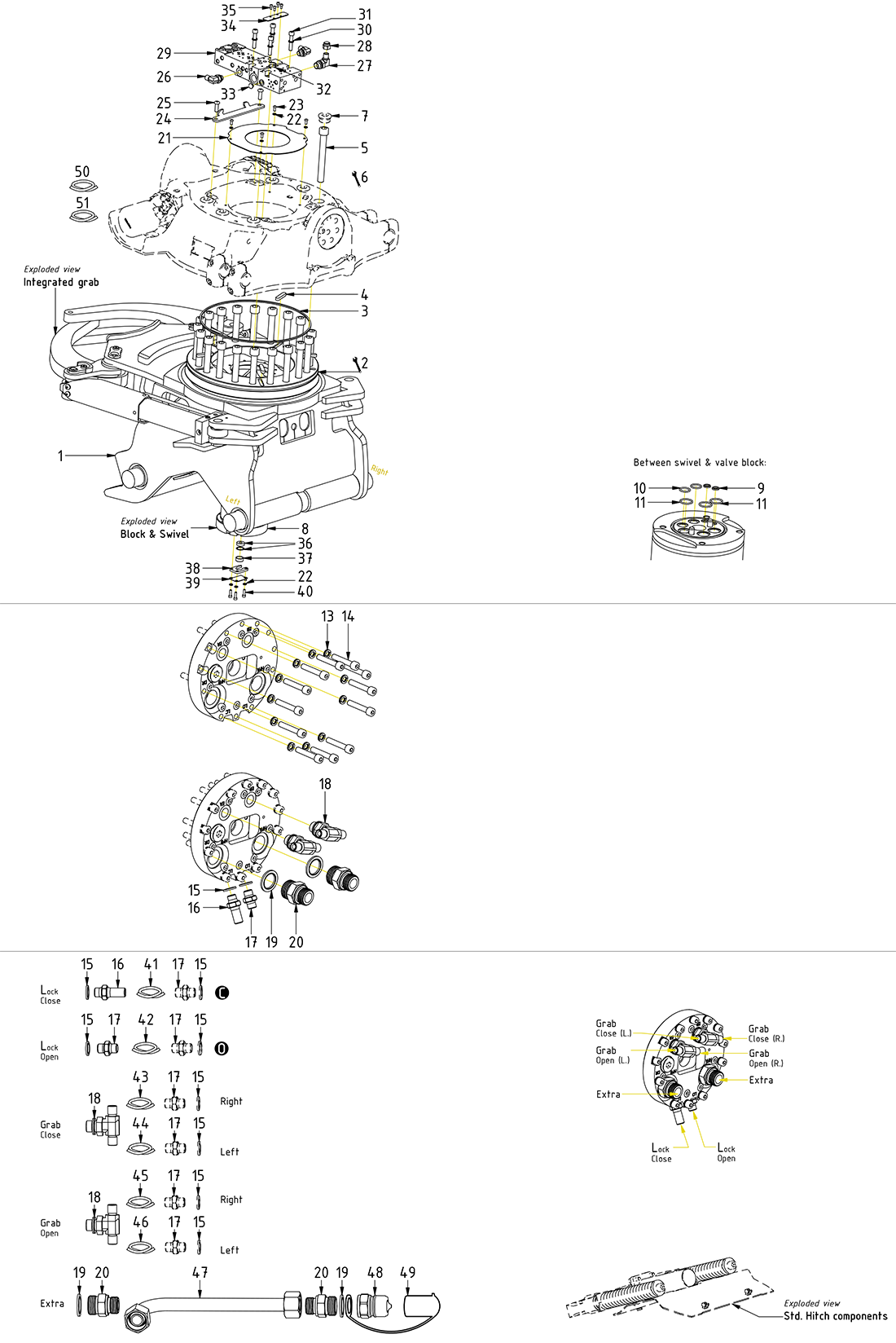

QSM CW40 GR20

Pos.Item no.DescriptionExtra infoQty.

11077736 Quick hitch CW40 0° GR20 EC233 QSM with grab kit1

Choose

3710924 O-ring centre ring-EC30/ quick hitch -EC233-359,3x5,71

Choose

4650103 Feather key 12x8x60 EC30, EC2335

Choose

56000101 screw MC6S 20x170 12.9 untreated ISO4762Torque: 649Nm20

Choose

7650408 RP M36x2 Din 908 FZBPart of rotator frame6

Choose

81072872 Swivel 7-channel QSM with connection block QS80/CW30/401

Choose

97000579 O-ring square 7,66x1,68 nbr70 NG42

Choose

10710975 O-ring 14x1,78 NBR 70 shore2

Choose

11710977 O-ring 17,17x1,78 NBR 70 shore3

Choose

13611040 washer NL 8mm 15310412

Choose

146000399 Screw MC6S 8x45 12.9 Geomet ISO476212

Choose

15710702 Seal washer GBR04 1/4"QTY: 4 part of integrated grab8

Choose

16710240 Bulkhead adapter 1260-04-041

Choose

17710135 adapter 138-04-29 ( compact 136-04-04 )QTY: 4 part of integrated grab7

Choose

18712224 adapter 403-04-062

Choose

19710706 Seal washer GBR12 3/4"4

Choose

207001855 Adaper - cutting ring M30x2 - G3/44

Choose

211052691 cover swivel EC233 QSM1

Choose

22611039 washer NL 6mm7

Choose

236000242 screw K6S 6x14 10.9 FZB4

Choose

241048076 Swivel stop QSM EC2331

Choose

256000193 screw MK6S 10x30H 10.9 FZBLoxeal 83-522

Choose

26710152 adapter 401-06-06 90°Assemble before valve block2

Choose

27710157 adapter 401-06-08 90°Assemble before valve block1

Choose

28711626 protective cover 03015506001

Choose

291049297 valve block QSM-steel1

Choose

30611041 washer NL 10mm 1531058

Choose

31612022 screw MC6S 10x55 12.9 Geomet ISO4762Torque: 79Nm Tighten in cross pattern4

Choose

32710983 O-ring 21,95x1,78 NBR 70 shore(Incl. with valve block)2

Choose

337001983 Plastic plug KS 15 G 1/4"(Incl. with valve block)1

Choose

341050384 coverplate Slip ring QSM1

Choose

35610594 screw MC6S 5x10 12.9 untreated ISO47624

Choose

361046691 rubber buffer Ø25,5/10 L7,5 Slip ring QSMUse the outer ring. Washer down1

Choose

371046692 ring Slip ring QSM1

Choose

381046689 Platta Slip ring QSM1

Choose

391046694 sheet metal Steering cable Slip ring QSM1

Choose

40610310 screw MC6S 6x20 8.8 FZB ISO47623

Choose

471072343 Pipe extra QS80 QSM/CW30,40 QSM2

Choose

48790193 Quick coupling 3/4" male 75202

Choose

49790195 Dust protection 3/4" Coupling-male 75262

Choose

507000451 hose1

Choose

517000903 hose1

Choose

52710704 Seal washer GBR08 1/2"Drain. Remove plug fr. connectionbl.2

Choose

53710108 adapter 136-08-08Drain1

Choose

55710252 Bulkhead adapter nut 1270-06Drain1

Choose

56710263 Bulkhead adapter extended 2011-08Drain1

Choose

57790115 Quick coupling 1/2" male 5020Drain1

Choose

58790121 Dust protection 1/2" male 5026Drain1

Choose
