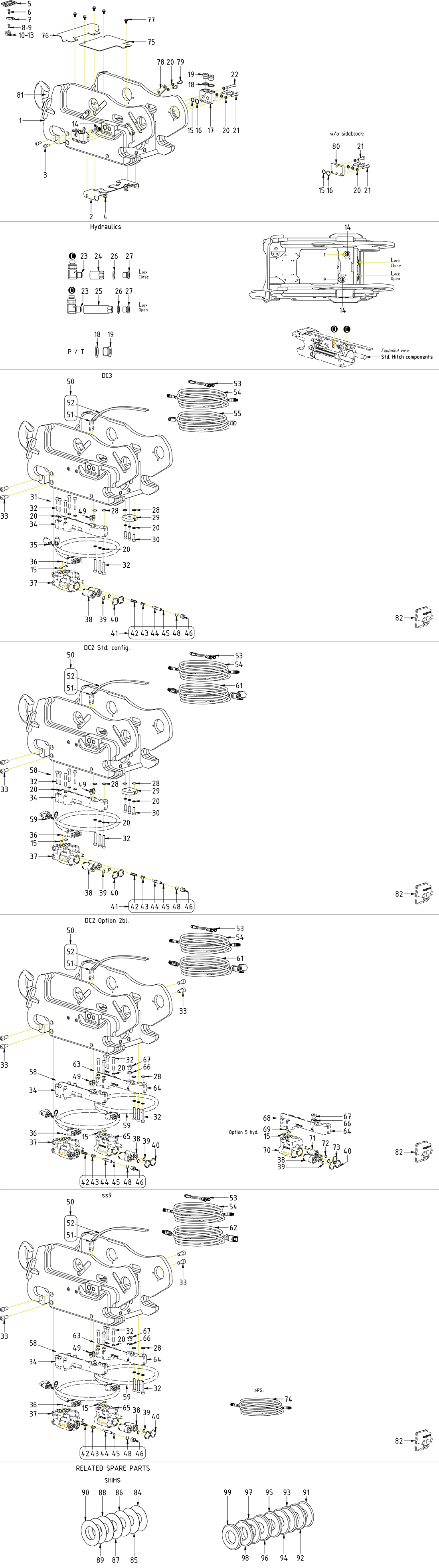

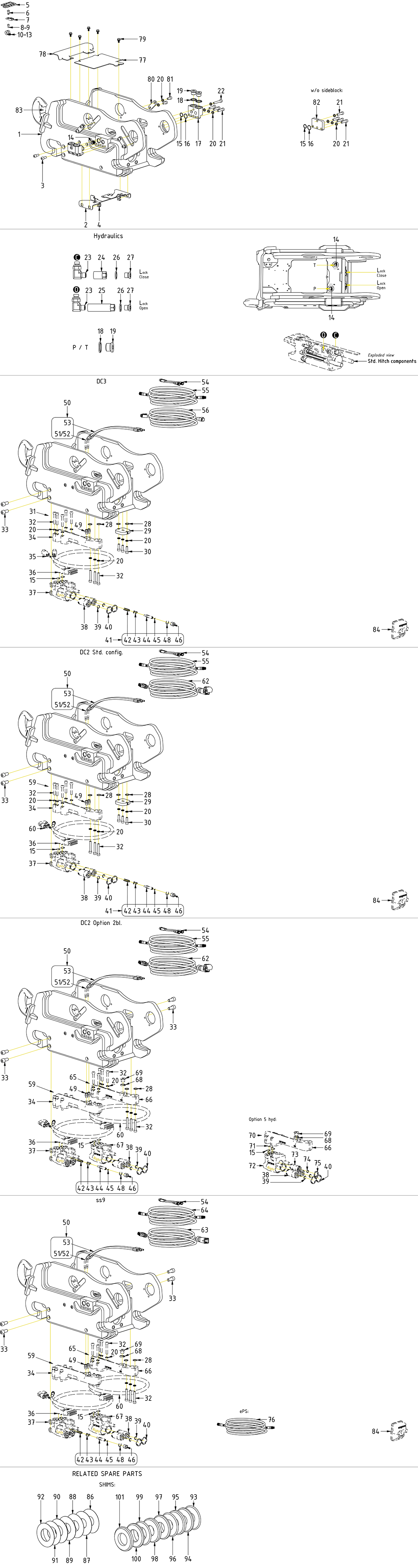

S45 (from 2024)

Pos.Item no.DescriptionExtra infoQty.

21074147 Connection plate S45 bolted1

Choose

36000157 screw MC6S 8x20H 12.9 ZFSHL ISO47624

Choose

46000400 Cage nut M84

Choose

58000703 Strain relief plate ZL60 4xQTY: 2 for DC2, ss91

Choose

66000294 Blindnit 4,0x12,3 DIN7337 alu/stålQTY: 6 for DC2, ss92

Choose

7810662 holder-Deutsch DT/DTM contactFor DC2, ss92

Choose

86000312 Screw MC6S 5x10 8.8 FZB ISO4762QTY: 2 for ss91

Choose

96000408 Screw K6S 5x10 10.9 FZB ISO73803

Choose

106000027 Rubber Steel Clamp ø62

Choose

116000003 Rubber Steel Clamp ø10QTY: 1 for DC22

Choose

12613009 Rubber Steel Clamp ø142

Choose

136000009 Rubber Steel Clamp ø161

Choose

14711522 pipeplug DIN 906 3/8" 180154For EC-Oil 2bl. See position on p.32

Choose

157001934 O-ring 15,6x1,78 NBR 90 shore4

Choose

16710981 O-ring 18,77x1,78 NBR 90 shore2

Choose

171074129 Side block S45 - for hose connection2

Choose

18710704 Seal washer GBR08 1/2"6

Choose

197000800 Plug Din 908 1/2"6

Choose

20611040 washer NL 8mm 15310427

Choose

21611519 screw MC6S 8x30 Geomet ISO4762QTY: 8 w/o sideblock Torque: 40Nm6

Choose

226000399 Screw MC6S 8x45 12.9 Geomet ISO4762Torque: 40Nm2

Choose

237000247 adapter ORFS 067005-04-042

Choose

241071217 Adapter tube-lock short S45/S60/S70Loxeal 83-521

Choose

251071216 Adapter tube-lock long S45/S60/S70Loxeal 83-521

Choose

26710702 Seal washer GBR04 1/4"2

Choose

27711505 Plug Din 908 1/4"2

Choose

28710912 O-ring 15,6x1,78 NBR704

Choose

291073648 Cover plate S45 - without ECO-block1

Choose

306000143 screw MC6S 8x25 12.9 ZFSHL ISO47623

Choose

311078881 Block ECO45 W-S45-QH-2hy 1cl 1el left (assembly) DC3(POS.15, 20, 32, 34-38, 40-41, 49)1

Choose

32611597 screw MC6S 8x50H 12.9 Geomet ISO4762Torque: 136Nm8

Choose

336000164 screw MC6S 12x25H 12.9 ZFSHL ISO47622

Choose

358002452 Power plug 12P ECO45 W S-QH - DC31

Choose

367001849 O-ring 4,48x1,78 NBR 90 shore2

Choose

381053029 Coupling ECO 3/8" female V3Torque: 60Nm. (POS.39 incl.)2

Choose

391052976 flat seal for ECO 3/8" V32

Choose

401028274 dirt protection block ECO 3/8"2

Choose

411050794 Central lubrication kit ECO W V2(POS.42-48 incl.)1

Choose

421024113 spring 60581

Choose

431024112 piston sealing KPOR130 12x7,1x2,2(O-ring incl. with seal ring)2

Choose

441024111fat piston for ECO block1

451024115 O-ring 3,69x1,78 NBR 90 shore1

Choose

461047688 Nut greasepiston V2Wrap with thread sealing tape1

Choose

47712429 O-ring 9,25 x 1,78 NBR70Located inside nut1

Choose

487000767 O-ring 14x2 70 shore1

Choose

49790172 Push-in Coupling R1/8" PGE06KR lube kit2

Choose

517001980 Tube sleeve 45° Push-In2

Choose

52790176 hose 3m - hose kit - lubricant ECO2

Choose

538002139 Cable M12-8P -> 2x M12-4S Y-splitter QSM/SAttach to QS sensors1

Choose

548002249 Cable QS - QLM - Quick Hitch M12-4,35mAttach to Y-split1

Choose

558002297 Cable DT-4P -> DT-4S 3m-DC3Attach to 4P1

Choose

568002372 Deutsch Dust protection to DT04-4P1

Choose

578000620 Protection Plug DTM06-6S1

Choose

581078272 Block ECO45 W-S45-quick hitch -2hy 1cl 1el left (assembly)(POS.15,20,32,34, 36-38,40-41, 49,59)1

Choose

598002375 Power plug ECO45 W S-quick hitch -DTMCable gland torque: 6Nm1

Choose

608002058 Protection Plug DTM06-12SA1

Choose

611048527 cable ECO W-machine-DC2-DTM-QS/QSC-2,5mAttach to Left 12P1

Choose

621036844 cable ECO45/50 machine ss9-2 (2,5m)-DTMAttach to Left 12P1

Choose

631078359 Block ECO45 W-S45-quick hitch -2hy1el right (assembly)(POS.15,20,32,38,40,59,64-65 incl.)1

Choose

66710703 Seal washer GBR06 3/8"1

Choose

681078279 Block ECO45 W-S45-quick hitch -3hy right (assembly)(POS.15,20,32,38,40,64,69-71,73 incl.)1

Choose

69710959 O-ring 8,75x1,78 NBR 90 shore2

Choose

711053683 Coupling ECO 1/4" female V3Torque: 60Nm. (POS.72 incl.)1

Choose

721053936 flat seal for ECO 1/4" V31

Choose

731054419 dirt protection ECO 1/4"1

Choose

748002458 Cable ePS EC-Oil S hitches M12 - M121

Choose

751078384 Cover plate large S451

Choose

761078383 Cover plate small S451

Choose

776000120 screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Räfflad5

Choose

781073400 Lock plate-UNI axle-S45Assemble with slight play4

Choose

79610432 screw MC6S 8x16H 12.9 ZFSHL ISO47628

Choose

801074128 Cover plate S45 - without side-block2

Choose

81404250 locktab Pejo 202-3Lifting hook spare part1

Choose

821047812 Protection ECO45 W magnet - quick hitch castPart of make up1

Choose

841073444 Shim Ø116/46 x 0,51

Choose

851073445 Shim Ø116/46 x 11

Choose

861073447 Shim Ø116/51 x 0,51

Choose

871073448 Shim Ø116/51 x 11

Choose

881073449 Shim Ø116/51 x 21

Choose

891074251 Shim Ø116/61 x 0,51

Choose

901074252 Shim Ø116/61 x 11

Choose

911073452 Shim chamfered Ø116/46 x 51

Choose

921073453 Shim chamfered Ø116/46 x 101

Choose

931073455 Shim chamfered Ø116/46 x 151

Choose

941073456 Shim chamfered Ø116/51 x 51

Choose

951073457 Shim chamfered Ø116/51 x 101

Choose

961073458 Shim chamfered Ø116/51 x 151

Choose

971074249 Shim chamfered Ø116/61 x 51

Choose

981074250 Shim chamfered Ø116/61 x 101

Choose

991079271 Shim chamfered Ø116/61 x 151
