Number of hits 56

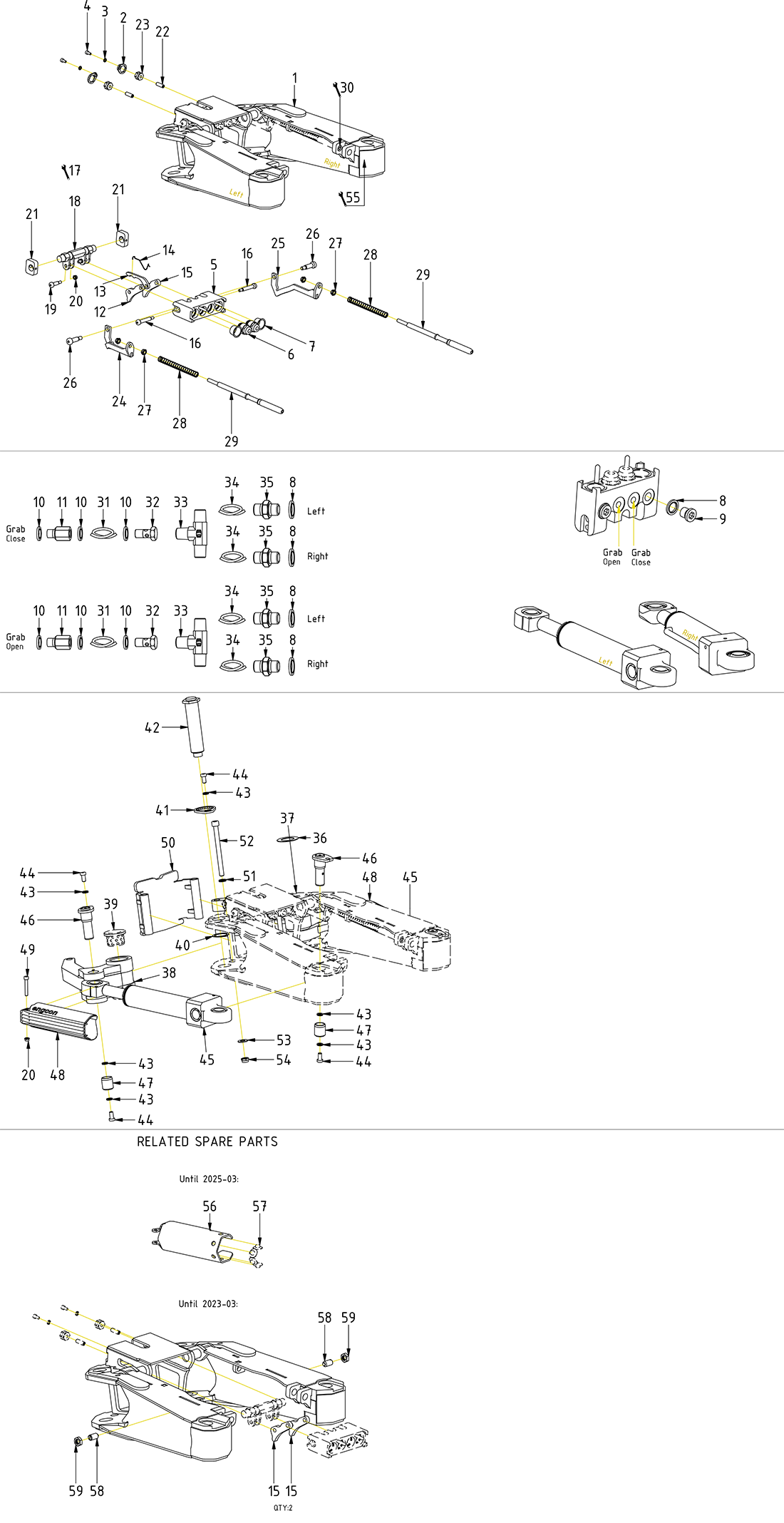

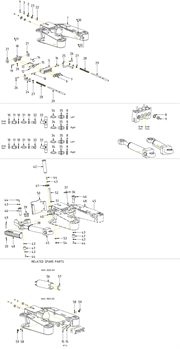

Pos
Item no.
Description
Extra info
Qty.
1
1063189
Frame GRD40
1
Choose
2
1069266
Lock plate positioning nut-eccenter GRD40/SWD40
2
Choose
3
611038
washer NL 5mm
2
Choose
4
610594
screw MC6S 5x10 12.9 untreated ISO4762
2
Choose
5
1063783
Hydraulic block ECO GRD40/SWD40
1
Choose
6
1053693
Coupling ECO 1/4" male
Torque: 60Nm
2
Choose
7
7001705
Protection Plug GRD40 hydraulic
2
Choose
8
710702
Seal washer GBR04 1/4"
6
Choose
9
711505
Plug Din 908 1/4"
2
Choose
10
710701
Seal washer GBR02 1/8"
6
Choose
11
710129
adapter 236-02-02
2
Choose
12
1069486
Link arm thin SWD40/GRD40Q
1
Choose
13
1069487
Locking hasp SWD40/GRD40Q
1
Choose
14
1069471
Spring locking hasp SWD40/GRD40Q
1
Choose
15
1063772
Link arm SWD40/GRD40Q
1
Choose
16
6000264
reamed bolt Ø8x40/M6
2
Choose
18
1063841
Eccenter GRD40/SWD40 ECO
1
Choose
19
6000367
Screw-Shoulder screw Ø8x20/M6 12.9 ISO7379
2
Choose
20
610921
nut M6M M6 lock
4
Choose
21
1063860
Eccenter holder GRD40/SWD40
2
Choose
22
6000012
screw S6SS M8x25 DIN914
Loxeal 83-52
2
Choose
23
1063862
Positioning nut-eccenter GRD40/SWD40
2
Choose
24
1063516
Carrier Left GRD40/SWD40
1
Choose
25
1063518
Carrier Right GRD40/SWD40
1
Choose
26
611703
reamed bolt ø10x25/M8 136509
Loxeal 83-52
2
Choose
27
610922
nut M6M M8 lock
4
Choose
28
1038762
spring lock arm GRD10/SWD45
2
Choose
29
1063497
Lock arm GRD40/SWD40
2
Choose
31
7001655
Hose
2
Choose
32
710277
banjo bolt 4451-02
2
Choose
33
7000883
Adapter 851-04-04
2
Choose
34
7001654
Hose
4
Choose
35
710135
adapter 138-04-29 ( compact 136-04-04 )
4
Choose
36
1070920
Shim GRD40 50x30,5x1
Use below double arm
1
Choose
37
1063429
Grab arm GRD40 right
(POS.39 incl.)
1
Choose
38
1063423
Grab arm GRD40 left
(POS.39 incl.)
1
Choose
39
6000335
Bushing BWG-F 30/40/50/5x30
4
Choose
40
1066822
Shim GRD40 38x30,2x1
Use if required (above both arms)
2
Choose
41
1066825
Lock plate grab arm axle GRD40
2
Choose
42
1066814
Axle Grab arm GRD40
Loxeal 83-52
2
Choose
43
611040
washer NL 8mm 153104
12
Choose
44
6000220
screw MLC6S 8x16 10.9 FZB DIN7984
Loxeal 83-52
8
Choose
45
1063632
Grab cylinder GRD40
2
Choose
46
1063475
Axle grab cylinder & grab arm GRD40
4
Choose
47
1063479
Sleeve axle grab cylinder & grab arm GRD40
4
Choose
48
1063151
Grab guard GRD40-right/left-plastic
2
Choose
49
610418
screw MC6S 6x40 12.9 untreated ISO4762
2
Choose
50
1063771
Support GRD40
1
Choose
51
611041
washer NL 10mm 153105
2
Choose
52
6000025
Screw MC6S 10x120 12.9 ISO4762
2
Choose
53
611006
washer BRB FZB 10,5x22x2
2
Choose
54
610923
nut M6M M10 lock
2
Choose
56
1063810
Grab guard GRD40
Replaced by POS.48 from 2025-03
2
Choose
57
400635
Plastdistans 1,2mm
(Incl. in cover)
8
Choose
58
1065745
Spring plunger GN615 BN M12
Loxeal 83-52
2
Choose
59
6000384
Nut ML6M M12x1,75 DIN 439 FZB
2
Choose
