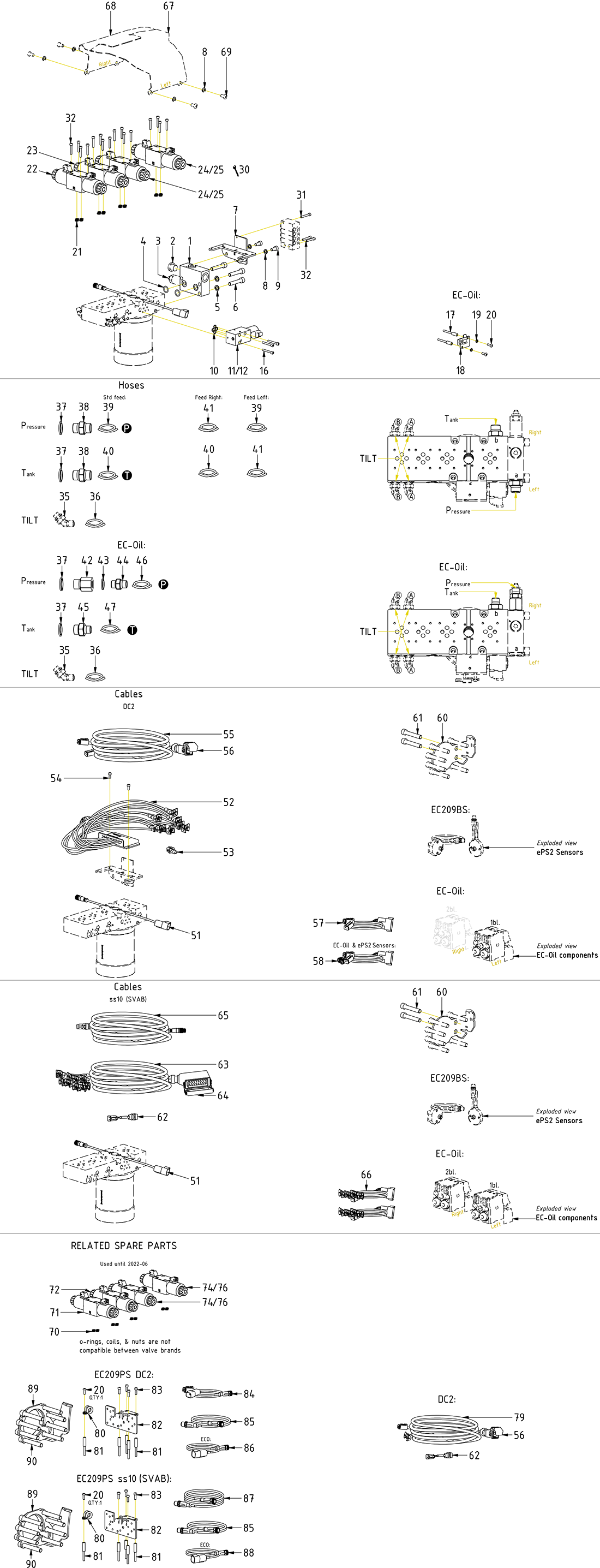

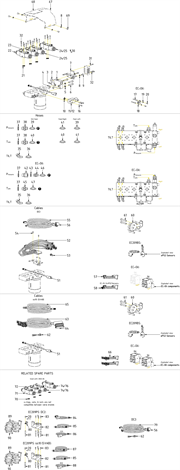

ss10 (DC2/SVAB)

Pos Item no.DescriptionExtra infoQty.

11055945 Connection block P with pressure reducer QSM45/50(POS.2-3 incl.)1

Choose

2711500 Plug VSTIR12EDOpposite side for EC-Oil1

Choose

3730288 pressure reducer SP4A-B3 EC2091

Choose

4712423 O-ring 15,54 x 2,62 NBR702

Choose

5611041 washer NL 10mm 1531053

Choose

6611515 screw MC6S 10x50 12.9 Geomet ISO4762Torque: 79Nm3

Choose

71055574 Attachment central lubrication & DC2-QSM45/501

Choose

8611040 washer NL 8mm 153104QTY: 4 part of make up6

Choose

9610431screw MC6S 8x16 12.9 untreated ISO47622

10710960 O-ring 7,65x1,78 GREEN Viton 90 shore NG44

Choose

111042047 directional valve NG4 IQS lock 12V DT ss10 Coil A(POS.10, 13, 15 incl.)1

Choose

121042190 directional valve NG4 IQS lock 24V DT ss10 Coil A(POS.10, 14, 15 incl.)1

Choose

131042065 Coil NG4 IQS lock 12V DT1

Choose

141042066 Coil NG4 IQS lock 24V DT1

Choose

15710250 Bulkhead adapter nut 1270-041

Choose

16610405 screw MC6S 5x40 12.9 untreated ISO4762Torque: 9,7Nm. QTY: 1 when EC-Oil3

Choose

171047243 screw Valve Distance NG6 M5x39Torque: 9,7Nm2

Choose

181058235 Mounting plate 1x Deutsch NG41

Choose

19611038 washer NL 5mm2

Choose

20611818 screw K6S 5x16H 10.9 FZBTorque: 8,1Nm2

Choose

21710959 O-ring 8,75x1,78 NBR 90 shore16

Choose

227001615 Directional valve NG6 prop 12V engcon JT open to tank ATOS(POS.21, 26, 29 incl.)1

Choose

237001614 Directional valve NG6 prop 12V engcon JT ATOS(POS.21, 26, 29 incl.)1

Choose

247001617 Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS(POS.21, 27, 29 incl.)2

Choose

257001616 Directional valve NG6 24V JT ATOS(POS.21, 28, 29 incl.)2

Choose

267001734 Coil 12V NG6 prop JT ATOS4

Choose

277001735 Coil 12V NG6 JT on/off ATOS4

Choose

287001736 Coil 24V NG6 JT on/off ATOS4

Choose

297001887 Nut directional valve ATOS8

Choose

31610404 screw MC6S 5x35 12.9 untreated ISO47621

Choose

32610403 screw MC6S 5x30 12.9 untreated ISO4762Torque: 9,7Nm18

Choose

357000104 adapter 402-04-04 45°Part of quick hitch assy.4

Choose

367001308 hose4

Choose

37710704 Seal washer GBR08 1/2"3

Choose

38710108 adapter 136-08-082

Choose

397001265 hose1

Choose

407001266 hose1

Choose

417001586 HoseFeed Right: Use this for "P" Feed Left: Use this for "T"1

Choose

427000705 Adapter 235-08-061

Choose

43710703 Seal washer GBR06 3/8"1

Choose

44710106 adapter 136-06-061

Choose

45710122 adapter 135-06-081

Choose

467001267 hose1

Choose

477001268 hose1

Choose

52842137 Tiltrotator module EC209-226/EC10-30 DC2 QS-DTM1

Choose

531018662 Bridge JT tool lock valve SQ DC2/ss9-2Plug JT connector "1"1

Choose

546000077 screw MC6S 5x12 12.9 untreated ISO47622

Choose

558001201 Aggregate cable-DC2-QSC DT EC206-EC2331

Choose

56810208 ILME cover 8P/12P contact with jumper(Incl. with agg.cable)1

Choose

571048529 Adapter cable ECO W-DC2 -QSC-DTMFor EC-Oil. Instead of agg.cable1

Choose

598000090 Protection Plug DTM04-6P1

Choose

601063372 End lock protection plate EC209S/EC214S/EC219S1

Choose

61611517 screw MC6S 12x70 12.9 Geomet ISO4762Torque: 136Nm8

Choose

621017478 adapter cable Deutsch - Amp contact (2P)(Previously also for DC2)1

Choose

63303465 Aggregate cable-ss5-SVAB (ILME 16P)-without aggregate box (3,5m)1

Choose

64810235 ILME cover 16P contact with jumper(Incl. with agg.cable)1

Choose

65842148 cable QS - QLM - tiltrotator DTM 4,5m1

Choose

661029599 adapter cable-ECO-ss5/ss9/ss10-DTM-->JTFor ECO45. Instead of POS.62-652

Choose

671056632 Protective cover valve block EC209 QSMPart of make up1

Choose

681056633 Protective cover valve block EC209 QSM - LipPart of make up1

Choose

69611810 screw K6S 8x16H 10.9 FZBPart of make up4

Choose

70710901 O-ring 9,25x1,78 GREEN Viton 90 shore NG6Used until 2022-0616

Choose

717000092 directional valve prop 12V engcon AMP open to tankReplaced by POS.22 (ATOS)1

Choose

72730190 directional valve prop 12V engcon AMPReplaced by POS.23 (ATOS)1

Choose

73730192 Coil 12V NG6 prop AMPUsed with POS.71-724

Choose

74730101 directional valve 12V. 4D01-3203-0302-B1-GOR-JTReplaced by POS.24 (ATOS)2

Choose

75730117 Coil 12V NG6 JT on/offUsed with POS.744

Choose

76730103 directional valve 24VReplaced by POS.25 (ATOS)2

Choose

77730118 Coil 24V NG6 JT on/offUsed with POS.764

Choose

78730135 nut directional valve Argo Hytos8

Choose

798000175 Aggregate cable-DC2-QSC EC206-EC233Replaced by POS.55 from 2020-121

Choose

806000009 Rubber Steel Clamp ø161

Choose

811034402 screw Valve Distance NG6 M5x30,55

Choose

821057538 Mounting plate-ePS-Tilt angle sensor-EC209 QSM451

Choose

83610401 screw MC6S 5x16 12.9 untreated ISO47624

Choose

848000783 adapter cable-ePS-DC2-sensor--> Tilt Module1

Choose

858000784 connection cable-ePS-rotation sensor-->1

Choose

868002459 Cable 3rd party tilt angle sensor Top ECOFor EC-Oil w. ePS NB! Only compatible with 80024771

Choose

878000824 Unit cable-ePS1

Choose

888000825 Adapter cable ePS ECOFor ECO w. ePS. Instead of POS.871

Choose

891033565 Protection sensor-ePS, SVAB MACS-V2-EC209,EC214,EC2191

Choose

906000148 screw MC6S 12x80 12.9 ZFSHL ISO4762Torque: 136Nm8
