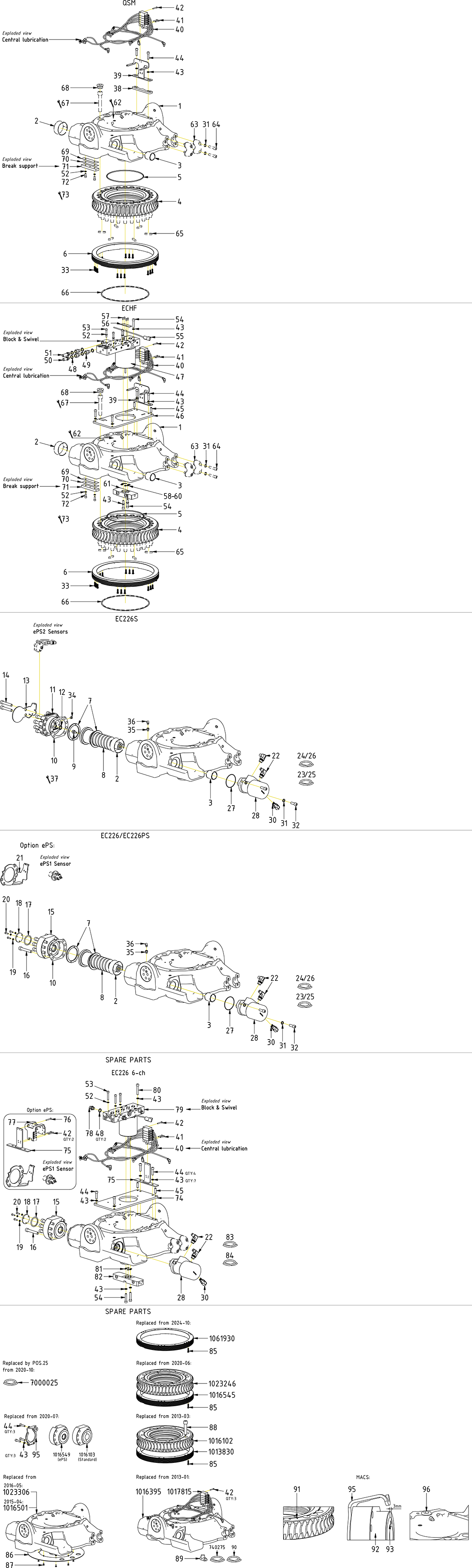

Huvudkomponenter

Pos Item no.DescriptionExtra infoQty.

11023732 rotator frame 226 v.4 yellow Laser hardened complete(POS.2-3 incl.)1

Choose

2630319 bushing WB802 85/90x40 EC261

Choose

3630102 bushing WB802 45/50x501

Choose

41057021 worm wheel EC226 24 bolt1

Choose

57001663 O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH1

Choose

71016104 axial washer EC26/EC226Face groove toward worm screw2

Choose

81016101 worm screw EC26/EC2261

Choose

91062693 Magnet Spacer Worm ScrewLoxeal 83-52. Torque: 20Nm1

Choose

101043983 Shim kit End lock EC2261

Choose

111065859 End lock EC226S Cast(POS.12 incl.)1

Choose

121063616 Seal R09-F 20x27.5x3.21

Choose

131063521 End lock protection plate EC226S1

Choose

146000354 Screw MC6S 14x80 12.9 ZFSHL ISO4762Torque: 217Nm8

Choose

151056095 End lock EC226 V21

Choose

166000158 screw MC6S 14x90 12.9 ZFSHL ISO4762Torque: 217Nm8

Choose

177000485 O-ring 27x5 NBR70 End lock ePS1

Choose

181041613 coverplate End lock EC2331

Choose

19611039 washer NL 6mm3

Choose

20611513 screw MC6S 6x20 A4 stainless ISO47623

Choose

211055677 Protection sensor -ePS V2-EC226For ePS11

Choose

22710157 adapter 401-06-08 90°2

Choose

237000957 hosePart of quick hitch1

Choose

247000958 hosePart of quick hitch1

Choose

257001404 Hose1

Choose

267000026 hose motor - EC219/EC226 - ECHF short1

Choose

277000920 O-ring 82,22x2,62 NBR 70 shore1

Choose

281022288 hydraulic motor White 200cc - EC226/EC30 + choke valve(POS.29-30 incl.)1

Choose

29720124 hydraulic motor White 200cc - EC226/EC30 without choke valve1

Choose

301044091 choke valve White 160/200cc fixed 200barTorque: 77Nm. Assy. before motor1

Choose

31611042 washer NL 12mmQTY: 8 part of top part assembly10

Choose

326000150 screw MC6S 12x35 12.9 ZFSHL ISO4762Torque: 136Nm2

Choose

331078840 Screw TX45 8x25 10,9 FZBTorque: 34Nm Tighten in cross pattern18

Choose

34711503 Plug VSTIR18ED1

Choose

35711409 lube nipple 1/8" 90°1

Choose

371047832 spacer central lubrication QSM EC214,EC219,EC2261

Choose

381031517 Attachment central lubrication + DC2-ECHF1

Choose

391021136 lube kit EC226 version 31

Choose

40610403 screw MC6S 5x30 12.9 untreated ISO47622

Choose

41610404 screw MC6S 5x35 12.9 untreated ISO47621

Choose

42611041 washer NL 10mm 153105QTY: 7 for ECHF2

Choose

43612020 screw MC6S 10x40 12.9 DacrometQTY: 4 for ECHF. Torque: 79Nm2

Choose

441015672 cylindrical pin CPK ø10x35 m62

Choose

451024824 valve plate -ECHF-EC219, EC2261

Choose

461027386 valve block-swivel 7-channel ECHF1

Choose

47710703 Seal washer GBR06 3/8"5

Choose

48710131 adapter 236-06-063

Choose

49710242 Bulkhead adapter 1260-06-321

Choose

50710262 Bulkhead adapter extended 2011-061

Choose

51611040 washer NL 8mm 153104QTY: 5 for ECHF2

Choose

52610439 screw MC6S 8x50H 8015993

Choose

53611515 screw MC6S 10x50 12.9 Geomet ISO47623

Choose

541030298 Slip ring-ECHF-DTM/ PlugFor QS. See "Slip rings"1

Choose

551026200 coverplate Slip ring QSM / ECHF v.21

Choose

56610594 screw MC6S 5x10 12.9 untreated ISO47624

Choose

57712422 O-ring 6,07x1,78 NBR702

Choose

58710973 O-ring 12,42x1,78 NBR 70 shore4

Choose

59710912 O-ring 15,6x1,78 NBR701

Choose

601028391 connection block under ECHF v.3Guide with spring pin from swivel1

Choose

621016393 clamping half EC219/EC226 completePart of top part4

Choose

636000155 screw MC6S 12x55 12.9 ZFSHL ISO4762Part of top part. Torque: 136Nm8

Choose

64650102 Feather key EC05B,EC15, EC20,EC214,EC219,EC226 (550480)Part of quick hitch6

Choose

65710908 O-ring 319,3x5,7 - quick hitch EC10/EC219/EC226Part of quick hitch1

Choose

67650408 RP M36x2 Din 908 FZB6

Choose

681023344 shims break support - EC226, EC233 - 0,1mm1

Choose

691023447 shims break support - EC226, EC233 - 0,3mm1

Choose

701023292 Platta break support - EC226, EC2331

Choose

716000157 screw MC6S 8x20H 12.9 ZFSHL ISO47622

Choose

731011515 valve plate -EC219/EC26/EC2261

Choose

741018052 Attachment central lubrication EC219-EC2261

Choose

75610405 screw MC6S 5x40 12.9 untreated ISO47621

Choose

761029973 Attachment angle sensor-EC219,EC226-5V/6CH-swivel1

Choose

77710106 adapter 136-06-062

Choose

781030297 valve block-swivel 5v & 6-ch Slip ring-DTM1

Choose

79610460 screw MC6S 10x60 12.9 untreated ISO47621

Choose

80710901 O-ring 9,25x1,78 GREEN Viton 90 shore NG66

Choose

811024045 connection block 6-ch EC15,EC226-for Slip ring"1" on swivel against "X" on block1

Choose

82742332 hose motor - EC226 - long - version 3 Rotated motor1

Choose

84612201 screw TX40 M8x30 FZB 10.+Torque: 34Nm. Used until 2024-1018

Choose

851011242 wear washer EC26/EC226Used until 2016-051

Choose

86610108 screw M6S 6x12 8.8 FZBUsed until 2016-058

Choose

87610556 screw MC6S 20x90 12.9 untreated ISO4762Used until 2013-1012

Choose

88710510 adapter DSVW-15 LR HFX banjoUsed until 2013-031

Choose

89740274 hose hydraulic motor - EC26/226 - shortReplaced by POS.83 from 2013-031

Choose

906000047 Magnet Neodym35 8x5x3mm SVAB MACSLoctite 415. Harden 1 minute1

Choose

911028331 End lock EC226 MACS1

Choose

921043698Inductive sensor M8 PNP NO 4mm - SVAB MACSDistance 3mm. Nut torque: 3Nm1

941016554 Protection sensor ePS, SVAB MACS - EC226(Also for ePS until 2020-07)1

Choose

95650411 Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS1

Choose
