Number of hits 31

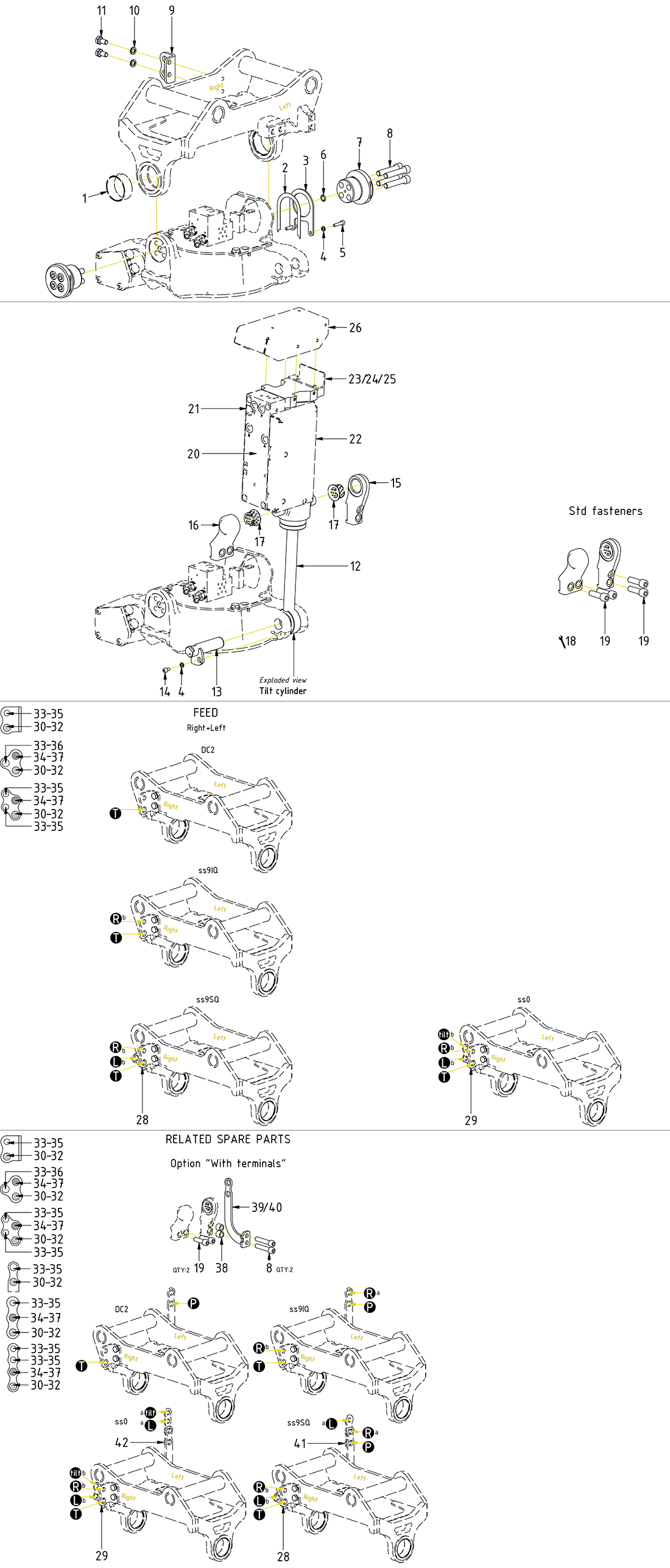

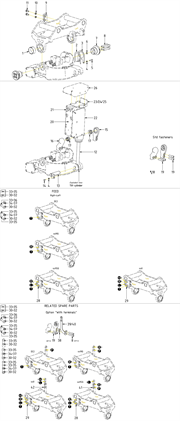

Pos
Item no.
Description
Extra info
Qty.
1
6000004
tilt bushing EC204 55/60x25 WB802
(Incl. in Top part)
2
Choose
2
1027820
shims tilt axle - EC204 0,5mm
Use as required
1
Choose
3
1027785
tilt axial washer EC204
1
Choose
4
611039
washer NL 6mm
3
Choose
5
6000083
screw MC6S 6x25 12.9 untreated ISO4762
2
Choose
6
710968
O-ring 9,92x2,62 NBR70 EC209/EC219/EC226 cylinder axle
2
Choose
7
1016576
tilt axle EC204
2
Choose
8
6000140
screw MC6S 12x60 12.9 ZFSHL ISO4762
Torque: 136Nm
8
Choose
9
1045070
hose terminal Top part EC204 right
For Feed Right+Left
1
Choose
10
611041
washer NL 10mm 153105
For Feed Right+Left
4
Choose
11
610141
screw M6S 10x20 8.8 FZB
For Feed Right+Left
2
Choose
12
1029849
tilt cylinder EC204
1
Choose
13
1016572
cylinder axle EC204
1
Choose
14
611512
screw MC6S 6x10 12.9 ZFSHL ISO4762
1
Choose
15
1036606
yoke bracket EC204 rear cast complete
(POS.17 incl.)
1
Choose
16
1029052
yoke bracket EC204 forward complete
(POS.17 incl.)
1
Choose
17
6000001
bushing BWG-F 25/31/38/1,5x20
2
Choose
20
7000635
valve block EC204 tilt cylinder complete with over center
Part of control system
1
Choose
21
1029781
cover plate-tilt cylinder-right-EC204
Part of control system
1
Choose
22
1068975
Cover plate Tilt cylinder-left-EC02B/EC204
Part of control system
1
Choose
23
1029826
coverplate-EC204-tilt cylinder-DC2/ss10/ss5
Part of control system
1
Choose
24
1033484
hose terminal-EC204-tilt cylinder-ss9/ss0
Part of control system
1
Choose
25
1043991
hose terminal-EC204-tilt cylinder-ss9/ss0 R/L
Part of control system
1
Choose
26
1029902
protective cover tilt cylinder EC204
Part of control system
1
Choose
28
1011565
holder terminal (2x3/8" + 1x1/4")
For ss9SQ
1
Choose
29
1026096
hose terminal-EC206-sheet metal for 2 låsslang-solid terminal
For ss0
1
Choose
38
1009999
spacer 15mm terminal left EC204
2
Choose
39
1053333
Hose bracket UNI Top part EC204 left
1
Choose
40
1053732
Hose bracket S40- top part EC204/EC204B left
1
Choose
41
1011454
hose terminal EC05B/EC206-straight Plate for låsslang
For ss9SQ
1
Choose
42
1055284
hose terminal EC204/EC206-straight Plate for 2x låsslang
For ss0
1
Choose
