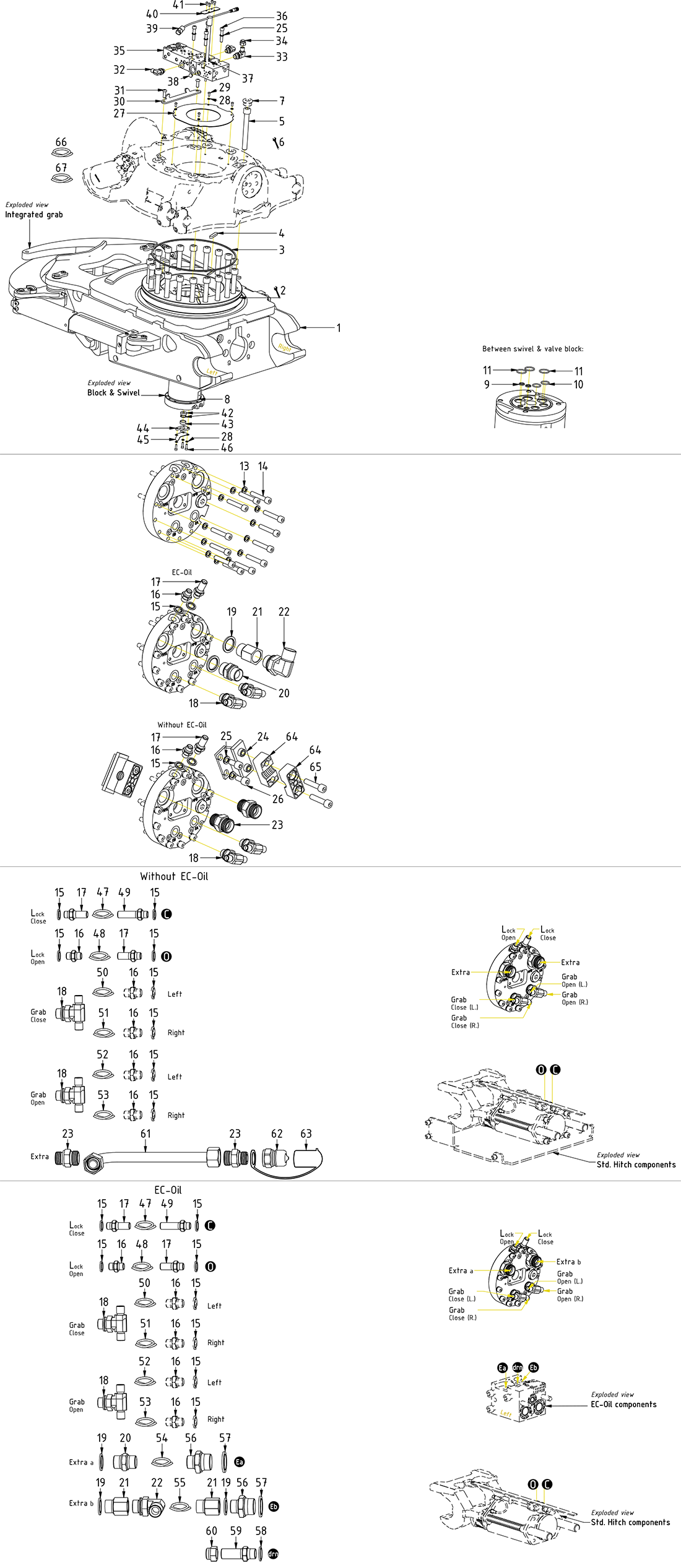

QSM QS80 GR30

Pos Item no.DescriptionExtra infoQty.

11069961 Quick hitch QS80 GR30 EC233 QSM1

Choose

3710924 O-ring centre ring-EC30/ quick hitch -EC233-359,3x5,71

Choose

4650103 Feather key 12x8x60 EC30, EC2335

Choose

56000101 screw MC6S 20x170 12.9 untreated ISO4762Torque: 649Nm20

Choose

7650408 RP M36x2 Din 908 FZBPart of rotator frame6

Choose

81072872 Swivel 7-channel QSM with connection block QS80/CW30/401

Choose

97000579 O-ring square 7,66x1,68 nbr70 NG42

Choose

10710975 O-ring 14x1,78 NBR 70 shore2

Choose

11710977 O-ring 17,17x1,78 NBR 70 shore3

Choose

13611040 washer NL 8mm 15310412

Choose

146000399 Screw MC6S 8x45 12.9 Geomet ISO476212

Choose

15710702 Seal washer GBR04 1/4"QTY: 4 part of Integrated grab8

Choose

16710135 adapter 138-04-29 ( compact 136-04-04 )QTY: 4 part of Integrated grab5

Choose

17710240 Bulkhead adapter 1260-04-042

Choose

18712224 adapter 403-04-062

Choose

19710706 Seal washer GBR12 3/4"3

Choose

20710126 adapter 136-12-121

Choose

21712226 adapter 236-12-122

Choose

22712201 adapter 401-12-12 90°1

Choose

237001855 Adapter - cutting ring M30x2 - G3/44

Choose

241072385 Pipe holder QS80GR30/QS80 QSM2

Choose

25611041 washer NL 10mm 1531058

Choose

26610451screw MC6S 10x20 12.9 untreated ISO47624

271052691 cover swivel EC233 QSM1

Choose

28611039 washer NL 6mm7

Choose

296000242 screw K6S 6x14 10.9 FZB4

Choose

301048076 Swivel stop QSM EC2331

Choose

316000193 screw MK6S 10x30H 10.9 FZBLoxeal 83-522

Choose

32710152 adapter 401-06-06 90°Assemble before valve block2

Choose

33710157 adapter 401-06-08 90°Assemble before valve block1

Choose

34711626 protective cover 03015506001

Choose

351049297 valve block QSM-steel1

Choose

36612022 screw MC6S 10x55 12.9 Geomet ISO4762Torque: 79Nm Tighten in cross pattern4

Choose

37710983 O-ring 21,95x1,78 NBR 70 shore(Incl. with valve block)2

Choose

387001983 Plastic plug KS 15 G 1/4"(Incl. with valve block)1

Choose

391046763 Slip ring-QSM60 M12Mount with marine silicone1

Choose

401050384 coverplate Slip ring QSM1

Choose

41610594 screw MC6S 5x10 12.9 untreated ISO47624

Choose

421046691 rubber buffer Ø25,5/10 L7,5 Slip ring QSMUse the outer ring. Washer down1

Choose

431046692 ring Slip ring QSM1

Choose

441046689 Platta Slip ring QSM1

Choose

451046694 sheet metal Steering cable Slip ring QSM1

Choose

46610310 screw MC6S 6x20 8.8 FZB ISO47623

Choose

477001876 Hose lock - A - Closed1

Choose

487001893 Hose lock - B - Open1

Choose

49710261 Bulkhead adapter extended 1260-04-401

Choose

507001891 Hose grab - Left - B1

Choose

517001892 Hose grab - Right - B1

Choose

527001877 Hose grab - Left - A1

Choose

537001878 Hose grab - Right - A1

Choose

547000681Hose - Extra 1 - A - ECO1

557001874 Hose - Extra 1 - B - ECO1

Choose

567000723 adapter 135-12-16 - 3/4"x1"2

Choose

57710707 Seal washer GBR16 1"2

Choose

58710704 Seal washer GBR08 1/2"QTY: 2 w/o EC-Oil1

Choose

59710263 Bulkhead adapter extended 2011-081

Choose

60711627 protective cover 03015508001

Choose

611072343 Pipe extra QS80 QSM/CW30,40 QSM2

Choose

62790193 Quick coupling 3/4" male 75202

Choose

63790195 Dust protection 3/4" Coupling-male 75262

Choose

647001889 Tube clamp TSLK4020 PP4

Choose

65612021 screw MC6S 10x45 12.9 Dacromet4

Choose

667000451 hose1

Choose

677000903 hose1

Choose

68710108 adapter 136-08-08Drain. Remove plug fr. connectionbl.1

Choose

697001895 Hose drainDrain1

Choose

70710252 Bulkhead adapter nut 1270-06Drain1

Choose

71710244 Bulkhead adapter 1260-08-08Drain1

Choose

72790115 Quick coupling 1/2" male 5020Drain1

Choose

73790121 Dust protection 1/2" male 5026Drain1

Choose
