Number of hits 44

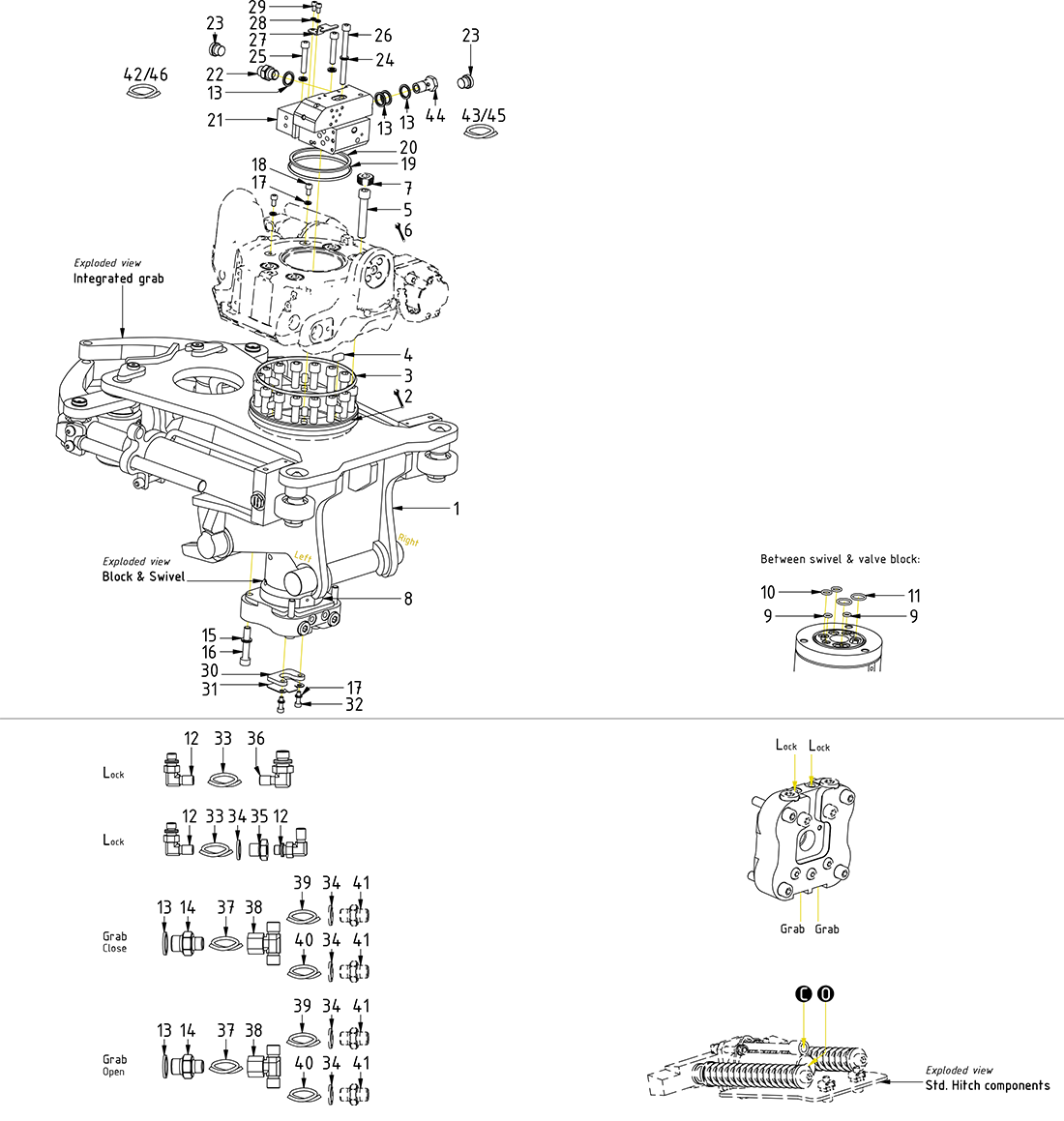

Pos
Item no.
Description
Extra info
Qty.
1
1078752
Quick hitch CW05GP 0° GR05 EC204B
1
Choose
3
7001935
O-ring 155x5,0 NBR 70 shore
1
Choose
4
6000416
Feather key 10x8x22 DIN6885 EC204B
8
Choose
5
611517
screw MC6S 12x70 12.9 Geomet ISO4762
Torque: 136Nm
16
Choose
7
7000457
pipeplug DIN 906 M22x1,5
Part of rotator frame
4
Choose
8
1080474
Swivel 6-channel QSM with connection block CW05GP EC204B
1
Choose
9
7001568
O-ring 5,28x1,78 NBR 70 shore
2
Choose
10
7001939
O-ring 7,66x1,78 NBR 70 shore
2
Choose
11
710973
O-ring 12,42x1,78 NBR 70 shore
2
Choose
12
710293
adapter 401-02-02 90°
3
Choose
13
710703
Seal washer GBR06 3/8"
QTY depends on config. (2-6)
6
Choose
14
710118
adapter 135-04-06
2
Choose
15
611041
washer NL 10mm 153105
4
Choose
16
612022
screw MC6S 10x55 12.9 Geomet ISO4762
4
Choose
17
611039
washer NL 6mm
4
Choose
18
6000352
Screw MC6S 6x12H 12.9 ZFSHL ISO4762
2
Choose
19
7001941
O-ring 96,0x4,0 NBR 70 shore
1
Choose
20
1075886
Protection plate O-ring 91x100/3 EC204B
1
Choose
21
1078622
Valve block EC204B
Part of control system assy.
1
Choose
22
710106
adapter 136-06-06
For DC2
1
Choose
23
711504
Plug VSTIR38ED
For ss9, ss0
2
Choose
24
611040
washer NL 8mm 153104
6
Choose
25
610438
screw MC6S 8x45 12.9 untreated ISO4762
5
Choose
26
610446
screw MC6S 8x95 12.9 untreated ISO4762
1
Choose
27
1077615
Cover plate slip ring EC204B
1
Choose
28
611038
washer NL 5mm
2
Choose
29
610594
screw MC6S 5x10 12.9 untreated ISO4762
2
Choose
30
1066142
Plate Slip ring QSM/CW EC204B/ QSM EC206B
1
Choose
31
1066144
Plate Steering-Slip ring cable QSM/CW EC204B/ QSM EC206B
1
Choose
32
610310
screw MC6S 6x20 8.8 FZB ISO4762
2
Choose
33
7002069
Hose
2
Choose
34
710702
Seal washer GBR04 1/4"
QTY: 4 part of Integrated grab
5
Choose
35
710236
adapter 234-04-02
1
Choose
36
7001096
adapter 401-02-04 90°
1
Choose
37
7002066
Hose
2
Choose
38
710184
adapter 853-04-99
2
Choose
39
7002067
Hose
2
Choose
40
7002068
Hose
2
Choose
41
710135
adapter 138-04-29 ( compact 136-04-04 )
Part of Integrated grab
4
Choose
42
7001988
Hose
1
Choose
43
7001987
Hose
1
Choose
44
710272
banjo bolt 4451-06
For DC2
1
Choose
45
7002025
Hose
1
Choose
46
7002026
Hose
1
Choose
