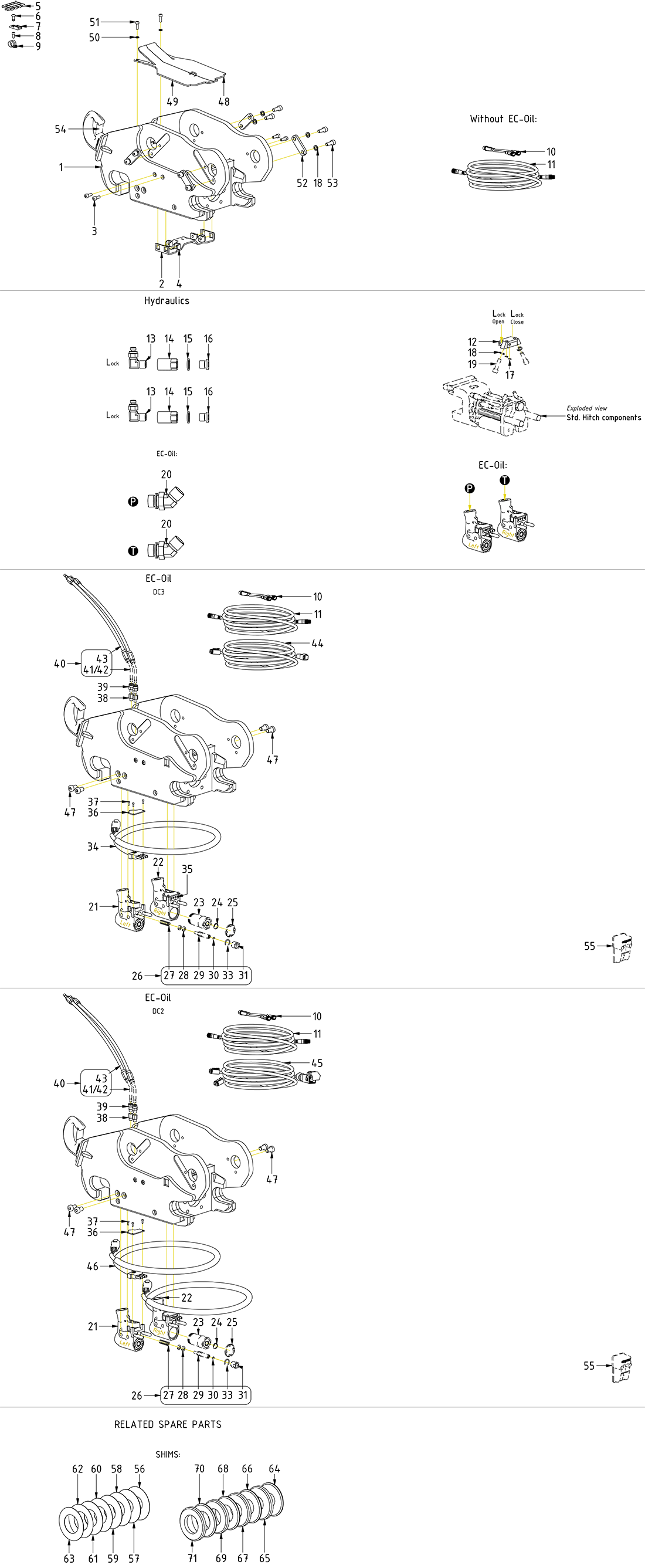

S40 (from 2025)

Pos Item no.DescriptionExtra infoQty.

21078275 Connection plate S40 bolted1

Choose

36000017 screw MC6S 6x16 12.9 ZFSHL4

Choose

46000411 Cage nut M64

Choose

58000703 Strain relief plate ZL60 4x1

Choose

66000294 Blindnit 4,0x12,3 DIN7337 alu/stålQTY: 4 for DC22

Choose

7810662 holder-Deutsch DT/DTM contactFor DC22

Choose

86000077 screw MC6S 5x12 12.9 untreated ISO4762QTY: 2 for DC21

Choose

96000241 Rubber Steel Clamp ø8QTY: 2 for DC21

Choose

108002139 Cable M12-8P -> 2x M12-4S Y-splitter QSM/SAttach to QS sensors1

Choose

118002249 Cable QS - QLM - Quick Hitch M12-4,35mAttach to Y-split1

Choose

121079367 QSM40 Lock Cylinder Adapter S401

Choose

137002020 Adapter ORFS 067005-04-022

Choose

141071217 Adapter tube-lock short S45/S60/S702

Choose

15710702 Seal washer GBR04 1/4"2

Choose

16711505 Plug Din 908 1/4"2

Choose

177001568 O-ring 5,28x1,78 NBR 70 shorePart of Std. Hitch components2

Choose

18611040 washer NL 8mm 153104QTY: 2 part of Std. Hitch comp.10

Choose

19611519 screw MC6S 8x30 Geomet ISO4762Part of Std. Hitch components2

Choose

207000091 adapter 402-08-08 45°2

Choose

211078891 Block ECO40 W-S40 QH-1hy 1cl(POS.23, 25-26 incl.)1

Choose

221078892 Block ECO40 W-S40 QH-1hy(POS.23, 25 incl.)1

Choose

231053029 Coupling ECO 3/8" female V3Torque: 60Nm. (POS.24 incl.)2

Choose

241052976 flat seal for ECO 3/8" V32

Choose

251028274 dirt protection block ECO 3/8"2

Choose

261050794 Central lubrication kit ECO W V2(POS.27-33 incl.)1

Choose

271024113 spring 60581

Choose

281024112 piston sealing KPOR130 12x7,1x2,22

Choose

291024111fat piston for ECO block1

301024115 O-ring 3,69x1,78 NBR 90 shore1

Choose

311047688 Nut greasepiston V2Wrap with thread sealing tape1

Choose

32712429 O-ring 9,25 x 1,78 NBR70Located inside nut1

Choose

337000767 O-ring 14x2 70 shore1

Choose

348001892 Power plug ECO40 W S40-QH DC31

Choose

351057572 Power plug ECO40 W-male-housing1

Choose

361078257 Cover plate ECO40 W-S40-QH2

Choose

376000325 Screw MC6S 2.5x8 8.8 FZB ISO47626

Choose

387000688 extender 18mm M8x12

Choose

39790185 Coupling straight Push-In Ø6mm M8x12

Choose

407001531 Hose kit - Machine hitch - Lubrication ECO40 W(POS.41-43 incl.)1

Choose

427001521 Tube sleeve straight Push-In - 20mmDepends on the specific hitch model2

Choose

448002371 Unit Cable DC3 EC206-EC233 & MQH S40-S801

Choose

458002522 Unit cable-DC2 ECO40W-S-QH-DT 2,5mAttach to both 4P1

Choose

468002521 Power plug ECO40 W S40-QH DC22

Choose

476000326 Screw MLC6S 10x16 10.9 FZBTorque: 65Nm4

Choose

491080055 Cover plate S40 left1

Choose

50611038 washer NL 5mm2

Choose

516000437 Screw MC6S 5x16 8.8 FZB ISO47622

Choose

521073400 Lock plate-UNI axle-S454

Choose

536000157 screw MC6S 8x20H 12.9 ZFSHL ISO47628

Choose

54404249 locktab Pejo 201Lifting hook spare part1

Choose

551062401 Protection ECO40 W magnet - quick hitch castPart of make up2

Choose

561080574 Shim Ø90/36 - 0,51

Choose

571080575 Shim Ø90/36 - 11

Choose

581079619 Shim Ø90/41 - 0,51

Choose

591079620 Shim Ø90/41 - 11

Choose

601080576 Shim Ø90/46 - 0,51

Choose

611080577 Shim Ø90/46 - 11

Choose

621080578 Shim Ø90/51 - 0,51

Choose

631080579 Shim Ø90/51 - 11

Choose

641080580 Shim chamfered Ø90/36 - 51

Choose

651080581 Shim chamfered Ø90/36 - 101

Choose

661079614 Shim chamfered Ø90/41 - 51

Choose

671079615 Shim chamfered Ø90/41 - 101

Choose

681080582 Shim chamfered Ø90/46 - 51

Choose

691080583 Shim chamfered Ø90/46 - 101

Choose

701080584 Shim chamfered Ø90/51 - 51

Choose

711080585 Shim chamfered Ø90/51 - 101

Choose
