Huvudkomponenter

Pos Item no.DescriptionExtra infoQty.

11042814 rotator frame 233 yellow complete(POS.2-3 incl.)1

Choose

26000105 bushing WB802 105/110x501

Choose

3630301 bushing WB802 60/65x601

Choose

41039142 worm wheel EC2331

Choose

57001664 O-ring 279,2x5,7 NBR 90 shore worm wheel EC2331

Choose

61061931Bearing ring M10 EC2331

71039899 axial washer EC233Face groove toward worm screw2

Choose

81039334 worm screw EC2331

Choose

91062693 Magnet Spacer Worm ScrewLoxeal 83-52. Torque: 20Nm1

Choose

101073356 Shim kit End lock - EC2331

Choose

111065887 End lock EC233S Cast1

Choose

121063616 Seal R09-F 20x27.5x3.21

Choose

131064168 End lock protection plate EC2331

Choose

146000148 screw MC6S 12x80 12.9 ZFSHL ISO4762Torque: 136Nm12

Choose

151040901 End lock EC233 ePS + MACS1

Choose

167000485 O-ring 27x5 NBR70 End lock ePS1

Choose

171041613 coverplate End lock EC2331

Choose

18611039 washer NL 6mm3

Choose

19611513 screw MC6S 6x20 A4 stainless ISO47623

Choose

201040940 Protection sensor-ePS,SVAB MACS-EC233For ePS11

Choose

21710157 adapter 401-06-08 90°1

Choose

227000903 hosePart of quick hitch1

Choose

23710122 adapter 135-06-081

Choose

247000451 hosePart of quick hitch1

Choose

257000451 hose2

Choose

267000920 O-ring 82,22x2,62 NBR 70 shore1

Choose

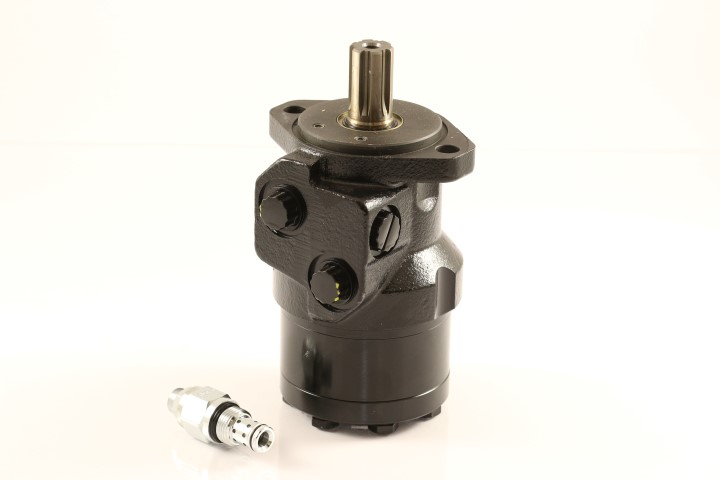

271022288 hydraulic motor White 200cc - EC226/EC30 + choke valve(POS.28-29 incl.)1

Choose

28720124hydraulic motor White 200cc - EC226/EC30 without choke valve1

291044091choke valve White 160/200cc fixed 200barTorque: 77Nm. Assy. before motor1

30611042 washer NL 12mm2

Choose

316000150 screw MC6S 12x35 12.9 ZFSHL ISO4762Torque: 136Nm2

Choose

326000119 screw TX50 M10x30 A2K 10.9 FZBTorque: 65Nm Tighten in cross pattern21

Choose

33711503 Plug VSTIR18EDQTY: 2 for EC233S1

Choose

351050379 spacer central lubrication QSM EC2331

Choose

361040022 Attachment central lubrication + DC2-EC2331

Choose

371040866 lube kit EC2331

Choose

38610403 screw MC6S 5x30 12.9 untreated ISO47622

Choose

39610404 screw MC6S 5x35 12.9 untreated ISO47621

Choose

40611041 washer NL 10mm 153105QTY: 7 for ECHF2

Choose

41610494 screw MC6S 10x35 12.9 untreated ISO4762QTY: 4 for ECHF. Torque: 79Nm2

Choose

421015672 cylindrical pin CPK ø10x35 m62

Choose

431039803 valve plate -ECHF-EC2331

Choose

441027386 valve block-swivel 7-channel ECHF1

Choose

45710106 adapter 136-06-062

Choose

46611040 washer NL 8mm 153104QTY: 5 for ECHF2

Choose

47610439 screw MC6S 8x50H 8015993

Choose

48611515 screw MC6S 10x50 12.9 Geomet ISO47623

Choose

491030298 Slip ring-ECHF-DTM/ PlugFor QS. See "Slip rings"1

Choose

501026200 coverplate Slip ring QSM / ECHF v.21

Choose

51610594 screw MC6S 5x10 12.9 untreated ISO47624

Choose

52712422 O-ring 6,07x1,78 NBR702

Choose

53710973 O-ring 12,42x1,78 NBR 70 shore4

Choose

54710912 O-ring 15,6x1,78 NBR701

Choose

551028391 connection block under ECHF v.3Guide with spring pin from swivel1

Choose

571040020 clamping half EC233 completePart of top part4

Choose

586000160 screw MC6S 14x60 12.9 ZFSHL ISO4762Part of top part. Torque: 217Nm8

Choose

59650103 Feather key 12x8x60 EC30, EC233Part of quick hitch5

Choose

60710924 O-ring centre ring-EC30/ quick hitch -EC233-359,3x5,7Part of quick hitch1

Choose

62650408 RP M36x2 Din 908 FZB6

Choose

631023344 shims break support - EC226, EC233 - 0,1mm1

Choose

641023447 shims break support - EC226, EC233 - 0,3mm1

Choose

651023292 Platta break support - EC226, EC2331

Choose

666000157 screw MC6S 8x20H 12.9 ZFSHL ISO47622

Choose

696000047 Magnet Neodym35 8x5x3mm SVAB MACSLoctite 415. Harden 1 minute1

Choose

701043698Inductive sensor M8 PNP NO 4mm - SVAB MACSDistance 3mm. Nut torque: 3Nm1

71650411 Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS1

Choose
