Number of hits 43

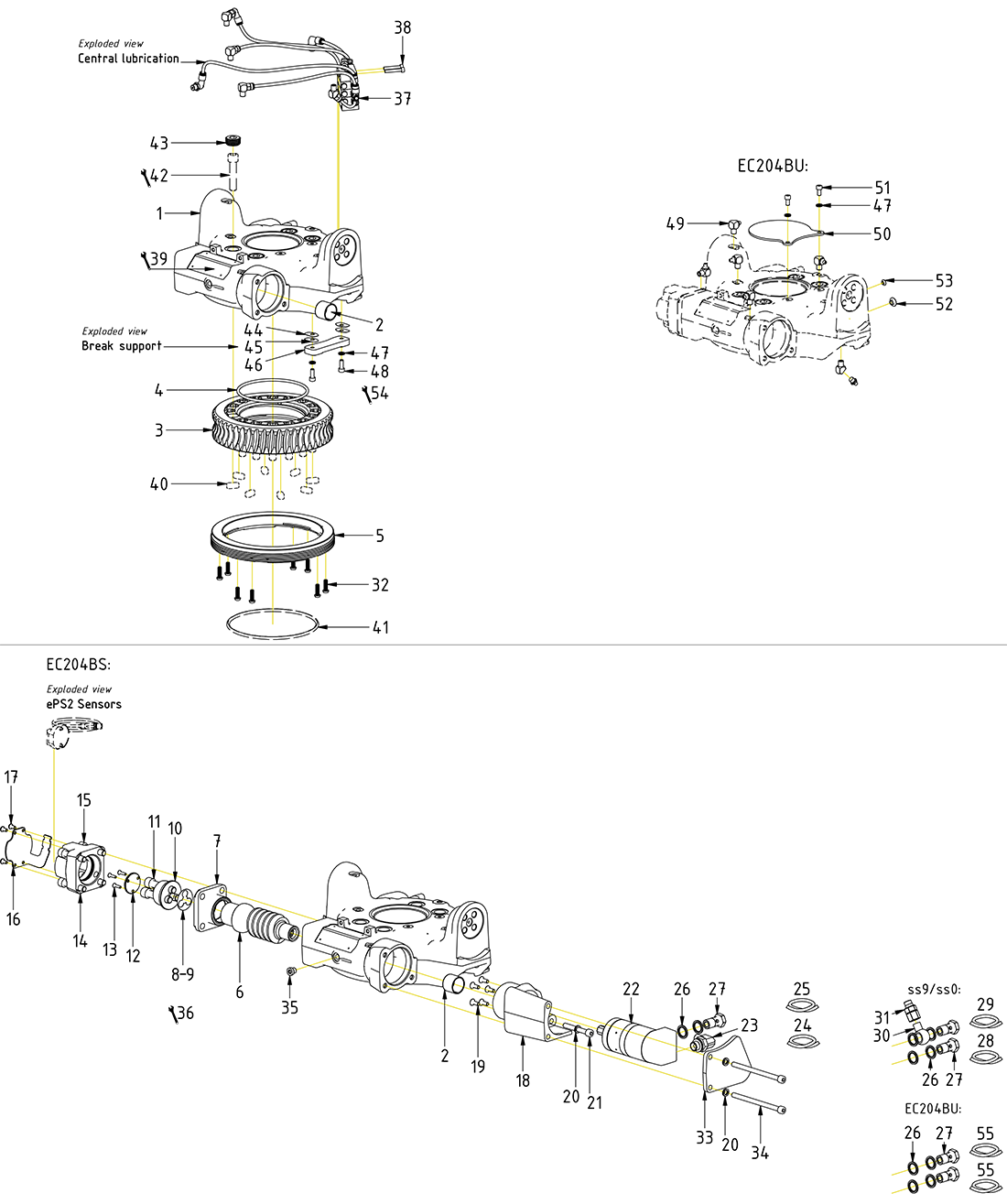

Pos
Item no.
Description
Extra info
Qty.
1
1079194
Rotator frame 204B engconYellow complete with steering
1
Choose
2
630004
bushing WB700 28/31x25
1
Choose
3
1060355
Worm wheel EC204B
1
Choose
4
7001973
O-ring 120x4,5 NBR 90 shore
1
Choose
5
1079542
Bearing ring EC204B with steering
1
Choose
6
1075865
Worm screw EC204B
1
Choose
7
1075889
Screw bushing EC204B
1
Choose
8
1076733
Shim Worm screw EC204B 0,3mm
Use as required
1
Choose
9
1076734
Shim Worm screw EC204B 0,1mm
Use as required
1
Choose
10
1075864
Washer worm screw EC204B
1
Choose
11
6000155
screw MC6S 12x55 12.9 ZFSHL ISO4762
QTY: 16 part of quick hitch Torque: 136Nm
19
Choose
12
1076455
Bracket with magnet EC204B rotation sensor
1
Choose
13
6000414
Screw MF6S 4x16 10.9 FZB ISO10642
3
Choose
14
1076101
End Lock EC204B
1
Choose
15
611515
screw MC6S 10x50 12.9 Geomet ISO4762
Torque: 79Nm
4
Choose
16
1076341
End lock protection plate EC204BS
1
Choose
17
6000408
Screw K6S 5x10 10.9 FZB ISO7380
4
Choose
18
1077523
Motor cover / Attachment yellow EC204B
1
Choose
19
610604
screw MF6S 6x16 10.9 untreated
Torque: 14Nm. Loxeal 55-02
5
Choose
20
611040
washer NL 8mm 153104
3
Choose
21
6000417
Screw MC6S 8x60 12.9 ZFSHL ISO4762
1
Choose
22
720119
hydraulic motor Charlynn 50cc J-motor - EC02/EC204
1
Choose
23
710154
adapter 401-04-06 90°
1
Choose
24
7001988
Hose
Part of quick hitch assy.
1
Choose
25
7002026
Hose
Part of control system assy.
1
Choose
26
710703
Seal washer GBR06 3/8"
2
Choose
27
7001987
Hose
Part of quick hitch assy.
1
Choose
28
7002025
Hose
Part of control system assy.
1
Choose
29
710272
banjo bolt 4451-06
1
Choose
30
1078839
Screw TX30 6x16 10,9 FZB
Torque: 14Nm Tighten in cross pattern
8
Choose
31
1076964
Motor cover EC204B
1
Choose
32
6000139
screw MC6S 8x120 12.9 ZFSHL ISO4762
Torque: 40Nm
2
Choose
33
711503
Plug VSTIR18ED
1
Choose
35
1079207
Lubrication kit EC204B
1
Choose
36
610403
screw MC6S 5x30 12.9 untreated ISO4762
2
Choose
38
6000416
Feather key 10x8x22 DIN6885 EC204B
Part of quick hitch
8
Choose
39
7001935
O-ring 155x5,0 NBR 70 shore
Part of quick hitch
1
Choose
40
7000457
pipeplug DIN 906 M22x1,5
4
Choose
41
1076793
Shim break support - EC204B - 0,3mm
2
Choose
42
1076792
Shim break support - EC204B - 0,1mm
2
Choose
43
1076498
Plate break support - EC204B
1
Choose
44
611039
washer NL 6mm
2
Choose
45
6000017
screw MC6S 6x16 12.9 ZFSHL
2
Choose
