Number of hits 63
PosItem no.DescriptionExtra infoQty.
1101277rotator frame 20HD yellow1
Choose
21010758axial washer with ear EC10,15,20,209,214,2192
3302807centre ring - EC20 - ska shimsas, as of 05-01-011
Choose
Motor cover EC204100010Motor cover EC201
Choose
5400310wear washer EC201
Choose
6300945worm wheel EC20 reversed1
Choose
7300030worm screw EC201
Choose
8611006washer BRB FZB 10,5x22x24
Choose
9610142screw M6S 10x25 8.8 FZB4
Choose
10630102bushing WB802 45/50x501
Choose
11630103bushing WB802 80/85x401
Choose
12300118protective cover valve block EC201
Choose
13610141screw M6S 10x20 8.8 FZB4
Choose
14610528screw MC6S 16x80 12.9 untreated ISO476212.96
Choose
151001639shims End lock EC10/EC15/EC20 0,3mm1
Choose
16405126shims End lock EC10/EC15/EC20 0,4mm1
Choose
17405127shims End lock EC10/EC15/EC20 0,5mm1
Choose
18405675shims End lock EC10/EC15/EC20 0,6mm1
19405676shims End lock EC10/EC15/EC20 0,7mm1
201001638shims End lock EC10/EC15/EC20 0,8mm1
211001712shims End lock EC10/EC15/EC20 0,9mm1
22711403lube nipple 1/8 straight15
Choose
23302830tilt axle EC20 hardened2
Choose
24202055shims centre ring - EC20 - 0,4mm1
Choose
25202056shims centre ring - EC20 - 0,5mm1
Choose
26201793shims centre ring - EC20 - 0,7mm1
Choose
27201405shims centre ring - EC20 - 0,8mm1
28201406shims centre ring - EC20 - 0,9mm1
29201365shims centre ring - EC20 - 1,0mm1
Choose
30201407shims centre ring - EC20 - 1,1mm1
Choose
spacer M12 L15 countersunk311008243spacer M12 L15 countersunk2
Choose
32610580screw MC6S 16x90 skalleØ26,5 14.99 untreated ISO476212.910
Feather key EC05B,EC15, EC20,EC214,EC219,EC226 (550480)33650102Feather key EC05B,EC15, EC20,EC214,EC219,EC226 (550480)4
Choose
34710908O-ring 319,3x5,7 - quick hitch EC10/EC219/EC2261
Choose
35710909O-ring 419,3x5,7 quick hitch EC201
Choose
36610633screw MF6S 10x20 10.9 untreated2
Choose
37630301bushing WB802 60/65x602
Choose
38610634screw MF6S 8x20 10.9 untreated5
Choose
39610108screw M6S 6x12 8.8 FZB8
Choose
40610581screw MC6S 16x100 14.99 untreated ISO476214.9910
O-ring 10,77x2,62 NBR7042710910O-ring 10,77x2,62 NBR701
Choose
hydraulic motor White 160cc EC15 option without choke valve43720123hydraulic motor White 160cc EC15 option without choke valve255-160-A68-04-BAAAA1
44611042washer NL 12mm2
Choose
45610474screw MC6S 12x30 12.9 untreated ISO47622
shims tilt axle - EC20 - spring steel 61x95x0,546650501shims tilt axle - EC20 - spring steel 61x95x0,50,5 mm1
Choose
shims tilt axle - EC20 - spring steel 61x95x147650502shims tilt axle - EC20 - spring steel 61x95x11 mm1
Choose
48610555screw MC6S 20x80 12.9 untreated ISO476212.912
washer NL 10mm 15310549611041washer NL 10mm 1531055
Choose
501008262shims break support - EC15B, EC20B - 0,1mmIf needed1
Choose
511013256shims break support - EC15B, EC20B - 0,3mmIf needed1
Choose
521006878Platta break support - EC15B, EC20B1
Choose
53710122adapter 135-06-082
Choose
54710704Seal washer GBR08 1/2"2
Choose
55710216adapter angle 030090-06-061
Choose
56610439screw MC6S 8x50H 8015992
Choose
57611040washer NL 8mm 1531042
Choose
58710106adapter 136-06-062
Choose
59710703Seal washer GBR06 3/8"2
Choose
60610461screw MC6S 10x70 12.9 untreated ISO47621
Choose
61740208hoseRM06 4512-06-06/4512-06-06 KL5001
Choose
62740240hose hydraulic motor - EC20 - White & Parker, cut length 410RM06 4509-06-06/4509-06-06 KL4101
Choose
641014716End lock EC10/EC15/EC20 outer shim castReplaces 303270 From 13061
Choose
65711527Plug Din 906 (M8x1) electrogalvanized1
Choose

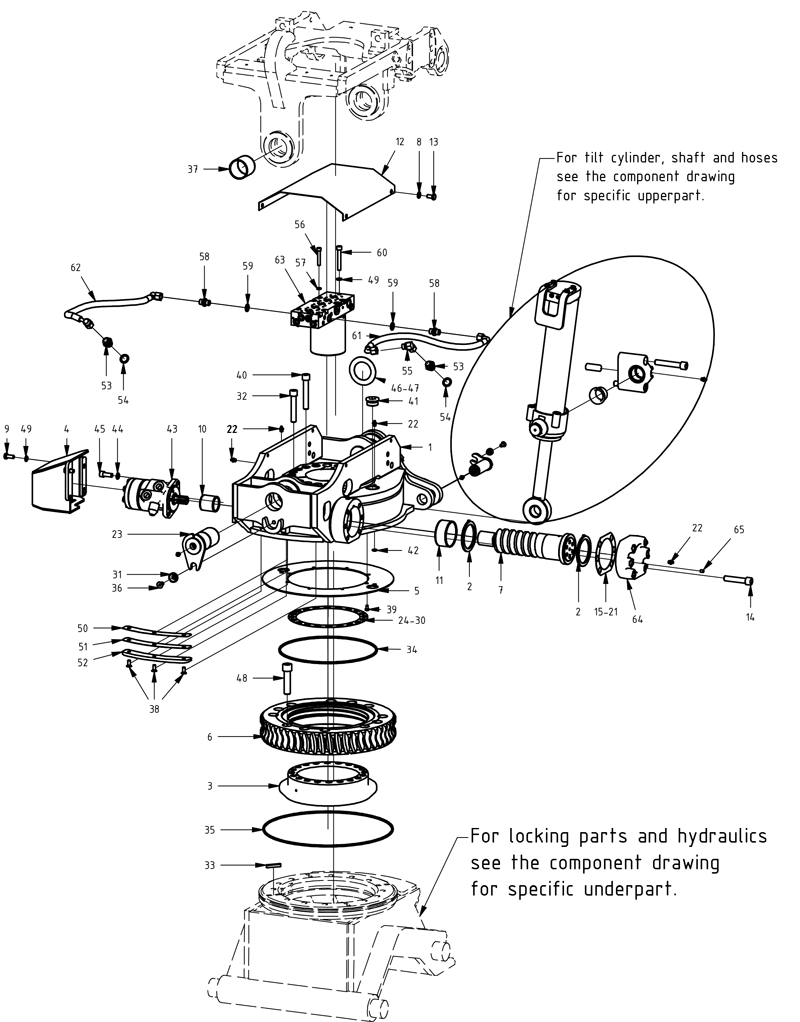

Start > engcon för grävmaskiner > Tiltrotators > EC20 > B-series > Rotator frame > Main components 'Reversed'
