Number of hits 76

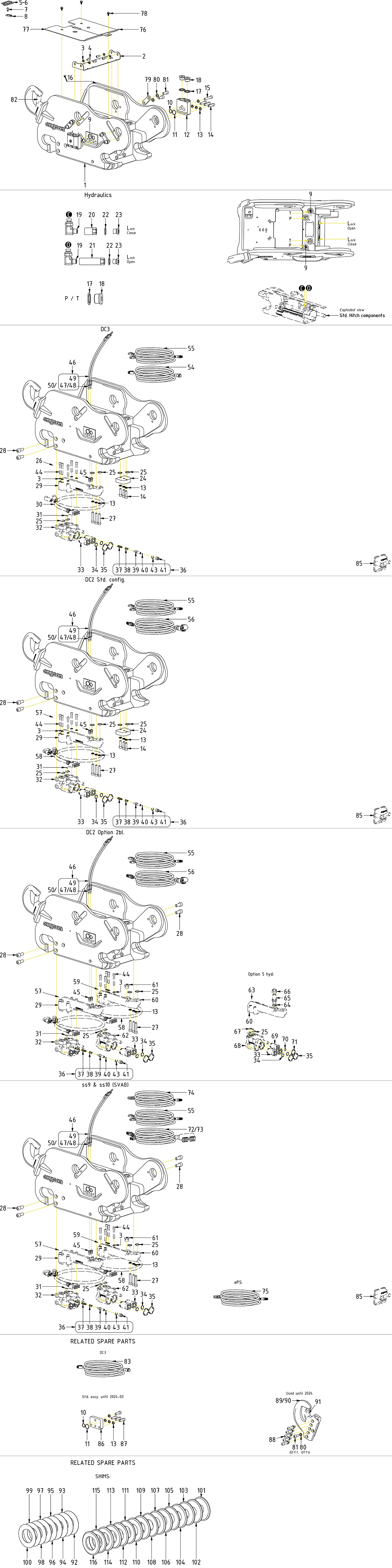

Pos
Item no.
Description
Extra info
Qty.
2
1071434
Connection plate S60 bolted
1
Choose
3
611040
washer NL 8mm 153104
QTY depends on config.
9
Choose
4
610432
screw MC6S 8x16H 12.9 ZFSHL ISO4762
4
Choose
5
8000703
Strain relief plate ZL60 4x
1
Choose
6
8000704
Strain relief plate ZL87 6x
1
Choose
7
6000294
Blindnit 4,0x12,3 DIN7337 alu/stål
10
Choose
8
810662
holder-Deutsch DT/DTM contact
6
Choose
9
711524
pipeplug DIN 906 1/2" 180156
For EC-Oil 2bl. See position on p.3
2
Choose
10
710981
O-ring 18,77x1,78 NBR 90 shore
2
Choose
11
710984
O-ring 25,12x1,78 NBR 90 shore
2
Choose
13
611041
washer NL 10mm 153105
14
Choose
14
612019
screw MC6S 10x35 12.9 Geomet ISO4762
Torque: 79Nm
9
Choose
15
611515
screw MC6S 10x50 12.9 Geomet ISO4762
2
Choose
17
710706
Seal washer GBR12 3/4"
4
Choose
18
7000799
Plug Din 908 3/4"
4
Choose
19
7000247
adapter ORFS 067005-04-04
2
Choose
20
1071217
Adapter tube-lock short S60
Loxeal 83-52
1
Choose
21
1071216
Adapter tube-lock long S60
Loxeal 83-52
1
Choose
22
710702
Seal washer GBR04 1/4"
2
Choose
23
711505
Plug Din 908 1/4"
2
Choose
24
1071029
Cover plate S60 - without ECO-block
1
Choose
25
7001829
O-ring 21,95x1,78 NBR 90 shore
6
Choose
26
1073836
Block ECO60 W-S60-QH-2hy 1cl 1el left (assembly/DC3)
(POS.3, 25, 29-33,35-36,44-45 incl.)
1
Choose
27
612022
screw MC6S 10x55 12.9 Geomet ISO4762
3
Choose
28
6000197
screw MC6S 14x30 12.9 ZFSHL ISO4762
Loxeal 83-52
2
Choose
29
1069516
Connection block ECO60 W-S60-quick hitch -left
2
Choose
30
8002155
Power plug 12P ECO60 W S-QH - DC3
1
Choose
31
7001849
O-ring 4,48x1,78 NBR 90 shore
4
Choose
32
1070300
Block ECO60 W-S60-Quick hitch with dowelpin -for 2hy left
2
Choose
33
1054580
Coupling ECO 1/2" female V3
Torque: 60Nm. (POS.34 incl.)
2
Choose
34
1050018
flat seal for ECO 1/2" V3
2
Choose
35
1028229
dirt protection block ECO 1/2"
2
Choose
36
1050794
Central lubrication kit ECO W V2
(POS.37-43 incl.)
1
Choose
37
1024113
spring 6058
1
Choose
38
1024112
piston sealing KPOR130 12x7,1x2,2
(O-ring incl. with seal ring)
2
Choose
39
1024111
fat piston for ECO block
1
40
1024115
O-ring 3,69x1,78 NBR 90 shore
1
Choose
41
1047688
Nut greasepiston V2
Wrap with thread sealing tape
1
Choose
42
712429
O-ring 9,25 x 1,78 NBR70
Located inside nut
1
Choose
43
7000767
O-ring 14x2 70 shore
1
Choose
44
610441
screw MC6S 8x60 12.9 untreated ISO4762
5
Choose
45
790172
Push-in Coupling R1/8" PGE06KR lube kit
4
Choose
46
790175
Rörstuds straight Push-In - 30mm
2
Choose
47
790176
hose 3m - hose kit - lubricant ECO
2
Choose
48
8000620
Protection Plug DTM06-6S
QTY depends on config.
1
Choose
49
8002058
Protection Plug DTM06-12SA
1
Choose
50
8002297
Cable DT-4P -> DT-4S 3m-DC3
Attach to 4P
1
Choose
51
842149
cable QS - QLM - Quick Hitch DTM-4,5m
Attach to QS sensors
1
Choose
52
1048528
cable ECO W-machine-DC2-DTM-QS/QSC-3,5m
Attach to Left 12P
1
Choose
53
1071930
Block ECO60 W-S60-quick hitch -2hy 1cl 1el left (assembly)
(POS.3,25,29,31-33,35-36,44-45,54)
1
Choose
54
8002050
Power plug ECO60 W S-quick hitch -DTM
Cable gland torque: 6Nm
1
Choose
55
1071932
Block ECO60 W-S60-quick hitch -2hy 1el right (assembly)
(POS.3, 25, 30, 33, 35, 44, 49-51)
1
Choose
56
1069728
Connection block ECO60 W-S60-quick hitch -right
1
Choose
57
711500
Plug VSTIR12ED
1
Choose
58
1071805
Block ECO60 W-S60-Quick hitch with dowelpin -for 2hy right
1
Choose
59
1071931
Block ECO60 W-S60-quick hitch -3hy right (assembly)
(POS.3, 25, 33, 35, 44, 56, 60-67)
1
Choose
60
710704
Seal washer GBR08 1/2"
1
Choose
61
710244
Bulkhead adapter 1260-08-08
1
Choose
62
711627
protective cover 0301550800
1
Choose
63
7001842
O-ring 12,42x1,78 NBR 90 shore
2
Choose
64
1070496
Block ECO60 W-S60-Quick hitch with dowelpin -for 3hy right
1
Choose
65
1053029
Coupling ECO 3/8" female V3
(POS.66 incl.)
1
Choose
66
1052976
flat seal for ECO 3/8" V3
1
Choose
67
1028274
dirt protection block ECO 3/8"
1
Choose
70
6000120
screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Räfflad
3
Choose
71
1067225
Lock plate-UNI axle-S60/S70
Assemble with slight play
4
Choose
72
611042
washer NL 12mm
8
Choose
73
6000164
screw MC6S 12x25H 12.9 ZFSHL ISO4762
8
Choose
74
404251
locktab Pejo 204-5-6
Lifting hook spare part
1
Choose
75
8001887
Cable DT-4P -> DT-4S 2m-DC3
Replaced by POS.50 from 2024-04
1
Choose
77
1070776
Cover plate S60 - without side-block
Replaced by POS.12 from 2024-02
2
Choose
78
612018
screw MC6S 10x30 12.9 Geomet ISO4762
Torque: 79Nm
8
Choose
79
6000391
Screw-Shoulder screw Ø12x40/M10 12.9 ISO7379
Torque: 57Nm
5
Choose
80
1072513
S60-upgrade kit-Lifting hook bolted 5T
(POS.72-73, 79, 82 incl.)
1
Choose
81
1074575
S60-upgrade kit-Lifting ear bolted 5T
(POS.72-73, 79 incl.)
1
Choose
82
1075454
Locktab engcon hook 5T
1
Choose
