Number of hits 33

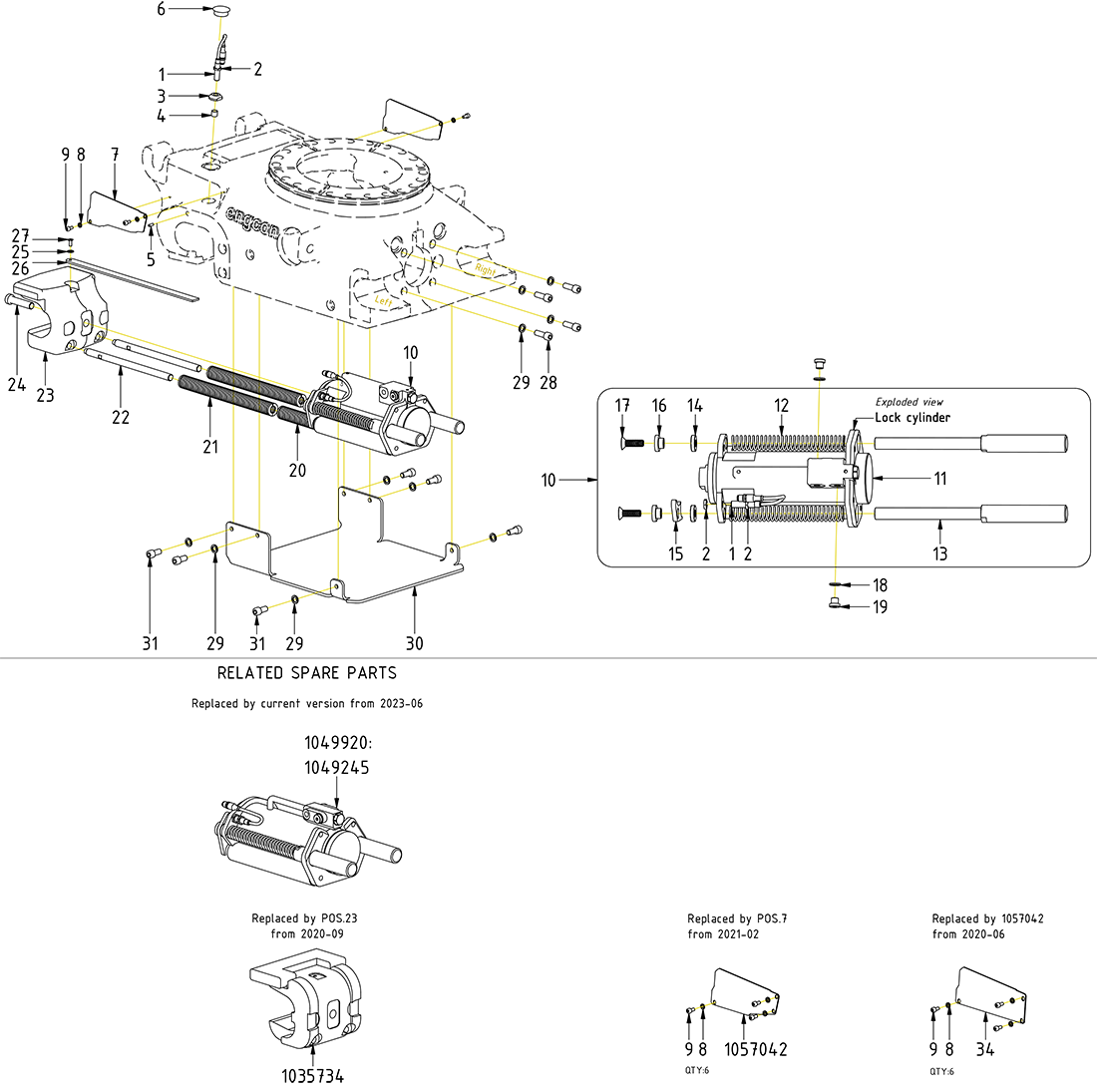

Pos
Item no.
Description
Extra info
Qty.
1
1048262
Inductive sensor M12-hook quick hitch + locking cylinder QSM
Connect to slip ring QSM
2
Choose
3
1029432
positioning nut-Inductive sensor QS
1
Choose
4
8000056
Skyddshylsa Inductive sensor M12
1
Choose
5
610808
screw MS6SS M8x16
1
Choose
6
8000068
Protection Plug ECO power plug samt QS sensor
1
Choose
7
1061519
Cover plate Side QSM70 V3 - sensor
2
Choose
8
611039
washer NL 6mm
4
Choose
9
6000352
Screw MC6S 6x12H 12.9 ZFSHL ISO4762
4
Choose
10
1058124
Locking cylinder QSM70/S70 V4 Forged QSC pre-assembled
(POS.1, 11-17 incl.)
1
Choose
11
1058122
Locking cylinder QS70 V4 Forged
1
Choose
12
1049974
spring QS70/80 Ejectors - 21,8x210
2
Choose
13
1034935
Ejectors QS70-QS80
2
Choose
14
1035752
spacer QS70
2
Choose
15
1035751
Sensor plate QS70
Assemble with sligth play
1
Choose
16
1008243
spacer M12 L15 countersunk
2
Choose
17
610670
Screw MF6S 12x40 10.9 FZB ISO10642
Loxeal 83-52
2
Choose
18
710702
Seal washer GBR04 1/4"
2
Choose
19
711505
Plug Din 908 1/4"
2
Choose
20
1025178
spring QS70 locking hook - short (32x152)
2
Choose
21
1025179
spring QS70 locking hook - long (32x305)
2
Choose
22
1024695
Steering QS70-80
Loxeal 83-52
2
Choose
23
1037431
locking hook V2 QS70 cast
1
Choose
24
610720
screw MLC6S 16x70 10.9 DIN7984 untreated
Loxeal 83-52. Torque 136Nm
1
Choose
25
6000415
Washer Starlock 6mm
1
Choose
26
1036201
Indicator pin QS 610mm
Cut to fit
1
Choose
27
610604
screw MF6S 6x16 10.9 untreated
Loxeal 83-52
1
Choose
28
6000150
screw MC6S 12x35 12.9 ZFSHL ISO4762
4
Choose
29
611042
washer NL 12mm
QTY: 4 for EC-Oil
10
Choose
30
1034902
cover plate QS70 V2/QSM70-without ECO-block
No cover plate for EC-Oil
1
Choose
31
6000164
screw MC6S 12x25H 12.9 ZFSHL ISO4762
6
Choose
32
790155
Rubber Steel Clamp ø12
1
Choose
33
610401
screw MC6S 5x16 12.9 untreated ISO4762
Loxeal 55-02
1
Choose
34
1048078
coverplate side QSM70 - sensor
1
Choose
