Number of hits 46

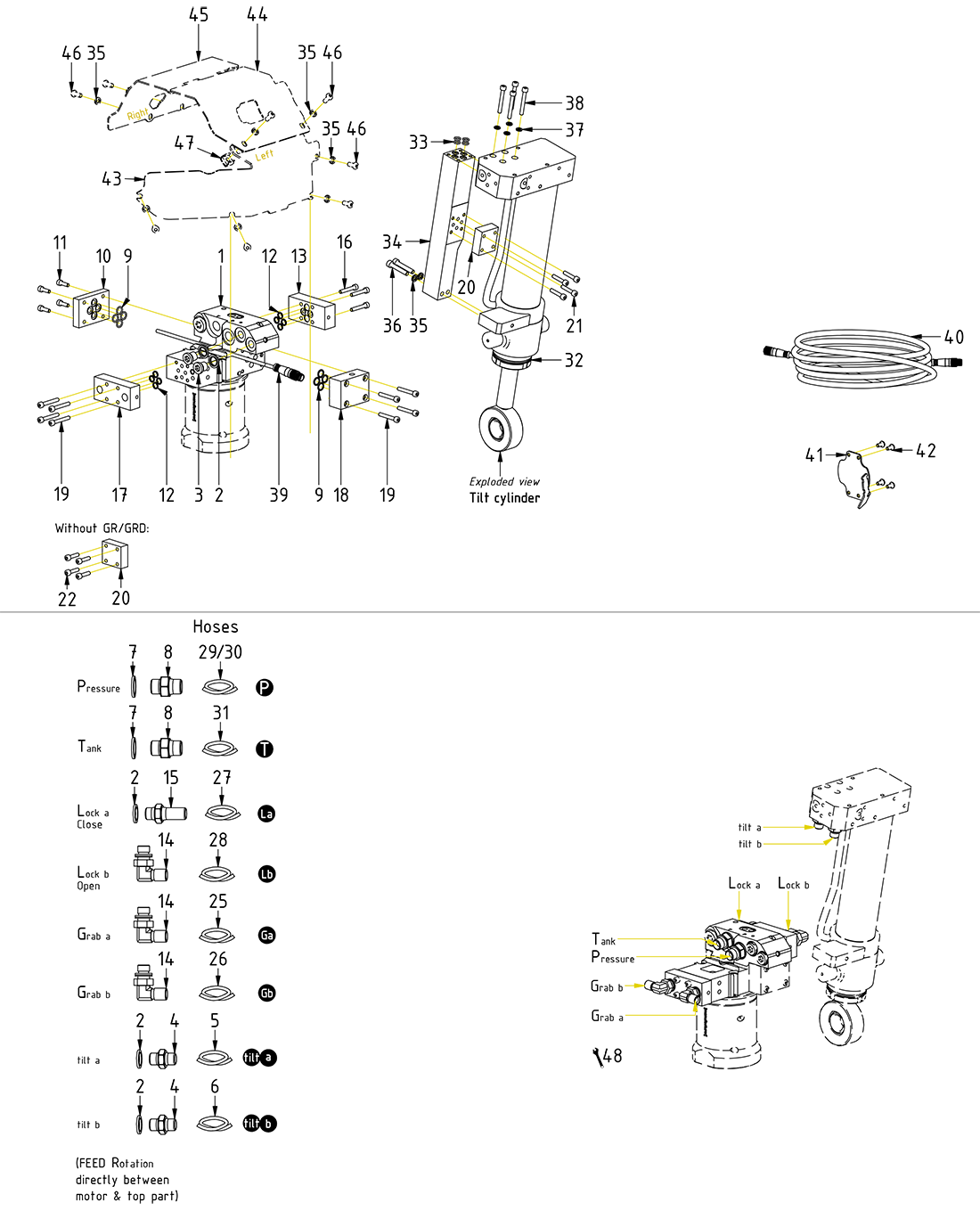

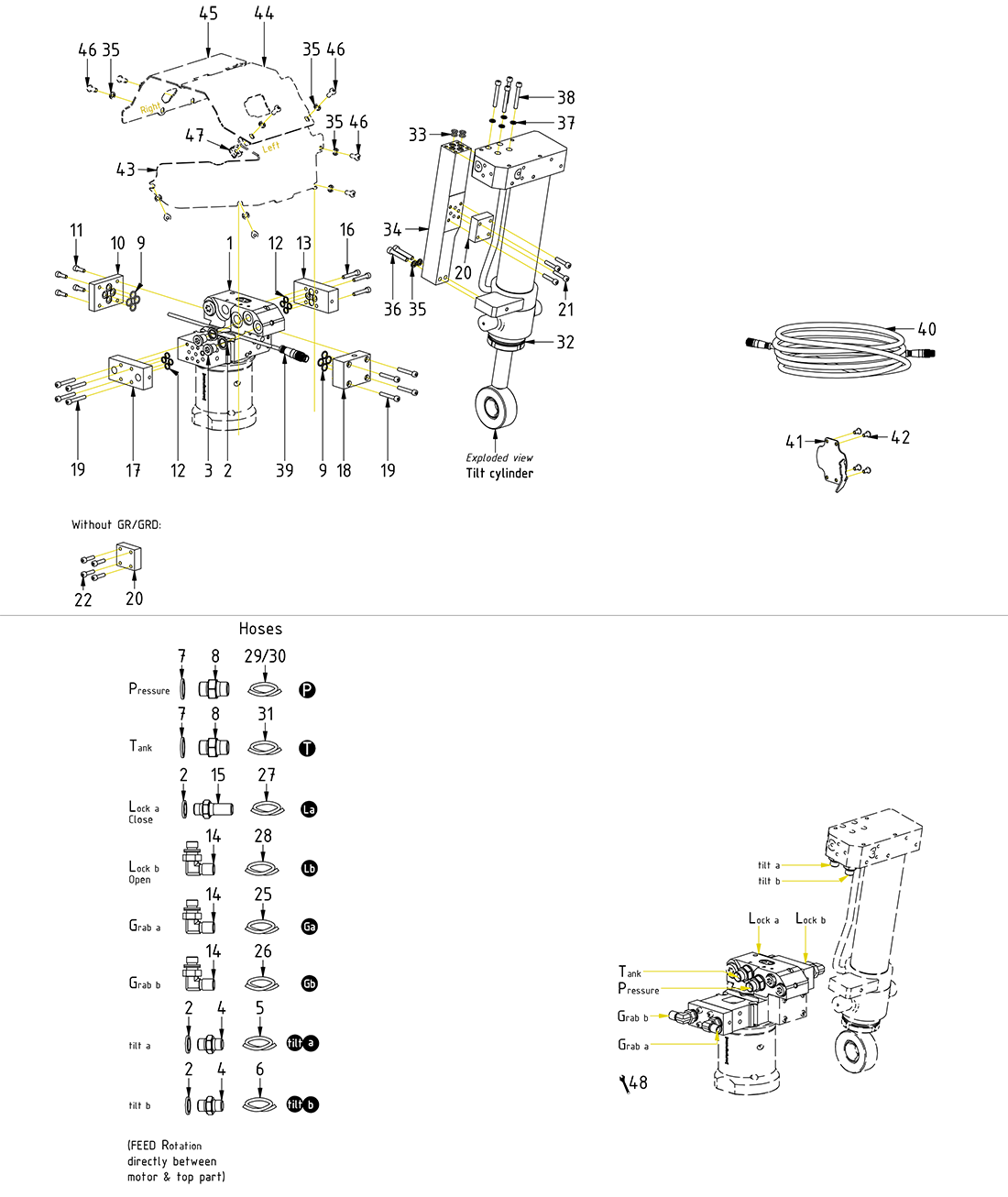

Pos
Item no.
Description
Extra info
Qty.
1
1078622
Valve block EC204B
Part of quick hitch
1
Choose
2
710702
Seal washer GBR04 1/4"
5
Choose
3
711505
Plug Din 908 1/4"
2
Choose
4
710135
adapter 138-04-29 ( compact 136-04-04 )
2
Choose
5
7002031
Hose
1
Choose
6
7002032
Hose
1
Choose
7
710703
Seal washer GBR06 3/8"
2
Choose
8
710106
adapter 136-06-06
2
Choose
9
710901
O-ring 9,25x1,78 GREEN Viton 90 shore NG6
8
Choose
10
730320
cover plate NG6
1
Choose
11
610401
screw MC6S 5x16 12.9 untreated ISO4762
4
Choose
12
710960
O-ring 7,65x1,78 GREEN Viton 90 shore NG4
QTY: 4 without GR/GRD
8
Choose
13
1036082
connection block EC204 ss0
1
Choose
14
710151
adapter 401-04-04 90°
QTY: 1 without GR/GRD
3
Choose
15
710240
Bulkhead adapter 1260-04-04
1
Choose
16
610403
screw MC6S 5x30 12.9 untreated ISO4762
Torque: 9,7Nm
3
Choose
17
1009586
connection block NG4
1
Choose
18
1005844
Överflödningsblock NG6
1
Choose
19
610404
screw MC6S 5x35 12.9 untreated ISO4762
Torque: 9,7Nm QTY: 4 without GR/GRD
8
Choose
20
730151
Overflow Block NG4
QTY: 2 without GR/GRD
1
Choose
21
610402
screw MC6S 5x25 12.9 untreated ISO4762
4
Choose
22
610400
screw MC6S 5x20 12.9 untreated ISO4762
4
Choose
23
7002025
Hose
Part of quick hitch assy.
1
Choose
24
7002026
Hose
Part of quick hitch assy.
1
Choose
25
7002029
Hose
1
Choose
26
7002030
Hose
1
Choose
27
7002027
Hose
1
Choose
28
7002028
Hose
1
Choose
29
7001991
Hose
1
Choose
30
7002065
Hose
1
Choose
31
7001992
Hose
1
Choose
32
1077744
Tilt cylinder EC204B
Part of top part
1
Choose
33
7001940
O-ring 6,75x1,78 NBR 70 shore
4
Choose
34
1075504
Valve block EC204B tilt cylinder
1
Choose
35
611039
washer NL 6mm
QTY: 8 part of make up
10
Choose
36
610591
screw MC6S 6x35 12.9 untreated ISO4762
2
Choose
37
611038
washer NL 5mm
4
Choose
38
610405
screw MC6S 5x40 12.9 untreated ISO4762
Torque: 9,7Nm
4
Choose
40
8002249
Cable QS - QLM - Quick Hitch M12-4,35m
1
Choose
41
1076341
End lock protection plate EC204BS
1
Choose
42
6000408
Screw K6S 5x10 10.9 FZB ISO7380
4
Choose
43
1076425
Cover plate EC204B TM-module
Part of make up
1
Choose
44
1076007
Protective cover valve block EC204B left
Part of make up
1
Choose
45
1076360
Protective cover valve block EC204B right
Part of make up
1
Choose
46
6000242
screw K6S 6x14 10.9 FZB
Part of make up
8
Choose
47
6000411
Cage nut M6
Part of make up
2
Choose
