Sort
Pos
Item no.
Description
Search in results
Number of hits 36

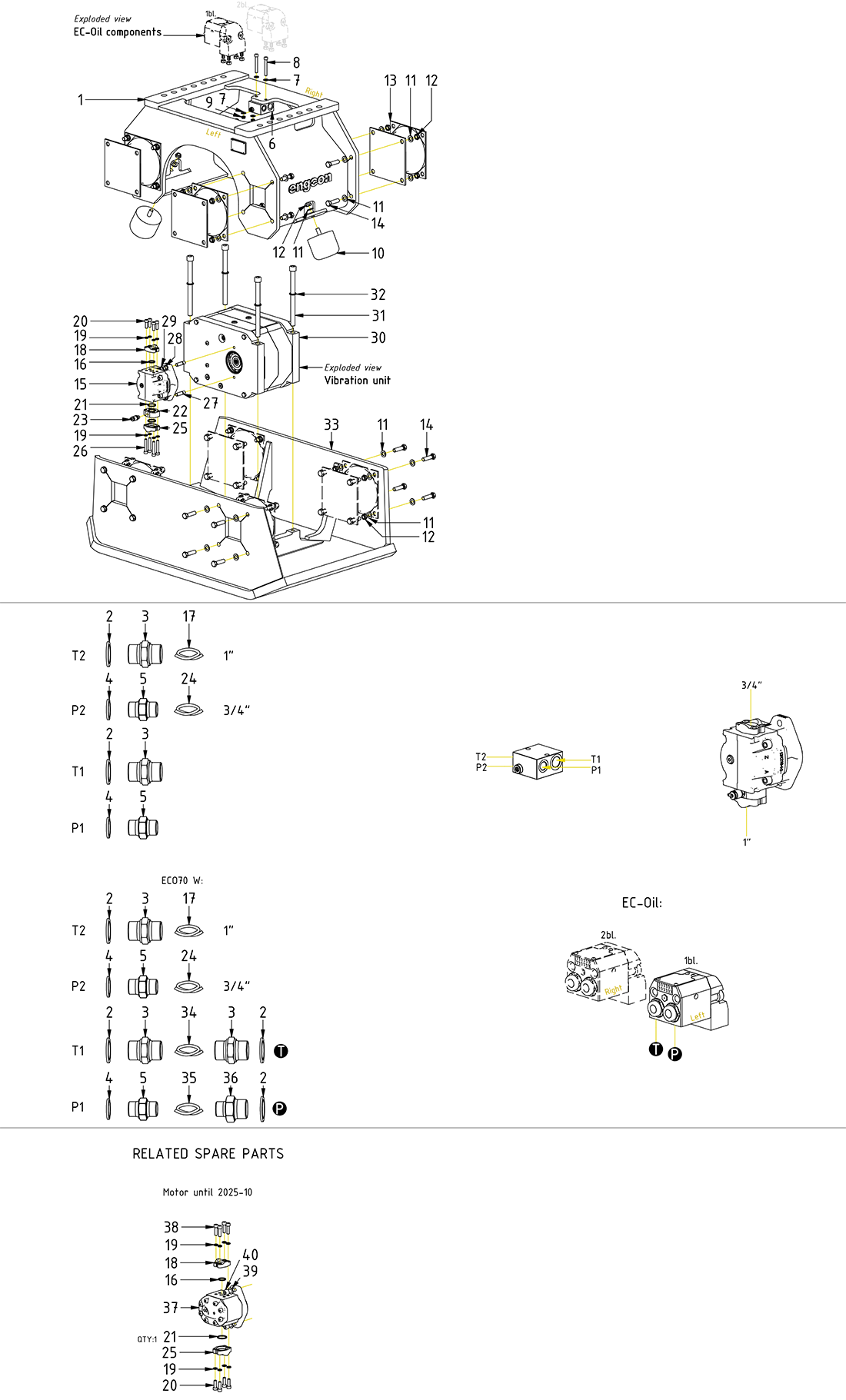

Pos
Item no.
Description
Extra info
Qty.
1
1062234
Upper part PC9500
1
Choose
2
710706
Seal washer GBR12 3/4"
QTY: 4 for EC-Oil
2
Choose
3
710126
adapter 136-12-12
QTY: 3 for EC-Oil
2
Choose
4
710704
Seal washer GBR08 1/2"
2
Choose
5
710108
adapter 136-08-08
2
Choose
6
7001503
Block-Flow block PC9500 65l/min
1
Choose
7
611006
washer BRB FZB 10,5x22x2
4
Choose
8
610463
screw MC6S 10x80 12.9 untreated ISO4762
2
Choose
9
610923
nut M6M M10 lock
2
Choose
10
6000239
DAMPER 77-GP-1G-125100 M16X36
2
Choose
11
611009
washer BRB FZB 17x30x3
66
Choose
12
610926
nut M6M M16 lock
34
Choose
13
640302
rubber damper PP950
4
Choose
14
610214
screw M6S 16x60 8.8 FZB
32
Choose
17
7001833
Hose T- PC9500
1
Choose
18
711085
flange half 3/4" 3000PSI
2
Choose
19
611041
washer NL 10mm 153105
8
Choose
20
612018
screw MC6S 10x30 12.9 Geomet ISO4762
4
Choose
21
710936
O-ring 32,93x3,53 nitrile P90 shore 1"
2
Choose
24
7001832
Hose P- PC9500
1
Choose
25
7001080
flange half 1" 3000PSI
2
Choose
26
611503
screw MC6S 10x60 12.9 Geomet ISO4762
4
Choose
27
6000440
Stud bolt M14x35 10.9 DIN939 ZPL
Loxeal
2
Choose
28
611043
washer NL 14mm 153107
2
Choose
29
611101
nut steel M14 148303
2
Choose
30
1059989
Generator PC9500 (with hydraulmotor)
1
Choose
31
6000332
Screw MC6S 20x270 12.9 ZFSHL ISO4762
4
Choose
32
611098
washer NL 20mm
4
Choose
33
1060001
Lower part PC9500
1
Choose
34
7001835
Hose T- PC9500 ECO70
1
Choose
35
7001834
Hose P- PC9500 ECO70
1
Choose
36
710109
adapter 135-08-12
1
Choose
37
7001805
Hydraulic motor PC9500 Tyrolla
1
Choose
38
612019
screw MC6S 10x35 12.9 Geomet ISO4762
4
Choose
39
611008
washer BRB FZB 15x26x2
2
Choose
40
610502
screw MC6S 14x35 12.9 untreated ISO4762
2
Choose
