Sort
Pos.
Item no.
Description
Search in results
Number of hits 55
Pos.
Item no.
Description
Extra info
Qty.

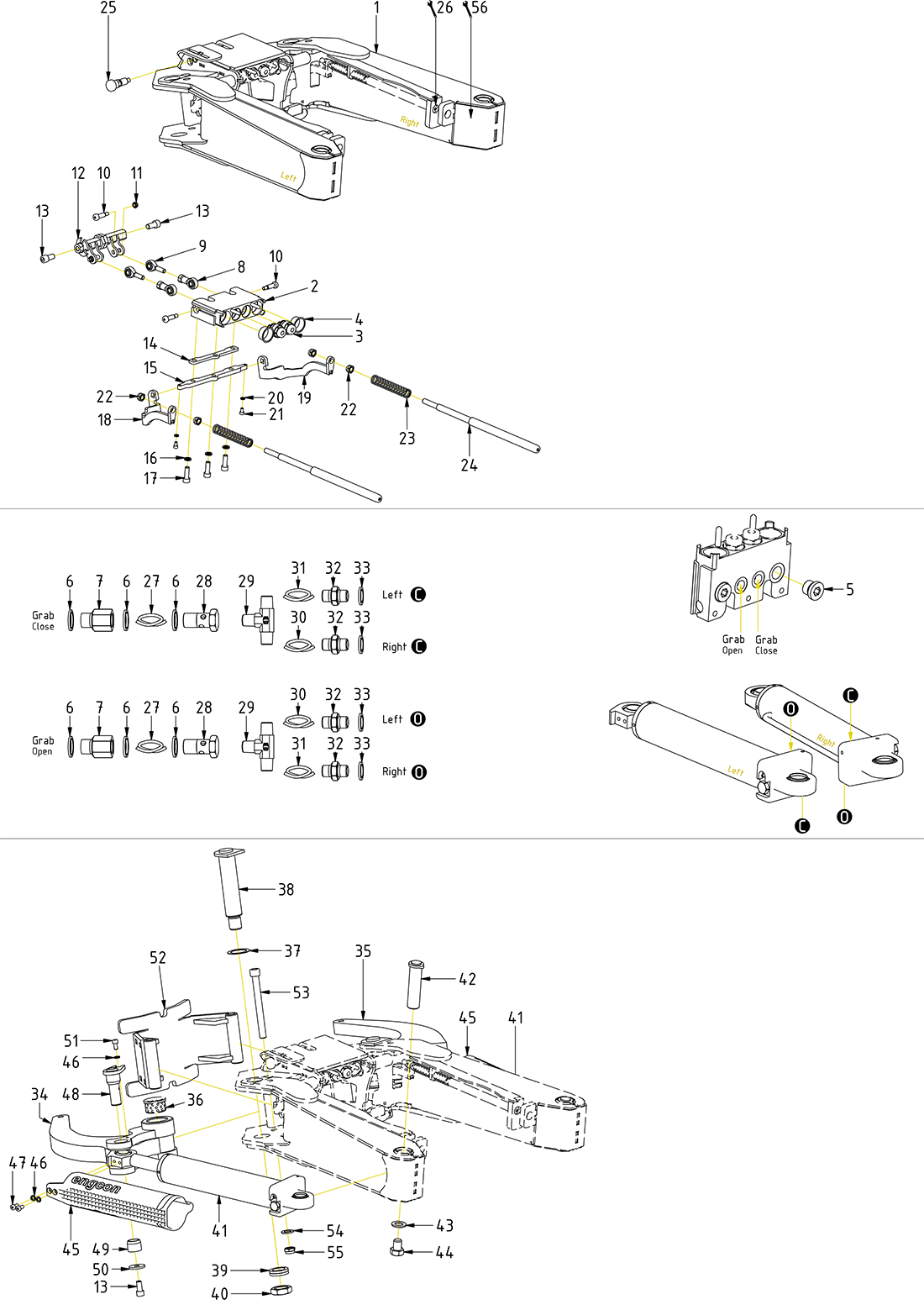

1
1068911
Frame GRD60B
1
Choose
2
1055206
hydraulic block ECO GRD20 V2
1
Choose
3
1028873
Coupling ECO45/50 3/8" male - top bracket V2
Torque: 60Nm
2
Choose
4
7000154
Protection Plug TECO60 hydraulic
2
Choose
5
711500
Plug VSTIR12ED
2
Choose
6
710703
Seal washer GBR06 3/8"
6
Choose
7
710131
adapter 236-06-06
2
Choose
8
1033284
Heim joint M10/Ø10 female
2
Choose
9
1033283
Heim joint M10/Ø10 Male, 42mm
Unscrew 4,5 turns from bottomed
2
Choose
10
611703
reamed bolt ø10x25/M8 136509
Loxeal 83-52 against POS.2
4
Choose
11
610922
nut M6M M8 lock
2
Choose
12
1037048
Eccenter GRD20,SWD60 ECO
1
Choose
13
6000164
screw MC6S 12x25H 12.9 ZFSHL ISO4762
Loxeal 83-52
4
Choose
14
1034333
shims carrier GRD20
1
Choose
15
1034084
carrier GRD20
1
Choose
16
611041
washer NL 10mm 153105
3
Choose
17
612018
screw MC6S 10x30 12.9 Geomet ISO4762
3
Choose
18
1055560
carrier V3 left GRD20
1
Choose
19
1055562
carrier V3 right GRD20
1
Choose
20
611039
washer NL 6mm
2
Choose
21
611512
screw MC6S 6x10 12.9 ZFSHL ISO4762
2
Choose
22
610924
nut M6M M12 lock
4
Choose
23
1038209
spring lock arm GRD20/SWD60
2
Choose
24
1034056
lock arm GRD20
2
Choose
25
6000061
Adjustment screw M16 x 1,5
1
Choose
27
7000890
Hose kit - GRD60 - Grab hoses
(POS.28, 31, 32 incl.)
1
Choose
28
7001059
Hose
1
Choose
29
710272
banjo bolt 4451-06
2
Choose
30
7000883
Adapter 851-04-04
2
Choose
31
7000889
Hose
1
Choose
32
7000888
Hose
1
Choose
33
710135
adapter 138-04-29 ( compact 136-04-04 )
4
Choose
34
710702
Seal washer GBR04 1/4"
4
Choose
35
1031144
Grab arm GRD20 left
(POS.37 incl.)
1
Choose
36
1031147
Grab arm GRD20 right
(POS.37 incl.)
1
Choose
37
631001
bushing BWG-F 40/50/55/5x30
4
Choose
38
1042067
shims GRD20 56x40,5x1
Also used between grab arm and grab frame if required
4
Choose
39
1044793
axle Grab arm GRD70
Torque: 649Nm
2
Choose
40
6000122
washer NL 30mm
2
Choose
41
6000059
nut M30x2 low A2 DIN 439
Torque: 649Nm
2
Choose
42
1048549
grab cylinder-GRD20/GRD70-right/left
2
Choose
43
1068863
Axle grab cylinder against frame GRD60B/70B
2
Choose
44
611010
washer BRB FZB 21x36x3
2
Choose
45
6000054
screw M6S 20x25 FZB 8.8
Loxeal 83-52
2
Choose
46
1051368
grab guard-GRD20/GRD70-right/left-plastic
2
Choose
47
611040
washer NL 8mm 153104
6
Choose
48
6000220
screw MLC6S 8x16 10.9 FZB DIN7984
4
Choose
49
1034640
axle grab cylinder against Grab arm GRD10/20
2
Choose
50
1034641
sleeve axle grab cylinder against Grab arm GRD10/20
2
Choose
51
6000056
washer BRB FZB 13x40x4
2
Choose
52
610432
screw MC6S 8x16H 12.9 ZFSHL ISO4762
2
Choose
53
1034063
stop GRD20 standard
1
Choose
54
6000166
screw MC6S 16x160 12.9 ZFSHL ISO4762
2
Choose
55
611009
washer BRB FZB 17x30x3
2
Choose
56
610926
nut M6M M16 lock
2
Choose
