Number of hits 64

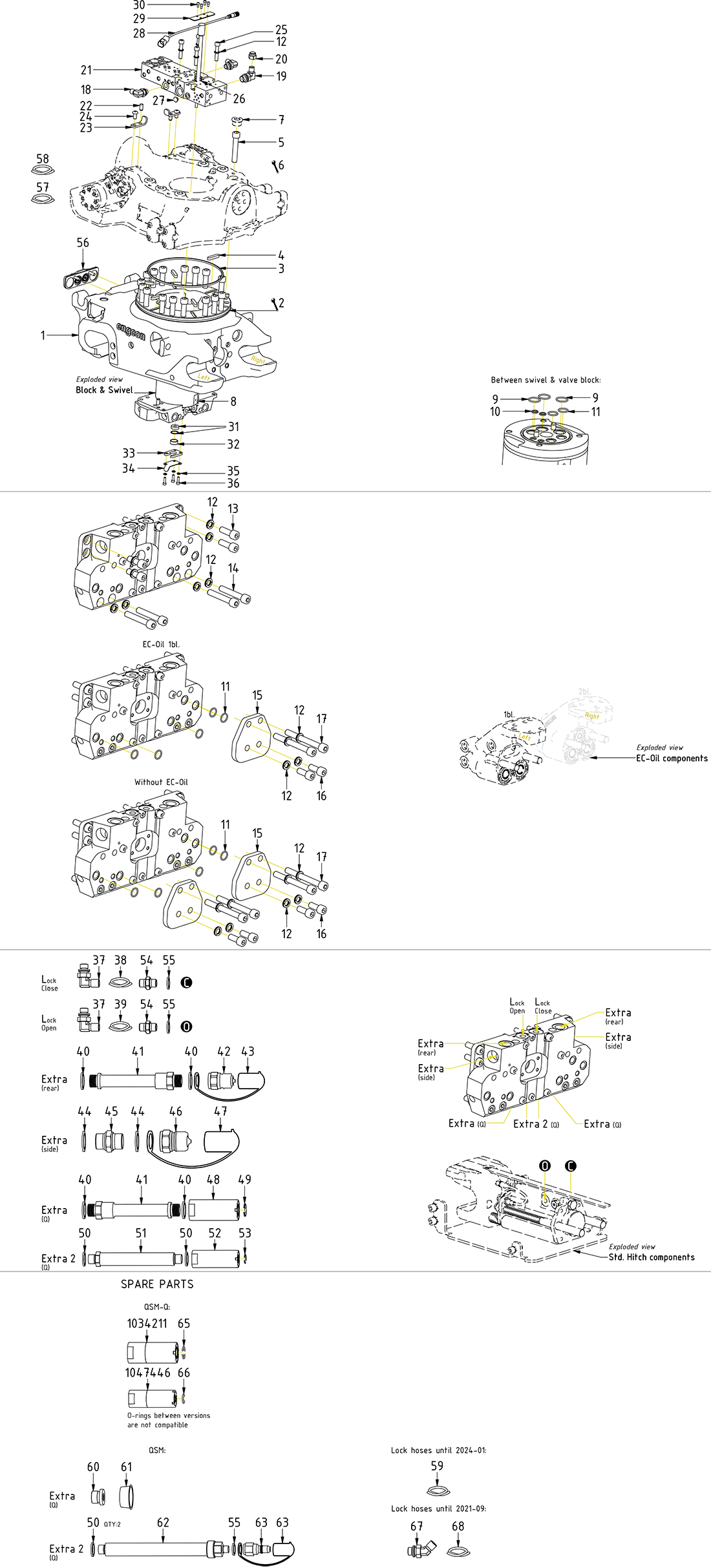

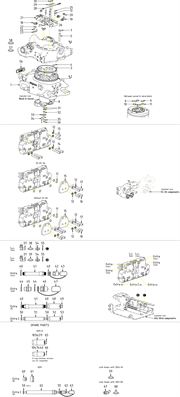

PosItem no.DescriptionExtra infoQty.
washer NL 10mm 15310512611041washer NL 10mm 153105QTY: 8 without EC-Oil20
18710152adapter 401-06-06 90°Assemble before valve block2
19710157adapter 401-06-08 90°Assemble before valve block1
26612022screw MC6S 10x55 12.9 Geomet ISO4762Torque: 79Nm Tighten in cross pattern4
271046763Slip ring-QSM60 M12Mount with marine silicone1
301046691rubber buffer Ø25,5/10 L7,5 Slip ring QSMUse the outer ring. Washer down1
471055420Coupling ECO QSD/QSM 1/2" female V3Loxeal 83-52. (POS.48 included)2
511055682Coupling ECO QSM 3/8" female V3Loxeal 83-52. (POS.52 included)2
64710913O-ring 17,17x1,78 PU/90 - ECO60 1/2"Used until 2020-01 Separate seal kit: 70000462
65712417O-ring 12,42x1,78 PU - ECO45 3/8"Used until 2020-01 Seperate seal kit: 70000452
677000743hoseReplaced by POS.58 from 2021-092
