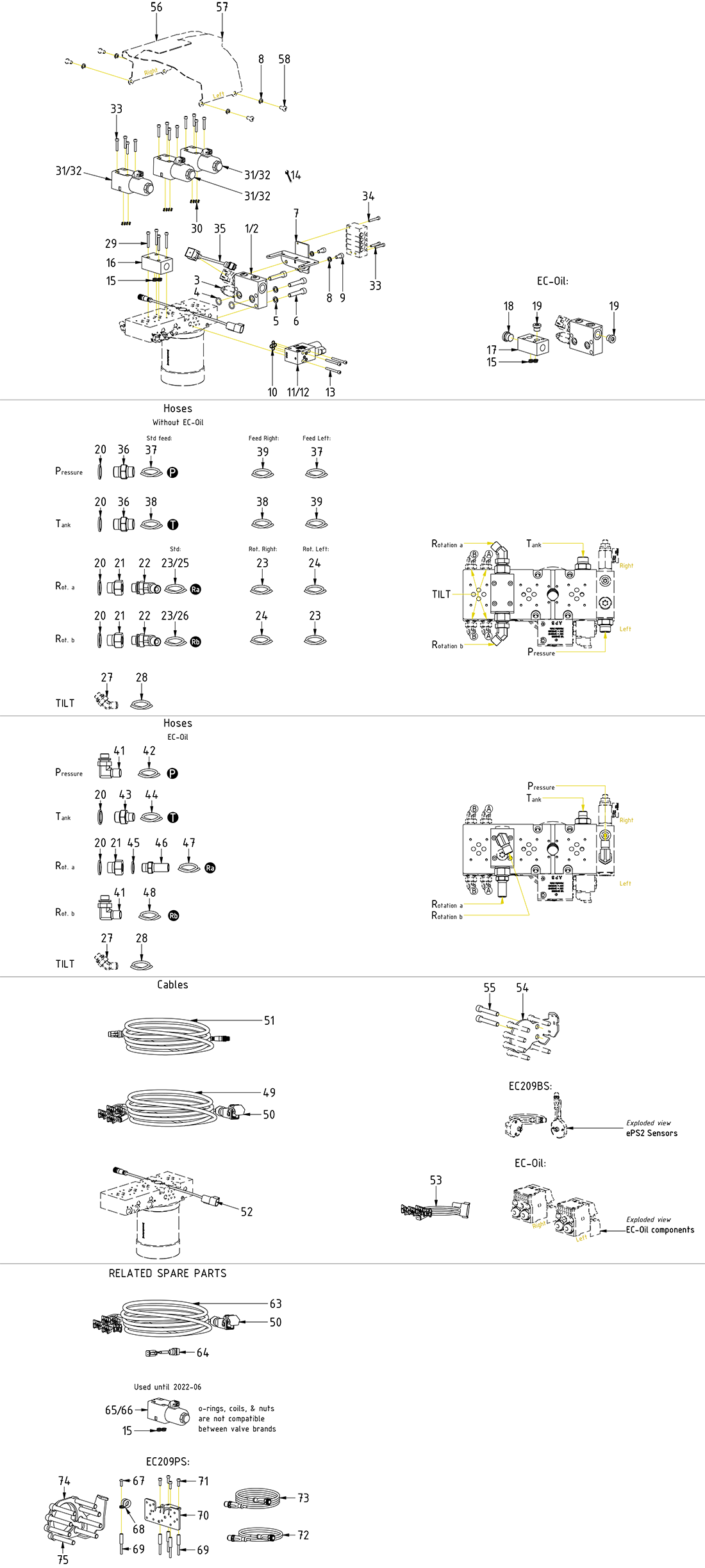

ss9IQ

Pos Item no.DescriptionExtra infoQty.

11056908 Connection block P ss9 QSM45 12V(POS.3 incl.)1

Choose

21058798 connection block P with pressure limiter + dump ss9 24V QSM45(POS.3 incl.)1

Choose

3730287 Dubbeltryckbegränsningsventil EC206,209 + ECHF1

Choose

4712423 O-ring 15,54 x 2,62 NBR702

Choose

5611041 washer NL 10mm 1531053

Choose

6611515 screw MC6S 10x50 12.9 Geomet ISO4762Torque: 79Nm3

Choose

71055574 Attachment central lubrication & DC2-QSM45/501

Choose

8611040 washer NL 8mm 153104QTY: 4 part of make up6

Choose

9610431screw MC6S 8x16 12.9 untreated ISO47622

10710960 O-ring 7,65x1,78 GREEN Viton 90 shore NG44

Choose

111042045 directional valve NG4 IQS lock 12V DT ss9 Coil A(POS.10 incl.)1

Choose

121042188 directional valve NG4 IQS lock 24V DT ss9 Coil A(POS.10 incl.)1

Choose

13610407 screw MC6S 5x50 12.9 untreated ISO4762Torque: 9,7Nm3

Choose

15710901 O-ring 9,25x1,78 GREEN Viton 90 shore NG64

Choose

161050000 Connection block 2x 1/2" NG6 crossed channels1

Choose

17405670 connection block 2x 1/2" NG6For EC-Oil1

Choose

18711500 Plug VSTIR12ED1

Choose

19711504 Plug VSTIR38ED2

Choose

20710704 Seal washer GBR08 1/2"QTY: 2 for EC-Oil4

Choose

21710233 adapter 234-08-06QTY: 1 for EC-Oil2

Choose

227000090 Adapter 402-06-06 45°2

Choose

237001587 HoseQTY: 1 for Rot. Right/Left2

Choose

247001589 HoseRot. Left: Use this for "a" Rot. Right: Use this for "b"1

Choose

257001846 Hose1

Choose

267001847 Hose1

Choose

277000104 adapter 402-04-04 45°Part of quick hitch assy.4

Choose

287001308 hose4

Choose

29610405 screw MC6S 5x40 12.9 untreated ISO47624

Choose

30710959 O-ring 8,75x1,78 NBR 90 shore12

Choose

317001619 Directional valve closed NG6 12V JT ATOS(POS.30 incl.)3

Choose

327001618 Directional valve closed NG6 24V JT ATOS(POS.30 incl.)3

Choose

33610403 screw MC6S 5x30 12.9 untreated ISO4762Torque: 9,7Nm14

Choose

34610404 screw MC6S 5x35 12.9 untreated ISO47621

Choose

35302971 adapter cable Hirschmann - Amp contact1

Choose

36710108 adapter 136-08-082

Choose

377001265 hose1

Choose

387001266 hose1

Choose

397001586 HoseFeed Right: Use this for "P" Feed Left: Use this for "T"1

Choose

41710152 adapter 401-06-06 90°2

Choose

43710122 adapter 135-06-081

Choose

447001268 hose1

Choose

45710703 Seal washer GBR06 3/8"1

Choose

46710242 Bulkhead adapter 1260-06-321

Choose

498001823 Unit cable-ss9-2 dump EC206-EC233 ILME 12P DT1

Choose

50810208 ILME cover 8P/12P contact with jumper(Incl. with agg.cable)1

Choose

51842148 cable QS - QLM - tiltrotator DTM 4,5m1

Choose

531029599 adapter cable-ECO-ss5/ss9/ss10-DTM-->JTFor EC-Oil. Instead of POS.49 & 511

Choose

541063372 End lock protection plate EC209S/EC214S/EC219S1

Choose

55611517 screw MC6S 12x70 12.9 Geomet ISO4762Torque: 136Nm8

Choose

561056633 Protective cover valve block EC209/209B QSM - LipPart of make up1

Choose

571056632 Protective cover valve block EC209/209B QSMPart of make up1

Choose

58611810 screw K6S 8x16H 10.9 FZBPart of make up4

Choose

59710120 adapter 135-04-082

Choose

607001636 Hose - Grab - EC209 QSM452

Choose

61710244 Bulkhead adapter 1260-08-082

Choose

631032909 Aggregate cable ss9-2 dump EC206-EC233 ILME 12PReplaced by POS.49 from 2022-061

Choose

641017478 adapter cable Deutsch - Amp contact (2P)Used until 2022-061

Choose

65730112 directional valve closed NG6 12V JTReplaced by POS.31 (ATOS)1

Choose

66730110 directional valve closed NG6 24V JTReplaced by POS.32 (ATOS)1

Choose

67611818 screw K6S 5x16H 10.9 FZB1

Choose

686000009 Rubber Steel Clamp ø161

Choose

691034402 screw Valve Distance NG6 M5x30,55

Choose

701057538 Mounting plate-ePS-Tilt angle sensor-EC209 QSM451

Choose

71610401 screw MC6S 5x16 12.9 untreated ISO47624

Choose

728000784 connection cable-ePS-rotation sensor-->1

Choose

738000824 Unit cable-ePS1

Choose

741033565 Protection sensor-ePS, SVAB MACS-V2-EC209,EC214,EC2191

Choose

756000148 screw MC6S 12x80 12.9 ZFSHL ISO4762Torque: 136Nm8

Choose
