Number of hits 36

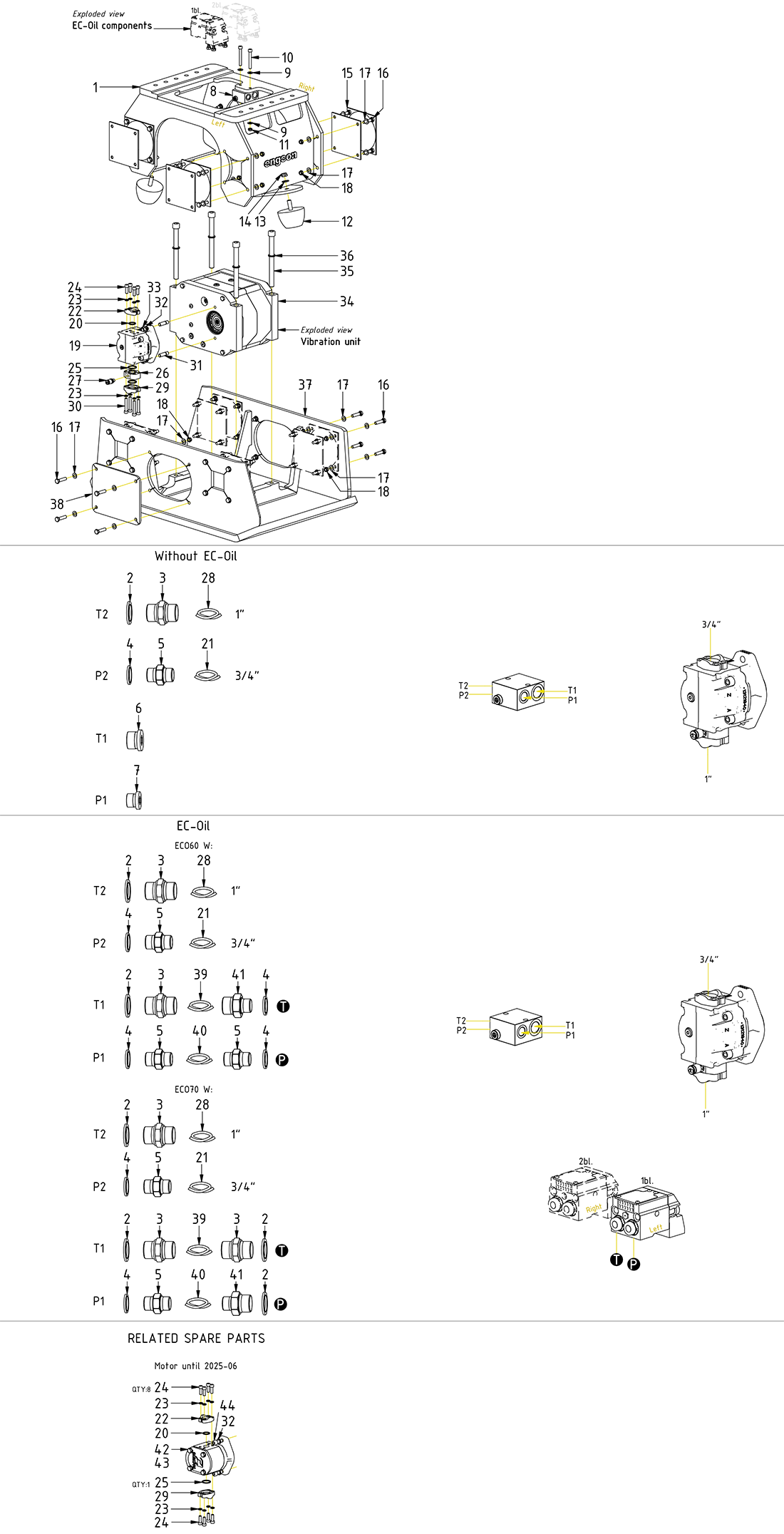

Pos.
Item no.
Description
Extra info
Qty.
1
1059479
Top part PC6000 ver.2
1
Choose
2
710706
Seal washer GBR12 3/4"
QTY: 2 for ECO60, 4 for ECO70
1
Choose
3
710126
adapter 136-12-12
QTY: 2 for ECO70
1
Choose
4
710704
Seal washer GBR08 1/2"
QTY: 4 for ECO60, 2 for ECO70
1
Choose
5
710108
adapter 136-08-08
QTY: 2 for ECO60
1
Choose
6
711532
Plug VSTIR34ED
1
Choose
7
711500
Plug VSTIR12ED
1
Choose
8
7001502
Block-Flow block PC6000 55l/min
1
Choose
9
611006
washer BRB FZB 10,5x22x2
4
Choose
10
610463
screw MC6S 10x80 12.9 untreated ISO4762
2
Choose
11
610923
nut M6M M10 lock
2
Choose
12
640303
DAMPER TP120/75 M16X45 65°
2
Choose
13
611009
washer BRB FZB 17x30x3
2
Choose
14
610926
nut M6M M16 lock
2
Choose
15
640301
rubber damper PP350&600
4
Choose
16
6000265
screw M6S 12x50 8.8 FZB
40
Choose
17
611007
washer BRB FZB 13x24x2,5
80
Choose
18
610924
nut M6M M12 lock
40
Choose
19
7001500
Hydraulic motor PC6000
1
Choose
20
7001673
Seal kit-Casappa PC6000
1
Choose
21
611043
washer NL 14mm 153107
2
Choose
22
610502
screw MC6S 14x35 12.9 untreated ISO4762
4
Choose
24
7001518
Hose
1
Choose
25
711085
flange half 3/4" 3000PSI
2
Choose
26
710936
O-ring 32,93x3,53 nitrile P90 shore 1"
1
Choose
27
7001517
hose
1
Choose
28
7001080
flange half 1" 3000PSI
2
Choose
29
611041
washer NL 10mm 153105
8
Choose
30
612018
screw MC6S 10x30 12.9 Geomet ISO4762
8
Choose
31
1059500
Generator PC6000 V2 (with hydraulmotor)
1
Choose
32
610321
screw MC6S 20x240 12.9 untreated ISO4762
4
Choose
33
611098
washer NL 20mm
4
Choose
34
1059480
bottom part PC6000 ver.2
1
Choose
36
7001519
Hose
1
Choose
37
7001520
Hose
1
Choose
38
710109
adapter 135-08-12
1
Choose
