Number of hits 32

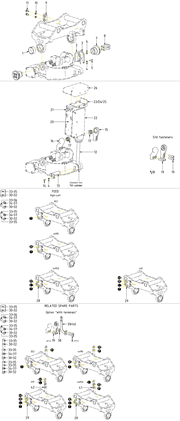

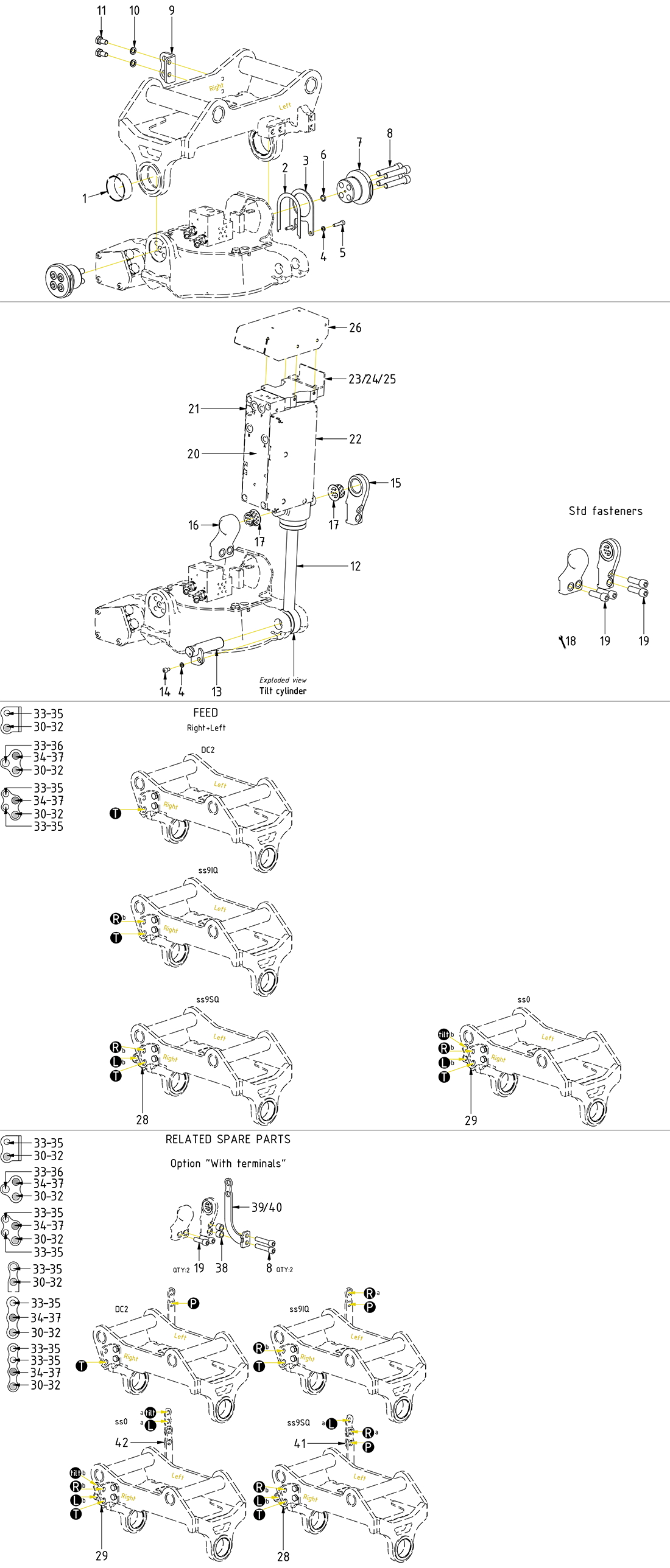

Pos.Item no.DescriptionExtra infoQty.
16000004tilt bushing EC204 55/60x25 WB802(Incl. in Top part)1
Choose
21027820shims tilt axle - EC204 0,5mmUse as required1
Choose
31027785tilt axial washer EC2041
Choose
4611039washer NL 6mm3
Choose
56000083screw MC6S 6x25 12.9 untreated ISO47622
Choose
O-ring 9,92x2,62 NBR70 EC209/EC219/EC226 cylinder axle6710968O-ring 9,92x2,62 NBR70 EC209/EC219/EC226 cylinder axle2
Choose
71016576tilt axle EC2042
Choose
86000140screw MC6S 12x60 12.9 ZFSHL ISO4762Torque: 136Nm QTY: 10 for "With terminals"8
Choose
91045070hose terminal Top part EC204 rightFor Feed Right+Left1
Choose
washer NL 10mm 15310510611041washer NL 10mm 153105For Feed Right+Left4
Choose
11610451screw MC6S 10x20 12.9 untreated ISO4762For Feed Right+Left2
121029849tilt cylinder EC2041
Choose
131016572cylinder axle EC2041
Choose
14611512screw MC6S 6x10 12.9 ZFSHL ISO47621
Choose
151036606yoke bracket EC204 rear cast complete(POS.17 incl.)1
Choose
161029052yoke bracket EC204 forward complete(POS.17 incl.)1
Choose
176000001bushing BWG-F 25/31/38/1,5x202
Choose
19610572screw MC6S 12x40H 12.9 untreated ISO4762Torque: 136Nm QTY depends on config. (2-4)4
201009999spacer 15mm terminal left EC2042
Choose
211053333Hose bracket UNI Top part EC204 leftFor "With terminals"1
Choose
221053732Hose bracket S40- top part EC204/EC204B leftFor "With terminals"1
Choose
237000635valve block EC204 tilt cylinder complete with over centerPart of control system1
Choose
241029781cover plate-tilt cylinder-right-EC204Part of control system1
Choose
251068975Cover plate Tilt cylinder-left-EC02B/EC204Part of control system1
Choose
261029826coverplate-EC204-tilt cylinder-DC2/ss10/ss5Part of control system1
Choose
271033484hose terminal-EC204-tilt cylinder-ss9/ss0Part of control system1
Choose
281043991hose terminal-EC204-tilt cylinder-ss9/ss0 R/LPart of control system1
Choose
291029902protective cover tilt cylinder EC204Part of control system1
Choose
311026096hose terminal-EC206-sheet metal for 2 låsslang-solid terminalFor ss01
Choose
321011565holder terminal (2x3/8" + 1x1/4")For ss9SQ1
Choose
331011454hose terminal EC05B/EC206-straight Plate for låsslangFor "With terminals"1
Choose
341055284hose terminal EC204/EC206-straight Plate for 2x låsslangFor "With terminals"1
Choose
Start > engcon för grävmaskiner > Tiltrotators > EC204 > Top part > Standard components
