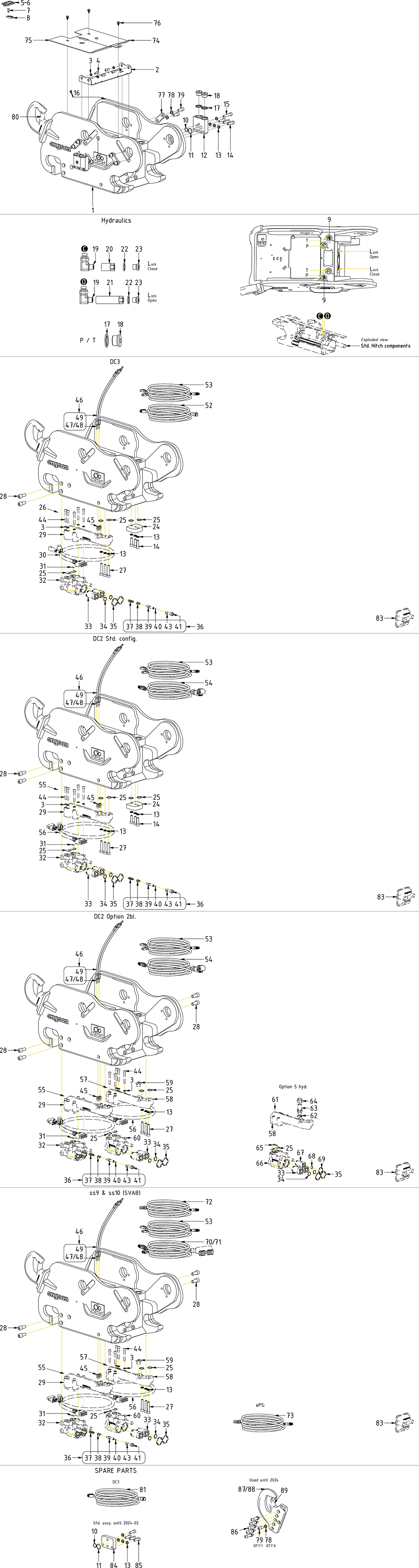

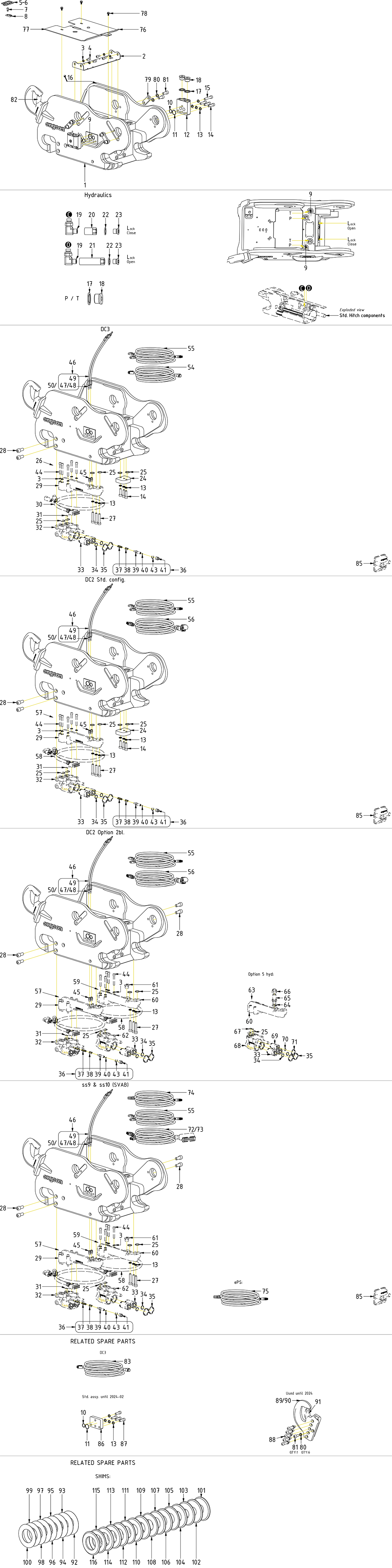

S60 (from 2023)

Pos.Item no.DescriptionExtra infoQty.

21071434 Connection plate S60 bolted1

Choose

3611040 washer NL 8mm 153104QTY depends on config.9

Choose

4610432 screw MC6S 8x16H 12.9 ZFSHL ISO47624

Choose

58000703 Strain relief plate ZL60 4x1

Choose

68000704 Strain relief plate ZL87 6x1

Choose

76000294 Blindnit 4,0x12,3 DIN7337 alu/stål10

Choose

8810662 holder-Deutsch DT/DTM contact6

Choose

9711524 pipeplug DIN 906 1/2" 180156For EC-Oil 2bl. See position on p.32

Choose

10710981 O-ring 18,77x1,78 NBR 90 shore2

Choose

11710984 O-ring 25,12x1,78 NBR 90 shore2

Choose

121071473Side block S60 - for hose connection(Plugs incl.)2

13611041 washer NL 10mm 15310514

Choose

14612019 screw MC6S 10x35 12.9 Geomet ISO4762Torque: 79Nm9

Choose

15611515 screw MC6S 10x50 12.9 Geomet ISO47622

Choose

17710706 Seal washer GBR12 3/4"4

Choose

187000799 Plug Din 908 3/4"4

Choose

197000247 adapter ORFS 067005-04-042

Choose

201071217 Adapter tube-lock short S60Loxeal 83-521

Choose

211071216 Adapter tube-lock long S60Loxeal 83-521

Choose

22710702 Seal washer GBR04 1/4"2

Choose

23711505 Plug Din 908 1/4"2

Choose

241071029 Cover plate S60 - without ECO-block1

Choose

257001829 O-ring 21,95x1,78 NBR 90 shore6

Choose

261073836 Block ECO60 W-S60-QH-2hy 1cl 1el left (assembly/DC3)(POS.3, 25, 29-33,35-36,44-45 incl.)1

Choose

27612022 screw MC6S 10x55 12.9 Geomet ISO47623

Choose

286000197 screw MC6S 14x30 12.9 ZFSHL ISO4762Loxeal 83-522

Choose

291069516 Connection block ECO60 W-S60-quick hitch -left2

Choose

308002155 Power plug 12P ECO60 W S-QH - DC31

Choose

317001849 O-ring 4,48x1,78 NBR 90 shore4

Choose

321070300 Block ECO60 W-S60-Quick hitch with dowelpin -for 2hy left2

Choose

331054580 Coupling ECO 1/2" female V3Torque: 60Nm. (POS.34 incl.)2

Choose

341050018 flat seal for ECO 1/2" V32

Choose

351028229 dirt protection block ECO 1/2"2

Choose

361050794 Central lubrication kit ECO W V2(POS.37-43 incl.)1

Choose

371024113 spring 60581

Choose

381024112 piston sealing KPOR130 12x7,1x2,2(O-ring incl. with seal ring)2

Choose

391024111fat piston for ECO block1

401024115 O-ring 3,69x1,78 NBR 90 shore1

Choose

411047688 Nut greasepiston V2Wrap with thread sealing tape1

Choose

42712429 O-ring 9,25 x 1,78 NBR70Located inside nut1

Choose

437000767 O-ring 14x2 70 shore1

Choose

44610441 screw MC6S 8x60 12.9 untreated ISO47625

Choose

45790172 Push-in Coupling R1/8" PGE06KR lube kit4

Choose

46790175 Rörstuds straight Push-In - 30mm2

Choose

47790176 hose 3m - hose kit - lubricant ECO2

Choose

488000620 Protection Plug DTM06-6SQTY depends on config.1

Choose

498002058 Protection Plug DTM06-12SA1

Choose

508002297 Cable DT-4P -> DT-4S 3m-DC3Attach to 4P1

Choose

51842149 cable QS - QLM - Quick Hitch DTM-4,5mAttach to QS sensors1

Choose

521048528 cable ECO W-machine-DC2-DTM-QS/QSC-3,5mAttach to Left 12P1

Choose

531071930 Block ECO60 W-S60-quick hitch -2hy 1cl 1el left (assembly)(POS.3,25,29,31-33,35-36,44-45,54)1

Choose

548002050 Power plug ECO60 W S-quick hitch -DTMCable gland torque: 6Nm1

Choose

551071932 Block ECO60 W-S60-quick hitch -2hy 1el right (assembly)(POS.3, 25, 30, 33, 35, 44, 49-51)1

Choose

561069728 Connection block ECO60 W-S60-quick hitch -right1

Choose

57711500 Plug VSTIR12ED1

Choose

581071805 Block ECO60 W-S60-Quick hitch with dowelpin -for 2hy right1

Choose

591071931 Block ECO60 W-S60-quick hitch -3hy right (assembly)(POS.3, 25, 33, 35, 44, 56, 60-67)1

Choose

60710704 Seal washer GBR08 1/2"1

Choose

61710244 Bulkhead adapter 1260-08-081

Choose

62711627 protective cover 03015508001

Choose

637001842 O-ring 12,42x1,78 NBR 90 shore2

Choose

641070496 Block ECO60 W-S60-Quick hitch with dowelpin -for 3hy right1

Choose

651053029 Coupling ECO 3/8" female V3(POS.66 incl.)1

Choose

661052976 flat seal for ECO 3/8" V31

Choose

671028274 dirt protection block ECO 3/8"1

Choose

706000120 screw M6SF 8x12H 8.8 FZB(A2K) DIN6921 Räfflad3

Choose

711067225 Lock plate-UNI axle-S60/S70Assemble with slight play4

Choose

72611042 washer NL 12mm8

Choose

736000164 screw MC6S 12x25H 12.9 ZFSHL ISO47628

Choose

74404251 locktab Pejo 204-5-6Lifting hook spare part1

Choose

758001887 Cable DT-4P -> DT-4S 2m-DC3Replaced by POS.50 from 2024-041

Choose

771070776 Cover plate S60 - without side-blockReplaced by POS.12 from 2024-022

Choose

78612018 screw MC6S 10x30 12.9 Geomet ISO4762Torque: 79Nm8

Choose

796000391 Screw-Shoulder screw Ø12x40/M10 12.9 ISO7379Torque: 57Nm5

Choose

801072513 S60-upgrade kit-Lifting hook bolted 5T(POS.72-73, 79, 82 incl.)1

Choose

811074575 S60-upgrade kit-Lifting ear bolted 5T(POS.72-73, 79 incl.)1

Choose

821075454 Locktab engcon hook 5T1
