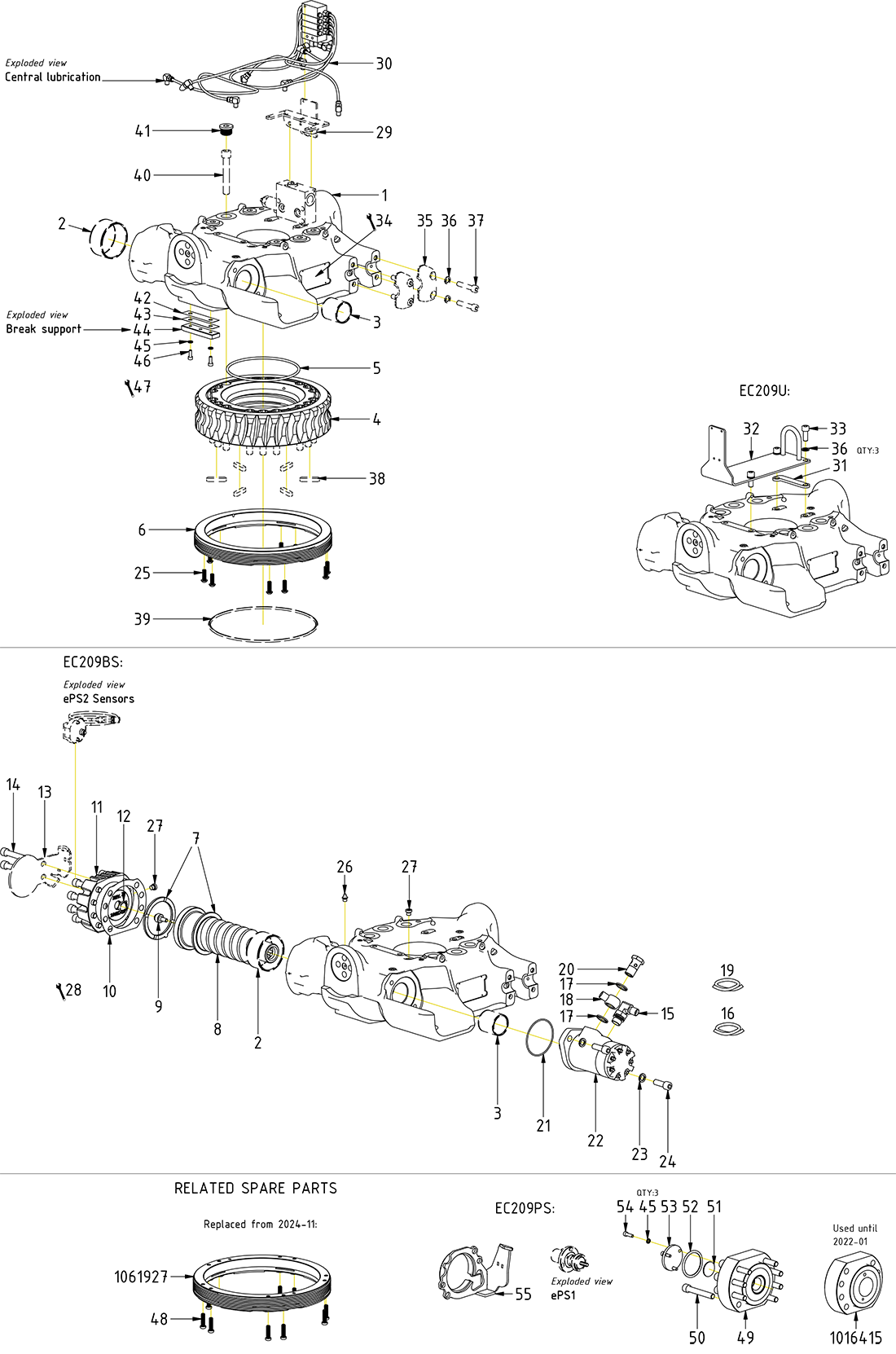

1
1056657
rotator frame 209 v.2 yellow complete
(POS.2-3 incl.)
1
Choose
2
630103
bushing WB802 80/85x40
1
Choose
3
630102
bushing WB802 45/50x50
1
Choose
4
1054242
worm wheel EC209 18 bolt
1
Choose
5
7001660
O-ring 160x5 NBR 90 shore EC209 worm wheel
1
Choose
7
1010758
axial washer with ear EC10,15,20,209,214,219
Face groove toward worm screw
2
8
1016453
worm screw EC209
1
Choose
9
1062693
Magnet Spacer Worm Screw
Loxeal 83-52. Torque: 20Nm
1
Choose
10
1034434
Shim kit End lock EC209/EC214/EC219
1
Choose
11
1065789
End lock EC209S/EC214S/EC219S Cast
(POS.12 incl.)
1
Choose
12
1063616
Seal R09-F 20x27.5x3.2
1
Choose
13
1063372
End lock protection plate EC209S/EC214S/EC219S
Part of control system
1
Choose
14
611517
screw MC6S 12x70 12.9 Geomet ISO4762
Torque: 136Nm
8
Choose
15
710157
adapter 401-06-08 90°
1
Choose
16
7001306
hose
Part of quick hitch
1
Choose
17
710704
Seal washer GBR08 1/2"
2
Choose
18
710193
adapter 830-08-06
1
Choose
19
7001307
hose
Part of quick hitch
1
Choose
20
710274
banjo bolt 4451-08
1
Choose
21
7000920
O-ring 82,22x2,62 NBR 70 shore
1
Choose
22
720112
hydraulic motor Charlynn 131cc - EC209, EC214, EC10, EC15
1
Choose
23
611042
washer NL 12mm
2
Choose
24
6000150
screw MC6S 12x35 12.9 ZFSHL ISO4762
Torque: 136Nm
2
Choose
25
612201
screw TX40 M8x30 FZB 10.+
Torque: 34Nm Tighten in cross pattern
10
Choose
26
711503
Plug VSTIR18ED
4
Choose
28
1055574
Attachment central lubrication & DC2-QSM45/50
Part of control system
1
Choose
29
1056598
lube kit EC209 QSM
1
Choose
30
1058993
spacer 5mm valve block EC209 V2 frame
1
Choose
31
1039502
Attachment central lubrication EC209 without valve block-swivel
1
Choose
32
6000195
screw MC6S 10x25 12.9 ZFSHL ISO4762
3
Choose
34
1022942
clamping half EC206,209 ,214 complete
Part of top part
4
Choose
35
611041
washer NL 10mm 153105
Part of top part
8
Choose
36
611515
screw MC6S 10x50 12.9 Geomet ISO4762
Part of top part. Torque: 79Nm
8
Choose
37
650101
Feather key 10x8x45 EC10, EC02, EC209 550475
Part of quick hitch
6
Choose
38
7001663
O-ring 242x5 NBR 90 shore EC226 worm wheel / EC209 QH
Part of quick hitch
1
Choose
39
6000158
screw MC6S 14x90 12.9 ZFSHL ISO4762
Part of quick hitch. Torque: 217Nm
18
Choose
40
650409
Pipe Plug RP M26x1,5Din 908 FZB
6
Choose
41
1055262
shims break support - EC209 - 0,1mm
1
Choose
42
1055260
shims break support - EC209 - 0,3mm
1
Choose
43
1055258
Plate break support - EC209
1
Choose
44
611039
washer NL 6mm
2
Choose
45
6000017
screw MC6S 6x16 12.9 ZFSHL
2
Choose
47
1016557
End lock EC209/EC214/EC219 ePS
Replaced by POS.11 between 2022-05 - 2022-10
1
Choose
48
6000148
screw MC6S 12x80 12.9 ZFSHL ISO4762
Torque: 136Nm
8
Choose
49
1065370
Spacer-end lock EC209/EC214/EC219
1
Choose
50
7000485
O-ring 27x5 NBR70 End lock ePS
1
Choose
51
1041613
coverplate End lock EC233
1
Choose
52
611513
screw MC6S 6x20 A4 stainless ISO4762
3
Choose
53
1033565
Protection sensor-ePS, SVAB MACS-V2-EC209,EC214,EC219
1
Choose
54
1016415
End lock EC209/EC214/EC219
Replaced by POS.47 from 2022-01 (Used w/o POS.49-52)
1
