Number of hits 47

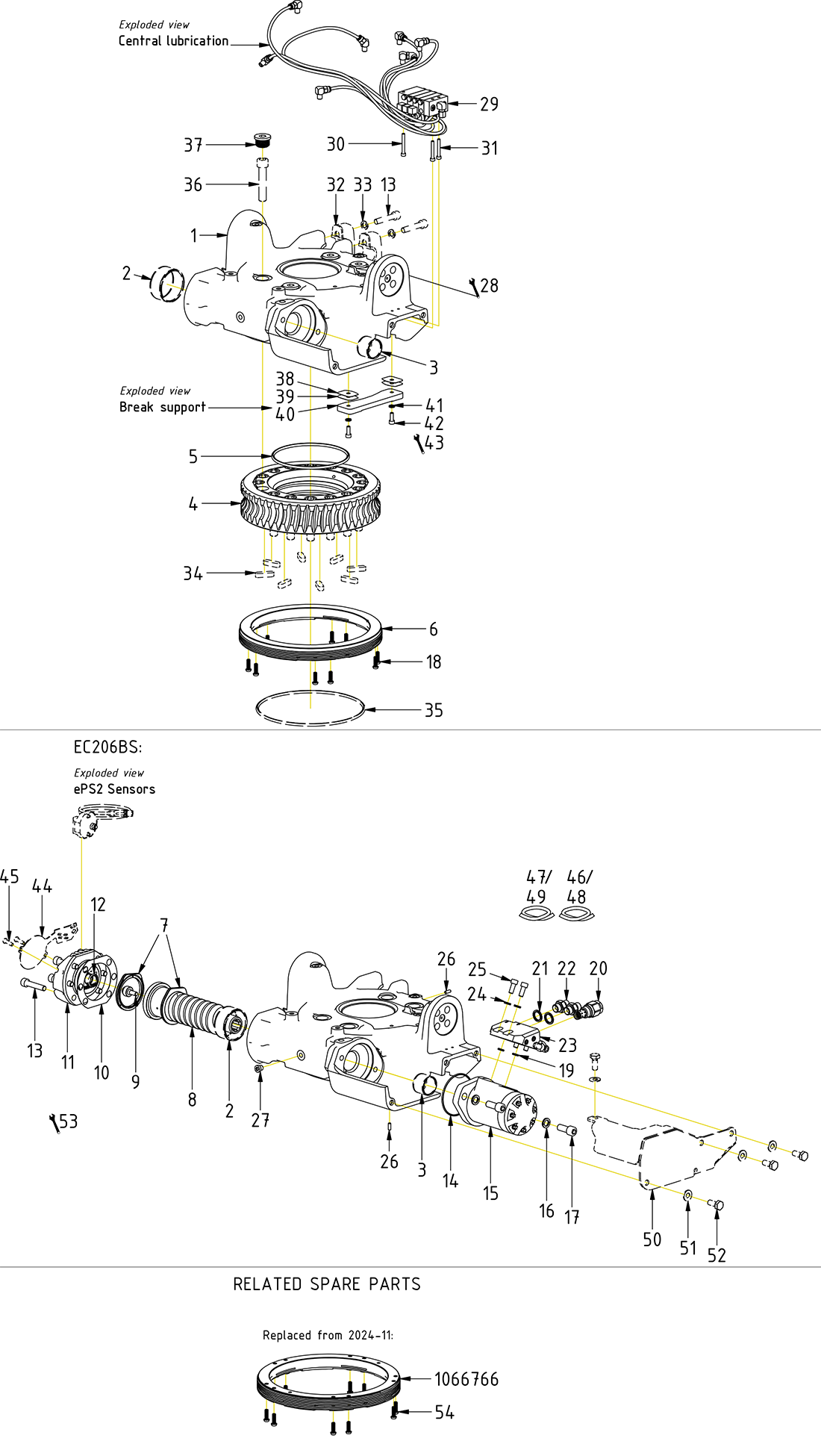

Pos.
Item no.
Description
Extra info
Qty.
1
1068382
Rotator frame 206B V2 Yellow
(POS.2-3 incl.)
1
Choose
2
630305
bushing WB802 60/65x30
2
Choose
3
630315
bushing WB802 35/39x30
2
Choose
4
1058962
Worm wheel EC206B
1
Choose
5
7001666
O-ring 140x5 NBR 90 shore EC206B worm wheel
1
Choose
7
1065378
Axial washer sealed EC206B
Face groove toward worm screw
2
Choose
8
1007329
worm screw EC05B, EC206
1
Choose
9
1062693
Magnet Spacer Worm Screw
Loxeal 83-52. Torque: 20Nm
1
Choose
10
1006356
Shim kit End lock EC05/EC05B/EC206
1
Choose
11
1065664
End lock EC206BS Cast
(POS.12 incl.)
1
Choose
12
1063616
Seal R09-F 20x27.5x3.2
1
Choose
13
611515
screw MC6S 10x50 12.9 Geomet ISO4762
Torque: 79Nm. QTY: 4 part of top
10
Choose
14
7000920
O-ring 82,22x2,62 NBR 70 shore
1
Choose
15
720128
hydraulic motor EC05B, EC206 CL80cc
1
Choose
16
611042
washer NL 12mm
2
Choose
17
6000142
screw MC6S 12x30 12.9 ZFSHL ISO4762
Torque: 136Nm
2
Choose
18
612202
Screw TX30 6x20 10.9 FZB ISO 7380
Torque: 14Nm Tighten in cross pattern
10
Choose
19
710961
O-ring 12,37x2,62 NBR70 EC05B hydraulic pipes / motor
2
Choose
20
1044091
choke valve White 160/200cc fixed 200bar
1
21
710703
Seal washer GBR06 3/8"
2
Choose
22
710106
adapter 136-06-06
2
Choose
23
1069560
Block-Pressure reduction motor EC206B V2
1
Choose
24
611040
washer NL 8mm 153104
4
Choose
25
6000157
screw MC6S 8x20H 12.9 ZFSHL ISO4762
4
Choose
27
7001722
Lubrication kit EC206B V2
1
Choose
28
610405
screw MC6S 5x40 12.9 untreated ISO4762
1
Choose
29
610404
screw MC6S 5x35 12.9 untreated ISO4762
2
Choose
30
1022942
clamping half EC206,209 ,214 complete
Part of top part
2
Choose
31
611041
washer NL 10mm 153105
Part of top part
4
Choose
32
6000370
Feather key 10x8x36(35) C45 EC206B
Part of quick hitch
8
Choose
33
7001665
O-ring 200x5 NBR 70 shore EC206B quick hitch
Part of quick hitch
1
Choose
34
6000172
Screw MC6S 14x70 12.9 Untreated ISO4762
Part of quick hitch. Torque: 217Nm
16
Choose
35
650409
Pipe Plug RP M26x1,5Din 908 FZB
4
Choose
36
1068368
Shim break support - EC206B - 0,3mm
2
Choose
37
1068369
Shim break support - EC206B - 0,1mm
2
Choose
38
1068059
Plate break support - EC206B
2
Choose
39
611039
washer NL 6mm
2
Choose
40
6000017
screw MC6S 6x16 12.9 ZFSHL
2
Choose
42
1062673
End lock protection plate EC206BS
Part of controlsystem
1
Choose
43
6000339
Screw K6S 6x20 10.9 FZB
Part of controlsystem. Torque:79Nm
2
Choose
44
7001690
Hose EC206B ss10 rot A
Part of quick hitch assy.
1
Choose
45
7001691
Hose EC206B ss10 rot B
Part of quick hitch assy.
1
Choose
46
7001669
Hose EC206B ss9 Rot A
Part of quick hitch assy.
1
Choose
47
7001670
Hose EC206B ss9 Rot B
Part of quick hitch assy.
1
Choose
48
1068400
Motor & lubrication cover EC206B
Part of top part assy.
1
Choose
49
611006
washer BRB FZB 10,5x22x2
Part of top part assy.
4
Choose
50
610142
screw M6S 10x25 8.8 FZB
Part of top part assy.
4
Choose
