Sort
Item no.
Description
Search in results
Number of hits 66
Display per page
25
50
all
Page 1 of 3
Pos
Item no.
Description
Extra info
Extra info

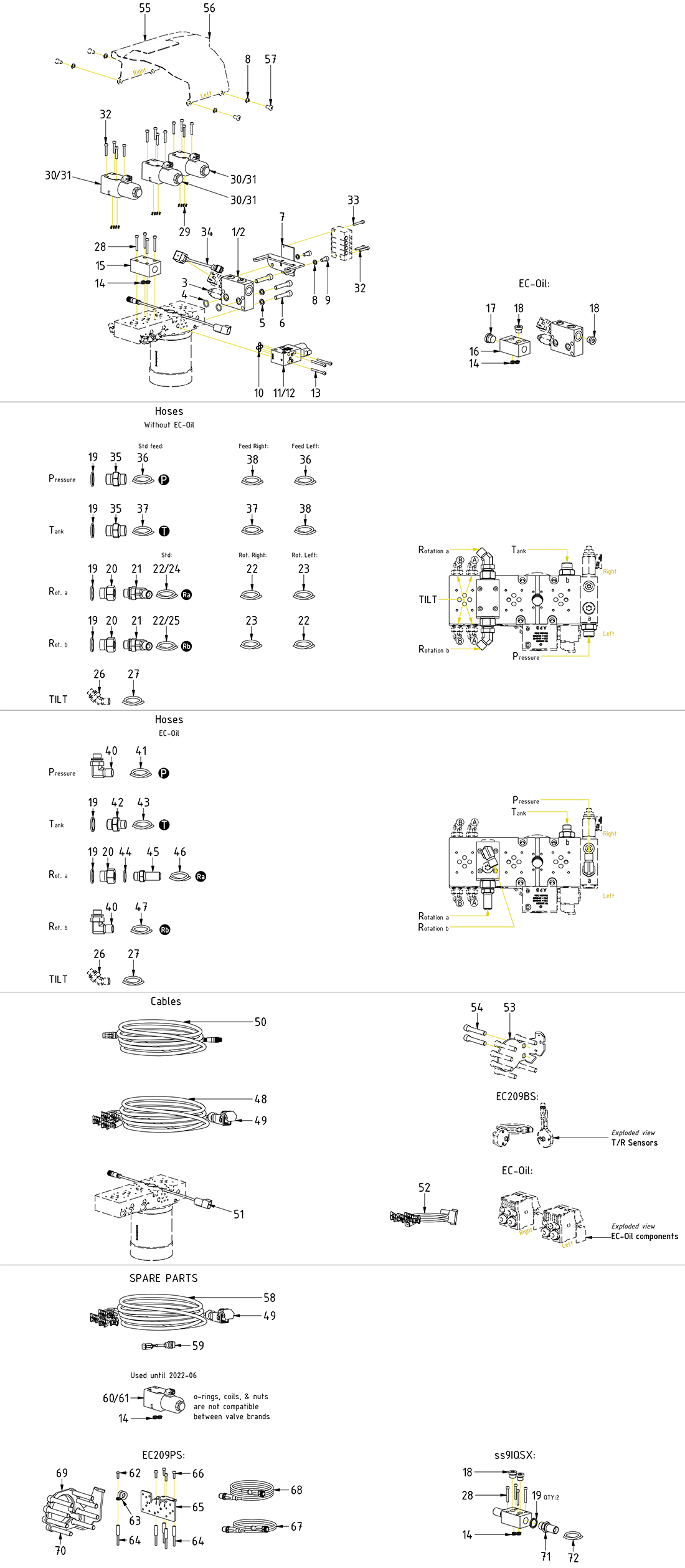

1
1056908
Connection block P ss9 QSM45 12V
(POS.3 incl.)
1
Choose
2
1058798
connection block P with pressure limiter + dump ss9 24V QSM45
(POS.3 incl.)
1
Choose
3
730287
Dubbeltryckbegränsningsventil EC206,209 + ECHF
1
Choose
4
712423
O-ring 15,54 x 2,62 NBR70
2
Choose
5
611041
washer NL 10mm 153105
3
Choose
6
611515
screw MC6S 10x50 12.9 Geomet ISO4762
3
Choose
7
1055574
Attachment central lubrication & DC2-QSM45/50
1
Choose
8
611040
washer NL 8mm 153104
QTY: 4 part of make up
6
Choose
9
610431
screw MC6S 8x16 12.9 untreated ISO4762
2
10
710960
O-ring 7,65x1,78 GREEN Viton 90 shore NG4
4
Choose
11
1042045
directional valve NG4 IQS lock 12V DT ss9 Coil A
(POS.10 incl.)
1
Choose
12
1042188
directional valve NG4 IQS lock 24V DT ss9 Coil A
(POS.10 incl.)
1
Choose
13
610407
screw MC6S 5x50 12.9 untreated ISO4762
Torque: 9,7Nm
3
Choose
14
710901
O-ring 9,25x1,78 GREEN Viton 90 shore NG6
4
Choose
15
1050000
Connection block 2x 1/2" NG6 crossed channels
1
Choose
16
405670
connection block 2x 1/2" NG6
For EC-Oil
1
Choose
17
711500
Plug VSTIR12ED
1
Choose
18
711504
Plug VSTIR38ED
2
Choose
19
710704
Seal washer GBR08 1/2"
QTY: 2 for EC-Oil
4
Choose
20
710233
adapter 234-08-06
QTY: 1 for EC-Oil
2
Choose
21
7000090
Adapter 402-06-06 45°
2
Choose
22
7001587
Hose
QTY: 1 for Rot. Right/Left
2
Choose
23
7001589
Hose
Rot. Left: Use this for "a" Rot. Right: Use this for "b"
1
Choose
24
7001846
Hose
1
Choose
25
7001847
Hose
1
Choose
Page 1 of 3
