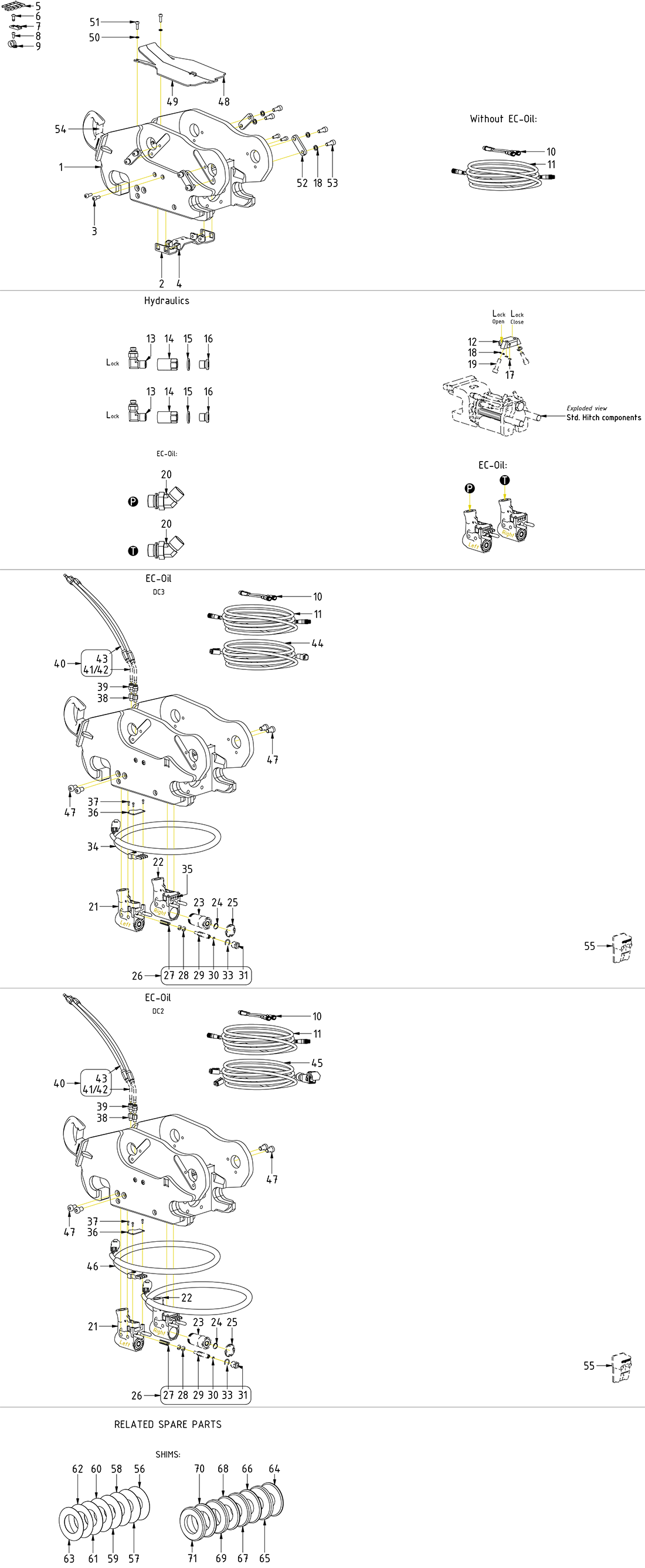

Pos.
Item no.
Description
Extra info
Specification:
2
1078275
Connection plate S40 bolted
1
Choose
3
6000017
screw MC6S 6x16 12.9 ZFSHL
4
Choose
4
6000411
Cage nut M6
4
Choose
5
8000703
Strain relief plate ZL60 4x
1
Choose
6
6000294
Blindnit 4,0x12,3 DIN7337 alu/stål
QTY: 4 for DC2
2
Choose
7
810662
holder-Deutsch DT/DTM contact
For DC2
2
Choose
8
6000077
screw MC6S 5x12 12.9 untreated ISO4762
QTY: 2 for DC2
1
Choose
9
6000241
Rubber Steel Clamp ø8
QTY: 2 for DC2
1
Choose
10
8002139
Cable M12-8P -> 2x M12-4S Y-splitter QSM/S
Attach to QS sensors
1
Choose
11
8002249
Cable QS - QLM - Quick Hitch M12-4,35m
Attach to Y-split
1
Choose
12
1079367
QSM40 Lock Cylinder Adapter S40
1
Choose
13
7002020
Adapter ORFS 067005-04-02
2
Choose
14
1071217
Adapter tube-lock short S45/S60/S70
2
Choose
15
710702
Seal washer GBR04 1/4"
2
Choose
16
711505
Plug Din 908 1/4"
2
Choose
17
7001568
O-ring 5,28x1,78 NBR 70 shore
Part of Std. Hitch components
2
Choose
18
611040
washer NL 8mm 153104
QTY: 2 part of Std. Hitch comp.
10
Choose
19
611519
screw MC6S 8x30 Geomet ISO4762
Part of Std. Hitch components
2
Choose
20
7000091
adapter 402-08-08 45°
2
Choose
21
1078891
Block ECO40 W-S40 QH-1hy 1cl
(POS.23, 25-26 incl.)
1
Choose
22
1078892
Block ECO40 W-S40 QH-1hy
(POS.23, 25 incl.)
1
Choose
23
1053029
Coupling ECO 3/8" female V3
Torque: 60Nm. (POS.24 incl.)
2
Choose
24
1052976
flat seal for ECO 3/8" V3
2
Choose
25
1028274
dirt protection block ECO 3/8"
2
Choose
26
1050794
Central lubrication kit ECO W V2
(POS.27-33 incl.)
1
Choose
Page 1 of 3
