Number of hits 32
Display per page25all
Page 1 of 2

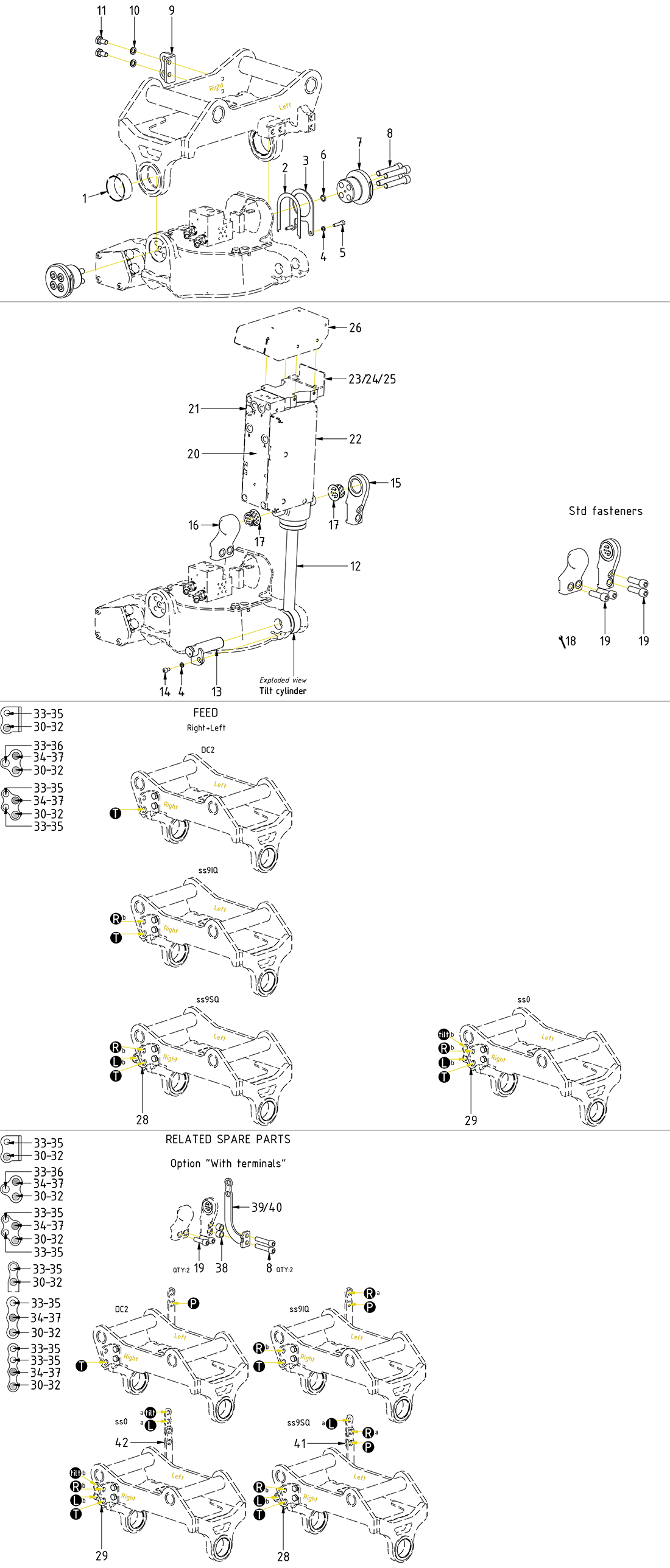

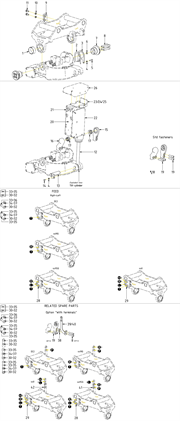

Pos.Item no.DescriptionExtra infoSpecification:
16000004tilt bushing EC204 55/60x25 WB802(Incl. in Top part)2
Choose
21027820shims tilt axle - EC204 0,5mmUse as required1
Choose
31027785tilt axial washer EC2041
Choose
4611039washer NL 6mm3
Choose
56000083screw MC6S 6x25 12.9 untreated ISO47622
Choose
O-ring 9,92x2,62 NBR70 EC209/EC219/EC226 cylinder axle6710968O-ring 9,92x2,62 NBR70 EC209/EC219/EC226 cylinder axle2
Choose
71016576tilt axle EC2042
Choose
86000140screw MC6S 12x60 12.9 ZFSHL ISO4762Torque: 136Nm8
Choose
91045070hose terminal Top part EC204 rightFor Feed Right+Left1
Choose
washer NL 10mm 15310510611041washer NL 10mm 153105For Feed Right+Left4
Choose
11610141screw M6S 10x20 8.8 FZBFor Feed Right+Left2
Choose
121029849tilt cylinder EC2041
Choose
131016572cylinder axle EC2041
Choose
14611512screw MC6S 6x10 12.9 ZFSHL ISO47621
Choose
151036606yoke bracket EC204 rear cast complete(POS.17 incl.)1
Choose
161029052yoke bracket EC204 forward complete(POS.17 incl.)1
Choose
176000001bushing BWG-F 25/31/38/1,5x202
Choose
19610572screw MC6S 12x40H 12.9 untreated ISO4762Torque: 136Nm4
207000635valve block EC204 tilt cylinder complete with over centerPart of control system1
Choose
211029781cover plate-tilt cylinder-right-EC204Part of control system1
Choose
221068975Cover plate Tilt cylinder-left-EC02B/EC204Part of control system1
Choose
231029826coverplate-EC204-tilt cylinder-DC2/ss10/ss5Part of control system1
Choose
241033484hose terminal-EC204-tilt cylinder-ss9/ss0Part of control system1
Choose
251043991hose terminal-EC204-tilt cylinder-ss9/ss0 R/LPart of control system1
Choose
261029902protective cover tilt cylinder EC204Part of control system1
Choose
Page 1 of 2
Start > engcon för grävmaskiner > Tiltrotators > EC204 > Top part > Standard components
