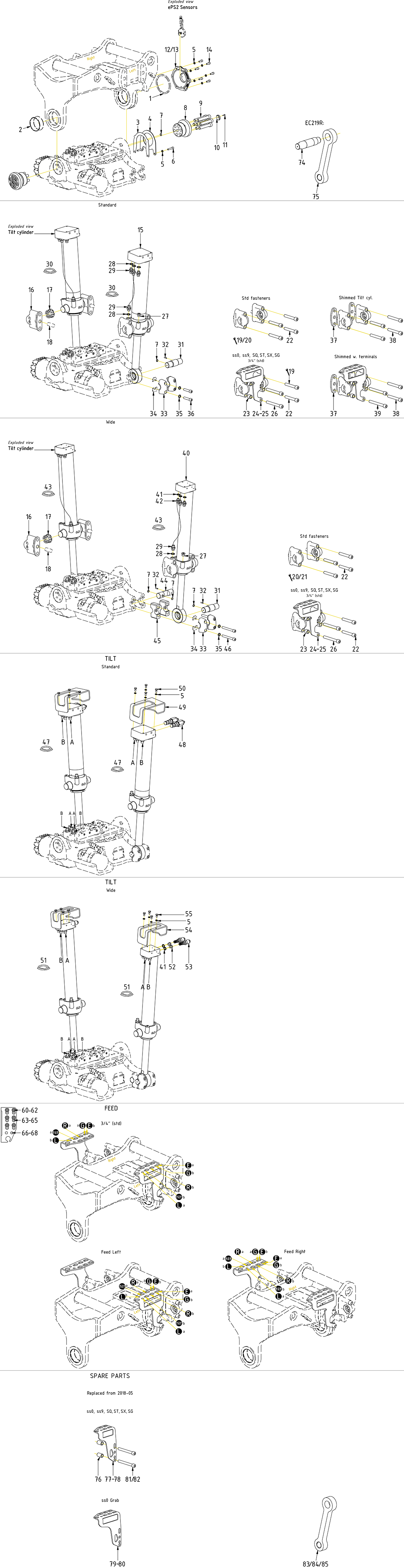

Standard komponenter 'ECHF'

Pos

Artikel

Extra Info

Antal i ritning

Pris

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

Position35

Antal i ritning8

33,00 SEK

exkl. moms

Washer NL12-DPE 13,0x19,5x2,7

Article no: 611042

33,00 SEK

exkl. moms

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

Position14

Antal i ritning6

14,00 SEK

exkl. moms

Screw MC6S 8x20H 12.9 ZFSHL ISO4762

Article no: 6000157

14,00 SEK

exkl. moms

Screw MC6S 16x110 12.9 ZFSHL ISO4762

Article no: 6000253

Position38

Antal i ritning4

58,00 SEK

exkl. moms

Screw MC6S 16x110 12.9 ZFSHL ISO4762

Article no: 6000253

QTY depends (4-8). Torque: 333Nm

58,00 SEK

exkl. moms

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Position36

Antal i ritning8

21,00 SEK

exkl. moms

Screw MC6S 12x55 12.9 ZFSHL ISO4762

Article no: 6000155

Torque: 136Nm

21,00 SEK

exkl. moms

Adapter bulkhead 1260-12-12

Article no: 712210

Position72

Antal i ritning2

184,00 SEK

exkl. moms

Adapter bulkhead 1260-12-12

Article no: 712210

184,00 SEK

exkl. moms

Screw MC6S 12x100 12.9 ZFSHL ISO4762

Article no: 611514

Position46

Antal i ritning8

55,00 SEK

exkl. moms

Screw MC6S 12x100 12.9 ZFSHL ISO4762

Article no: 611514

Torque: 136Nm

55,00 SEK

exkl. moms

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

Position55

Antal i ritning8

9,00 SEK

exkl. moms

Screw M6S 8x14 8.8 FZB ISO4017

Article no: 610188

9,00 SEK

exkl. moms

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

Position54

Antal i ritning2

310,00 SEK

exkl. moms

Hose protection Tiltcyl EC05B-15B, 206-214 overcenter

Article no: 1003774

310,00 SEK

exkl. moms

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

Position50

Antal i ritning8

9,00 SEK

exkl. moms

Screw M6S 8x16 8.8 FZB ISO4017

Article no: 610122

9,00 SEK

exkl. moms

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Position53

Antal i ritning4

3 240,00 SEK

exkl. moms

Overcenter adjustable-EC206/209/214/219W/226W/05B-15B

Article no: 730269

Torque: 45Nm

3 240,00 SEK

exkl. moms

Yoke Bracket EC10-20, EC219-226 cast grease-free

Article no: 1017151

Position16

Antal i ritning4

1 730,00 SEK

exkl. moms

Yoke Bracket EC10-20, EC219-226 cast grease-free

Article no: 1017151

(POS.17-18 incl.)

1 730,00 SEK

exkl. moms

Bushing BWG-F 40/50/55/5x30

Article no: 631001

Position17

Antal i ritning4

360,00 SEK

exkl. moms

Bushing BWG-F 40/50/55/5x30

Article no: 631001

360,00 SEK

exkl. moms

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

Position60

Antal i ritning2

78,00 SEK

exkl. moms

Washer NL20-DPE 21,4x30,7x3,7

Article no: 611098

78,00 SEK

exkl. moms

Adapter bulkhead 1260-08-08

Article no: 710244

Position61

Antal i ritning2

127,00 SEK

exkl. moms

Adapter bulkhead 1260-08-08

Article no: 710244

127,00 SEK

exkl. moms

Nut bulkhead adapter 1270-08

Article no: 710254

Position62

Antal i ritning2

25,00 SEK

exkl. moms

Nut bulkhead adapter 1270-08

Article no: 710254

25,00 SEK

exkl. moms

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

Position63

Antal i ritning2

52,00 SEK

exkl. moms

Washer NL16-DPE 17,0x25,4x3,7

Article no: 611044

52,00 SEK

exkl. moms

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

Position66

Antal i ritning2

36,00 SEK

exkl. moms

Washer NL1/2"-DPE 13,5x19,5x2,5

Article no: 611096

36,00 SEK

exkl. moms

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

Position22

Antal i ritning8

101,00 SEK

exkl. moms

Screw MC6S 16x100 12.9 ZFSHL ISO4762

Article no: 6000156

QTY depends (4-8). Torque: 333Nm

101,00 SEK

exkl. moms

Spacer Hose Bracket 20mm

Article no: 1023777

Position23

Antal i ritning4

280,00 SEK

exkl. moms

Spacer Hose Bracket 20mm

Article no: 1023777

280,00 SEK

exkl. moms

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Position26

Antal i ritning4

128,00 SEK

exkl. moms

Screw MC6S 16x130 12.9 ZFSHL ISO4762

Article no: 6000154

Torque: 333Nm

128,00 SEK

exkl. moms

Spacer Hose Bracket 39mm

Article no: 1005911

Position76

Antal i ritning4

310,00 SEK

exkl. moms

Spacer Hose Bracket 39mm

Article no: 1005911

Replaced by POS.23 from 2018-05

310,00 SEK

exkl. moms

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Position39

Antal i ritning4

116,00 SEK

exkl. moms

Screw MC6S 16x140 12.9 ZFSHL ISO4762

Article no: 6000152

Torque: 333Nm

116,00 SEK

exkl. moms

Plug Din 908 1/4"

Article no: 711505

Position52

Antal i ritning4

25,00 SEK

exkl. moms

Plug Din 908 1/4"

Article no: 711505

25,00 SEK

exkl. moms

Slotted pin RPE5x20

Article no: 640413

Position32

Antal i ritning2

14,00 SEK

exkl. moms

Slotted pin RPE5x20

Article no: 640413

QTY: 4 for option Wide

14,00 SEK

exkl. moms

Bushing tilt EC214/EC219 WB802 85/90x35

Article no: 630321

Position2

Antal i ritning2

860,00 SEK

exkl. moms

Bushing tilt EC214/EC219 WB802 85/90x35

Article no: 630321

(Incl. in Top part)

860,00 SEK

exkl. moms

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Position3

Antal i ritning1

160,00 SEK

exkl. moms

Shim tilt axle - EC214/EC219 0,5mm

Article no: 1016420

Use as required

160,00 SEK

exkl. moms

Tilt axial washer EC214, EC219

Article no: 1016417

Position4

Antal i ritning1

1 070,00 SEK

exkl. moms

Tilt axial washer EC214, EC219

Article no: 1016417

1 070,00 SEK

exkl. moms

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

Position6

Antal i ritning2

19,00 SEK

exkl. moms

Screw MC6S 8x40 12.9 ZFSHL ISO4762

Article no: 6000145

19,00 SEK

exkl. moms

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

Position7

Antal i ritning4

9,00 SEK

exkl. moms

O-ring 9,92x2,62 NBR 70 shore EC209/219/226 cylinder axle

Article no: 710968

QTY: 8 for option Wide

9,00 SEK

exkl. moms

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Position9

Antal i ritning14

91,00 SEK

exkl. moms

Screw MC6S 16x90 12.9 ZFSHL ISO4762

Article no: 6000151

Torque: 333Nm

91,00 SEK

exkl. moms

Nut bulkhead adapter 1270-12

Article no: 712211

Position73

Antal i ritning2

67,00 SEK

exkl. moms

Nut bulkhead adapter 1270-12

Article no: 712211

67,00 SEK

exkl. moms

Washer NL1"-DPE 27,9x39x3,4

Article no: 611095

Position71

Antal i ritning2

102,00 SEK

exkl. moms

Washer NL1"-DPE 27,9x39x3,4

Article no: 611095

102,00 SEK

exkl. moms

Hose bracket feed ECHF

Article no: 1027200

Position70

Antal i ritning2

1 160,00 SEK

exkl. moms

Hose bracket feed ECHF

Article no: 1027200

1 160,00 SEK

exkl. moms

Screw MC6S 16x150 12.9 untreated ISO4762

Article no: 610537

Position82

Antal i ritning4

156,00 SEK

exkl. moms

Screw MC6S 16x150 12.9 untreated ISO4762

Article no: 610537

For option Shimmed Tilt cyl.

156,00 SEK

exkl. moms

Seal PAK-110x125x7-L

Article no: 1064201

Position1

Antal i ritning1

83,00 SEK

exkl. moms

Seal PAK-110x125x7-L

Article no: 1064201

NB! Face groove toward top part (Incl. in Top part)

83,00 SEK

exkl. moms

Tilt axle EC214S/EC219S

Article no: 1064196

Position8

Antal i ritning2

4 130,00 SEK

exkl. moms

Tilt axle EC214S/EC219S

Article no: 1064196

4 130,00 SEK

exkl. moms

Magnet spacer tilt axle EC214S/EC219S

Article no: 1064202

Position10

Antal i ritning1

143,00 SEK

exkl. moms

Magnet spacer tilt axle EC214S/EC219S

Article no: 1064202

For EC219S

143,00 SEK

exkl. moms

Screw MC6S 4x14 8.8 FZB ISO4762

Article no: 610420

Position11

Antal i ritning1

9,00 SEK

exkl. moms

Screw MC6S 4x14 8.8 FZB ISO4762

Article no: 610420

For EC219S

9,00 SEK

exkl. moms

Cover Tilt Axle EC214S/EC219S Cast

Article no: 1065799

Position12

Antal i ritning1

1 430,00 SEK

exkl. moms

Cover Tilt Axle EC214S/EC219S Cast

Article no: 1065799

For EC219S

1 430,00 SEK

exkl. moms

Protection Plate tilt axle EC214/EC219

Article no: 1064717

Position13

Antal i ritning1

360,00 SEK

exkl. moms

Protection Plate tilt axle EC214/EC219

Article no: 1064717

For EC219/EC219PS Face the groove downwards

360,00 SEK

exkl. moms

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

Position37

Antal i ritning4

710,00 SEK

exkl. moms

Shim yoke bracket - EC209-EC226 - 10mm (cast yoke)

Article no: 1007041

For option Shimmed Tilt cyl.

710,00 SEK

exkl. moms

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

Position18

Antal i ritning4

92,00 SEK

exkl. moms

Cylindrical pin CPK Ø20x50 m6

Article no: 650211

92,00 SEK

exkl. moms

Hose bracket 8 Hoses left V2

Article no: 1047137

Position24

Antal i ritning1

710,00 SEK

exkl. moms

Hose bracket 8 Hoses left V2

Article no: 1047137

710,00 SEK

exkl. moms

Hose bracket 8 Hoses right V2

Article no: 1047138

Position25

Antal i ritning1

710,00 SEK

exkl. moms

Hose bracket 8 Hoses right V2

Article no: 1047138

710,00 SEK

exkl. moms

Spacer Hose Bracket 28mm

Article no: 1030616

Position69

Antal i ritning4

230,00 SEK

exkl. moms

Spacer Hose Bracket 28mm

Article no: 1030616

230,00 SEK

exkl. moms

Hose Tilt Long - EC219 - ECHF/QSM

Article no: 7000027

Position47

Antal i ritning4

800,00 SEK

exkl. moms

Hose Tilt Long - EC219 - ECHF/QSM

Article no: 7000027

800,00 SEK

exkl. moms

Overcenter adjustable-EC219/226/233/20/30

Article no: 730277

Position48

Antal i ritning4

3 550,00 SEK

exkl. moms

Overcenter adjustable-EC219/226/233/20/30

Article no: 730277

Torque: 60Nm

3 550,00 SEK

exkl. moms

Hose Tilt Long - EC226 - ECHF/QSM EC219W/EC226W

Article no: 7000031

Position51

Antal i ritning4

870,00 SEK

exkl. moms

Hose Tilt Long - EC226 - ECHF/QSM EC219W/EC226W

Article no: 7000031

870,00 SEK

exkl. moms

Hose protection Tiltcyl EC20B/30/219/226/233 Overcenter

Article no: 1014280

Position49

Antal i ritning2

360,00 SEK

exkl. moms

Hose protection Tiltcyl EC20B/30/219/226/233 Overcenter

Article no: 1014280

360,00 SEK

exkl. moms

Hose Tilt Short - EC219

Article no: 742606

Position30

Antal i ritning2

670,00 SEK

exkl. moms

Hose Tilt Short - EC219

Article no: 742606

670,00 SEK
