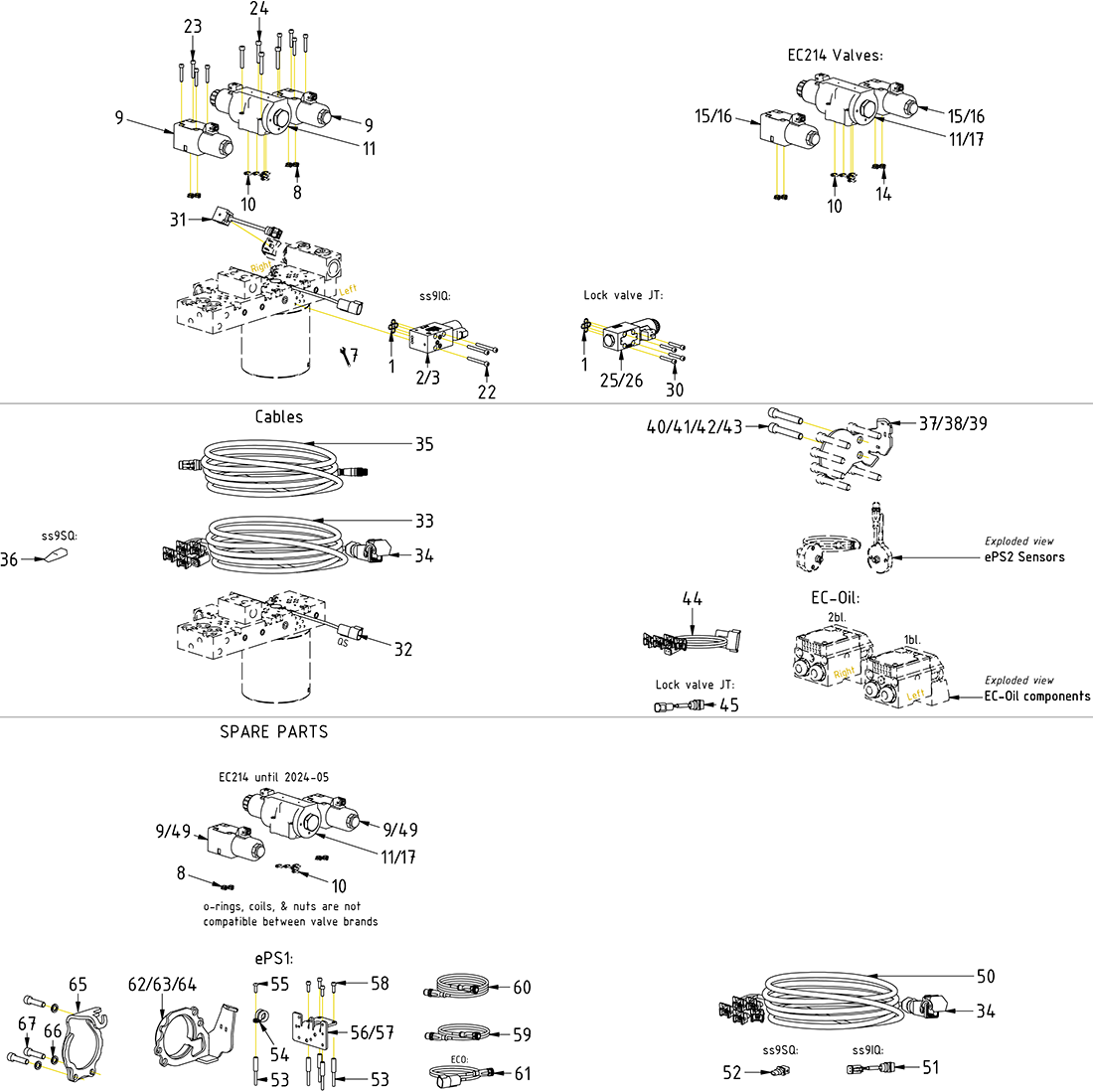

ss9 'ECHF'

Pos

Article

Extra Info

Quantity in drawing

Price (excl. VAT)

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position46

Quantity in drawing1

6,740.00 SEK

excl. VAT

Out of stock

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut & o-ring with chokevalve incl. Assemble with POS.27/28

6,740.00 SEK

Out of stock

Nut directional valve NG4

Article no: 1006785

Position29

Quantity in drawing1

300.00 SEK

excl. VAT

In stock

Nut directional valve NG4

Article no: 1006785

300.00 SEK

In stock

Directional valve NG4 lock 24V JT

Article no: 730310

Position25

Quantity in drawing1

2,780.00 SEK

excl. VAT

In stock

Directional valve NG4 lock 24V JT

Article no: 730310

(POS.1, 27, 29 incl.)

2,780.00 SEK

In stock

Jumper DT 2P POS:1-2

Article no: 1034439

Position36

Quantity in drawing1

188.00 SEK

excl. VAT

In stock

Jumper DT 2P POS:1-2

Article no: 1034439

Plug DT connector for ss9SQ

188.00 SEK

In stock

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

Position57

Quantity in drawing1

810.00 SEK

excl. VAT

In stock

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

For Trimble

810.00 SEK

In stock

Directional valve closed NG10 12V

Article no: 730342

Position17

Quantity in drawing1

5,770.00 SEK

excl. VAT

Few in stock (2)

Directional valve closed NG10 12V

Article no: 730342

EC214 (POS.14, 18, 13 incl.)

5,770.00 SEK

Few in stock (2)

Adapter cable JT 2S-DT 2P

Article no: 8001989

Position45

Quantity in drawing1

640.00 SEK

excl. VAT

In stock

Adapter cable JT 2S-DT 2P

Article no: 8001989

640.00 SEK

In stock

Directional valve closed NG10 24V

Article no: 730341

Position11

Quantity in drawing1

5,640.00 SEK

excl. VAT

In stock

Directional valve closed NG10 24V

Article no: 730341

(POS.10, 12, 13 incl.)

5,640.00 SEK

In stock

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position47

Quantity in drawing1

200.00 SEK

excl. VAT

Few in stock (5)

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring incl.

200.00 SEK

Few in stock (5)

Directional valve NG4 lock 12V JT

Article no: 730312

Position26

Quantity in drawing1

2,780.00 SEK

excl. VAT

Few in stock (5)

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.1, 28, 29 incl.)

2,780.00 SEK

Few in stock (5)

Coil NG4 12V JT

Article no: 730313

Position28

Quantity in drawing1

1,180.00 SEK

excl. VAT

In stock

Coil NG4 12V JT

Article no: 730313

1,180.00 SEK

In stock

Protection sensor -ePS,SVAB MACS-EC233

Article no: 1040940

Position63

Quantity in drawing1

5,540.00 SEK

excl. VAT

In stock

Protection sensor -ePS,SVAB MACS-EC233

Article no: 1040940

5,540.00 SEK

In stock

End lock protection plate EC233/EC333

Article no: 1064168

Position39

Quantity in drawing1

520.00 SEK

excl. VAT

In stock

End lock protection plate EC233/EC333

Article no: 1064168

520.00 SEK

In stock

Nut directional valve Argo Hytos

Article no: 730135

Position13

Quantity in drawing3

192.00 SEK

excl. VAT

In stock

Nut directional valve Argo Hytos

Article no: 730135

QTY: 1 for EC214

192.00 SEK

In stock

Nut directional valve ATOS

Article no: 7001887

Position21

Quantity in drawing3

32.00 SEK

excl. VAT

In stock

Nut directional valve ATOS

Article no: 7001887

32.00 SEK

In stock

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Position19

Quantity in drawing1

1,550.00 SEK

excl. VAT

In stock

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

1,550.00 SEK

In stock

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position4

Quantity in drawing1

1,430.00 SEK

excl. VAT

Few in stock (5)

Coil NG4 IQS lock 12V DT

Article no: 1042065

1,430.00 SEK

Few in stock (5)

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

Position56

Quantity in drawing1

980.00 SEK

excl. VAT

In stock

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

For Topcon/LEICA/Novatron

980.00 SEK

In stock

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

Position42

Quantity in drawing8

60.00 SEK

excl. VAT

In stock

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

For EC226. Torque: 217Nm

60.00 SEK

In stock

End lock protection plate EC226S/EC326

Article no: 1063521

Position38

Quantity in drawing1

490.00 SEK

excl. VAT

In stock

End lock protection plate EC226S/EC326

Article no: 1063521

490.00 SEK

In stock

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Position41

Quantity in drawing8

25.00 SEK

excl. VAT

In stock

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

For EC219. Torque: 136Nm

25.00 SEK

In stock

Coil NG4 24V JT

Article no: 730311

Position27

Quantity in drawing1

920.00 SEK

excl. VAT

In stock

Coil NG4 24V JT

Article no: 730311

920.00 SEK

In stock

Coil 12V NG6 JT on/off

Article no: 730117

Position18

Quantity in drawing1

1,340.00 SEK

excl. VAT

In stock

Coil 12V NG6 JT on/off

Article no: 730117

1,340.00 SEK

In stock

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Position20

Quantity in drawing1

580.00 SEK

excl. VAT

Out of stock

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

580.00 SEK

Out of stock

Screw MC6S 6x38 12.9 untreated ISO4762

Article no: 6000133

Position24

Quantity in drawing4

101.00 SEK

excl. VAT

In stock

Screw MC6S 6x38 12.9 untreated ISO4762

Article no: 6000133

Torque: 17Nm

101.00 SEK

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

Position6

Quantity in drawing1

25.00 SEK

excl. VAT

In stock

Nut bulkhead adapter 1270-04

Article no: 710250

25.00 SEK

In stock

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

Position61

Quantity in drawing1

1,160.00 SEK

excl. VAT

Out of stock

Resistor cable 120ohm M12 5S-DTM 6P-0,4m

Article no: 8000825

For ECO w. ePS. Instead of POS.60

1,160.00 SEK

Out of stock

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

Position67

Quantity in drawing3

25.00 SEK

excl. VAT

Out of stock

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

25.00 SEK

Out of stock

Directional valve closed NG6 24V JT

Article no: 730110

Position9

Quantity in drawing2

4,220.00 SEK

excl. VAT

In stock

Directional valve closed NG6 24V JT

Article no: 730110

EC219-233 (POS.8, 12, 13 incl.)

4,220.00 SEK

In stock

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position5

Quantity in drawing1

1,430.00 SEK

excl. VAT

In stock

Coil NG4 IQS lock 24V DT

Article no: 1042066

1,430.00 SEK

In stock

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

Position65

Quantity in drawing1

1,980.00 SEK

excl. VAT

Few in stock (5)

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

Replaced by POS.64 from 2020-07

1,980.00 SEK

Few in stock (5)

Jumper JT 2P POS:1-2

Article no: 1018662

Position52

Quantity in drawing1

190.00 SEK

excl. VAT

In stock

Jumper JT 2P POS:1-2

Article no: 1018662

Used with POS.50 for ss9SQ

190.00 SEK

In stock

Protection sensor -ePS V2-EC226

Article no: 1055677

Position64

Quantity in drawing1

1,280.00 SEK

excl. VAT

Out of stock

Protection sensor -ePS V2-EC226

Article no: 1055677

1,280.00 SEK

Out of stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position23

Quantity in drawing8

9.00 SEK

excl. VAT

In stock

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

9.00 SEK

In stock

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position62

Quantity in drawing1

2,800.00 SEK

excl. VAT

Out of stock

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

2,800.00 SEK

Out of stock

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position40

Quantity in drawing8

39.00 SEK

excl. VAT

In stock

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

For EC214. Torque: 136Nm

39.00 SEK

In stock

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

Position2

Quantity in drawing1

12,500.00 SEK

excl. VAT

In stock

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

For QS, CW, ECPUP, ss SIQ (POS.1, 4, 6 incl.)

12,500.00 SEK

In stock

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

Position60

Quantity in drawing1

1,940.00 SEK

excl. VAT

In stock

Resistor cable 120ohm M12 5S-M12 5S-3m

Article no: 8000824

1,940.00 SEK

In stock

Unit cable ss9-2 JT EC206-EC233-3,5m

Article no: 1032909

Position50

Quantity in drawing1

4,080.00 SEK

excl. VAT

In stock

Unit cable ss9-2 JT EC206-EC233-3,5m

Article no: 1032909

Replaced by POS.33 from 2022-06

4,080.00 SEK

In stock

Rubber Steel Clamp Ø16

Article no: 6000009

Position54

Quantity in drawing1

12.00 SEK

excl. VAT

In stock

Rubber Steel Clamp Ø16

Article no: 6000009

12.00 SEK

In stock

Unit cable ss9-2 DT EC206-EC233-3,5m

Article no: 8001823

Position33

Quantity in drawing1

2,970.00 SEK

excl. VAT

In stock

Unit cable ss9-2 DT EC206-EC233-3,5m

Article no: 8001823

2,970.00 SEK

In stock

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position34

Quantity in drawing1

360.00 SEK

excl. VAT

In stock

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

360.00 SEK

In stock

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position1

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9.00 SEK

In stock

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position37

Quantity in drawing1

480.00 SEK

excl. VAT

In stock

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

480.00 SEK

In stock

Directional valve closed NG6 24V JT ATOS

Article no: 7001618

Position15

Quantity in drawing1

1,550.00 SEK

excl. VAT

In stock

Directional valve closed NG6 24V JT ATOS

Article no: 7001618

EC214 (POS.14, 19, 21 incl.)

1,550.00 SEK

In stock

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position14

Quantity in drawing8

15.00 SEK

excl. VAT

In stock

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

15.00 SEK

In stock

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Position22

Quantity in drawing3

9.00 SEK

excl. VAT

In stock

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Torque: 9,7Nm

9.00 SEK

In stock

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position30

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

9.00 SEK

In stock

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position58

Quantity in drawing4

9.00 SEK

excl. VAT

In stock

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Torque: 9,7Nm

9.00 SEK

In stock

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position43

Quantity in drawing12

21.00 SEK

excl. VAT

In stock

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

For EC233. Torque: 136Nm

21.00 SEK

In stock

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

Position59

Quantity in drawing1

1,220.00 SEK

excl. VAT

In stock

Extension cable 5-pole M12-FULL 0,75m Robo hose

Article no: 8000784

1,220.00 SEK

In stock

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position53

Quantity in drawing5

162.00 SEK

excl. VAT

In stock

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Torque: 9,7Nm

162.00 SEK

In stock

Directional valve NG4 IQS lock 24V DT ss9 Coil A

Article no: 1042188

Position3

Quantity in drawing1

12,800.00 SEK

excl. VAT

In stock

Directional valve NG4 IQS lock 24V DT ss9 Coil A

Article no: 1042188

For QS, CW, ECPUP, ss SIQ, EC233 (POS.1, 5, 6 incl.)

12,800.00 SEK

In stock

Adapter cable M12 8P-DTM 6S

Article no: 842148

Position35

Quantity in drawing1

2,700.00 SEK

excl. VAT

In stock

Adapter cable M12 8P-DTM 6S

Article no: 842148

For QS

2,700.00 SEK

In stock

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

Position44

Quantity in drawing1

2,240.00 SEK

excl. VAT

Few in stock (1)

Adapter cable DTM 12P-DT 2S/4xJT 2S

Article no: 1029599

For EC-Oil. Instead of POS.33 & 35

2,240.00 SEK

Few in stock (1)

Adapter cable JT 2P-DT 2S

Article no: 1017478

Position51

Quantity in drawing1

640.00 SEK

excl. VAT

In stock

Adapter cable JT 2P-DT 2S

Article no: 1017478

Used with POS.50 for ss9IQ

640.00 SEK

In stock

Directional valve closed NG6 12V JT

Article no: 730112

Position49

Quantity in drawing1

3,460.00 SEK

excl. VAT

Few in stock (3)

Directional valve closed NG6 12V JT

Article no: 730112

(POS.8, 18, 13 incl.)

3,460.00 SEK

Few in stock (3)

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position55

Quantity in drawing1

9.00 SEK

excl. VAT

In stock

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

9.00 SEK

In stock

Adapter cable JT 2P-SQR 4S

Article no: 302971

Position31

Quantity in drawing1

640.00 SEK

excl. VAT

In stock

Adapter cable JT 2P-SQR 4S

Article no: 302971

640.00 SEK

In stock

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

Position16

Quantity in drawing1

1,500.00 SEK

excl. VAT

In stock

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

EC214 (POS.14, 20, 21 incl.)

1,500.00 SEK

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position66

Quantity in drawing3

20.00 SEK

excl. VAT

In stock

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20.00 SEK

In stock

Coil 24V NG6 JT on/off

Article no: 730118

Position12

Quantity in drawing3

1,340.00 SEK

excl. VAT

In stock

Coil 24V NG6 JT on/off

Article no: 730118

QTY: 1 for EC214

1,340.00 SEK

In stock

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

Position10

Quantity in drawing5

68.00 SEK

excl. VAT

In stock

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

68.00 SEK

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position8

Quantity in drawing8

9.00 SEK

excl. VAT

In stock

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

9.00 SEK

In stock
