Antal träffar 95
PosArtikelkodBenämningExtra infoAntal
137000261Rörplugg Din 906 3/4"For EC-Oil 2bl. See position on p.32
147001901O-ring 31,47x1,78 NBR 90QTY depends on config.6
15710707Tredobricka GBR16 1"QTY depends on config.10
167001902Plug Din 908 G1AQTY depends on config.10
18611042Bricka NL 12mmQTY: 16 for Wide8
366000201Skruv MC6S 16x30 12.9 ZFSHL ISO4762Add Loxeal 83-52. Torque: 333Nm2
411050579Koppling ECO 3/4" Hona V3Torque: 60Nm. (POS.42 incl.)2
461024112kolvtätning KPOR130 12x7,1x2,2(O-ring incl. with seal ring)2
471024111fettkolv för ECO block1
491047688Nut greasepiston V2Wrap with thread sealing tape1
50712429O-ring 9,25 X 1,78 NBR70Located inside nut1
567001521Tube sleeve straight Push-In - 20mmDepends on the specific hitch model2
577001980Tube sleeve 45° Push-In 15mmDepends on the specific hitch model2
691074953Block ECO70 W-S70-QH -2hy 1el right (assembly)(POS.3,14,41,43,52-54,64,70-72 incl.)1
731074951Block ECO70 W-S70-QH -3hy right (assembly)(POS.3,14,41,43, 52-53,70, 74-78,80)1
781054580Koppling ECO 1/2" Hona V3Torque: 60Nm. (POS.79 incl.)1
841067225Lock plate-UNI axle-S60/S70Assemble with slight play4
Låsläpp Pejo RC-208-10-1586405177Låsläpp Pejo RC-208-10-15Lifting hook spare part1

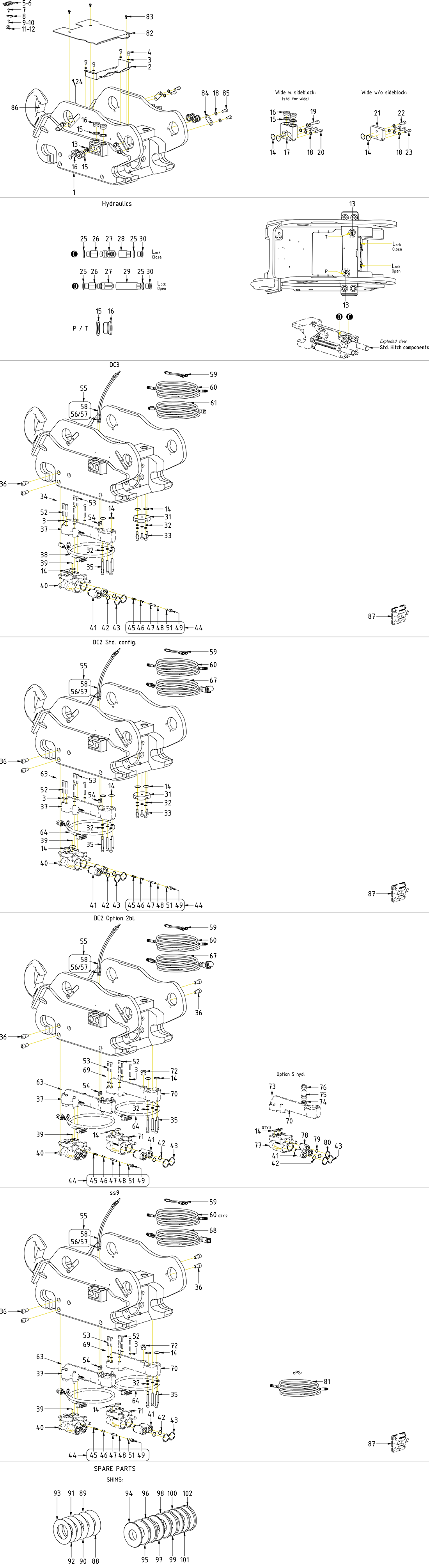

Start > engcon för grävmaskiner > Maskinfästen > S Fästen > S70 (from 2024)
