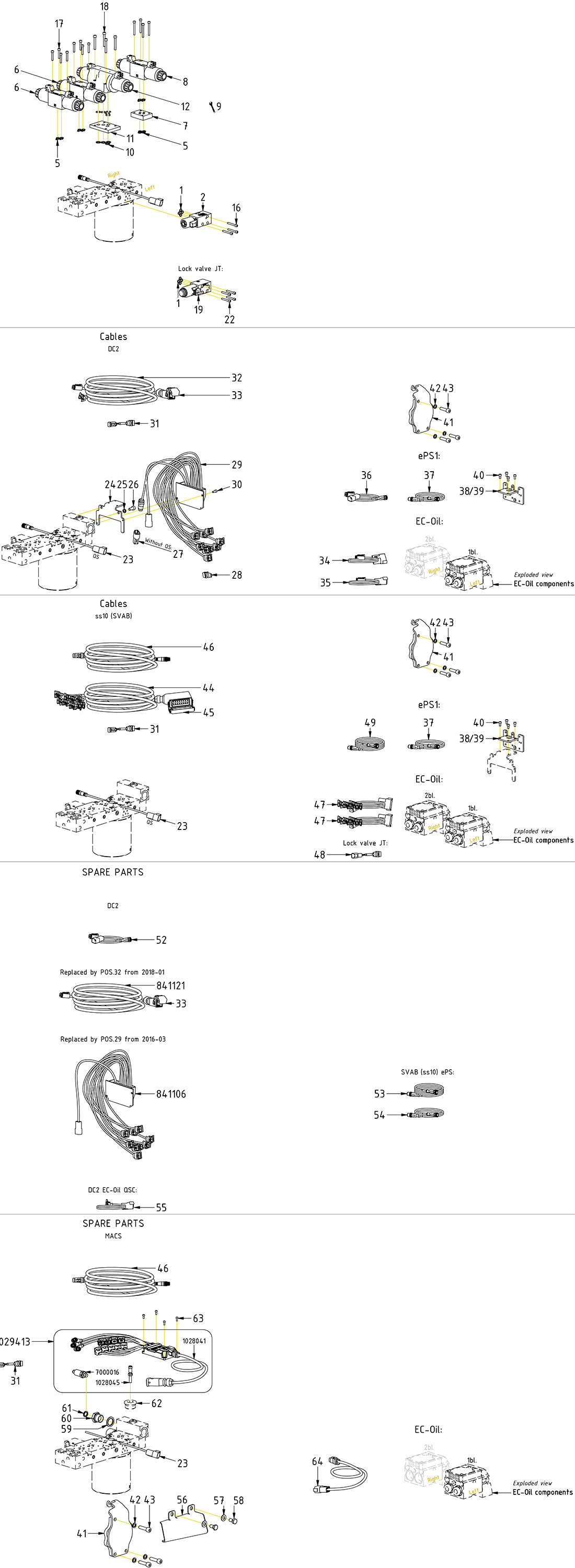

Ventiler & kablar ss10 'ECHF'

Pos

Artikel

Extra Info

Antal i ritning

Pris

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position51

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Torque: 17Nm

9,00 SEK

exkl. moms

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

Position46

Antal i ritning1

2 700,00 SEK

exkl. moms

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

For QS

2 700,00 SEK

exkl. moms

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position30

Antal i ritning2

9,00 SEK

exkl. moms

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

9,00 SEK

exkl. moms

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

Position43

Antal i ritning3

20,00 SEK

exkl. moms

Screw MC6S 10x40 12.9 ZFSHL ISO4762

Article no: 612020

20,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position1

Antal i ritning4

9,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position33

Antal i ritning1

360,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

360,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

Position21

Antal i ritning1

300,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

300,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position22

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

9,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position16

Antal i ritning3

9,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

9,00 SEK

exkl. moms

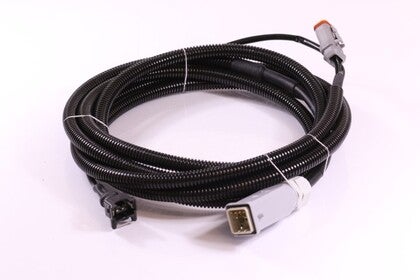

Unit cable-DC2-QSC EC206-EC233

Article no: 8000175

Position32

Antal i ritning1

3 240,00 SEK

exkl. moms

Unit cable-DC2-QSC EC206-EC233

Article no: 8000175

3 240,00 SEK

exkl. moms

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Position63

Antal i ritning4

7,00 SEK

exkl. moms

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

7,00 SEK

exkl. moms

Adapter cable ePS-DC2-sensor--> Tilt Module

Article no: 8000783

Position36

Antal i ritning1

1 430,00 SEK

exkl. moms

Adapter cable ePS-DC2-sensor--> Tilt Module

Article no: 8000783

1 430,00 SEK

exkl. moms

Unit cable-ePS

Article no: 8000824

Position49

Antal i ritning1

1 940,00 SEK

exkl. moms

Unit cable-ePS

Article no: 8000824

1 940,00 SEK

exkl. moms

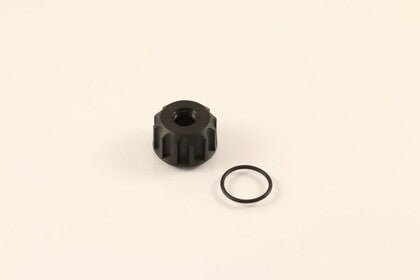

Nut directional valve Argo Hytos

Article no: 730135

Position15

Antal i ritning8

192,00 SEK

exkl. moms

Nut directional valve Argo Hytos

Article no: 730135

192,00 SEK

exkl. moms

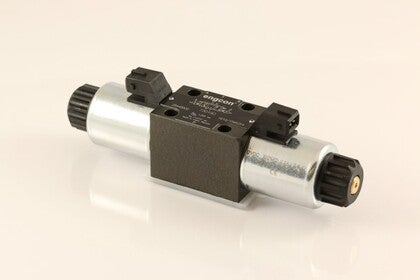

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position6

Antal i ritning2

10 900,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT

Article no: 730190

(POS.5, 13, 15 incl.)

10 900,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Position28

Antal i ritning1

190,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Plug JT connector "1"

190,00 SEK

exkl. moms

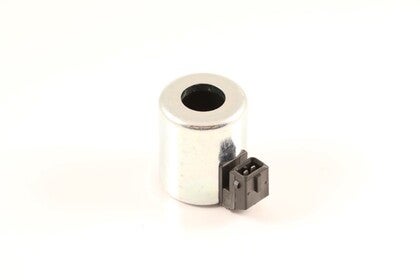

Coil 12V NG6 prop JT

Article no: 730192

Position13

Antal i ritning4

1 810,00 SEK

exkl. moms

Coil 12V NG6 prop JT

Article no: 730192

1 810,00 SEK

exkl. moms

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position40

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

9,00 SEK

exkl. moms

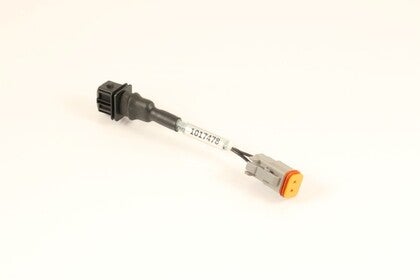

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

Position31

Antal i ritning1

640,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

For QS, CW, ECPUP, ss SIQ

640,00 SEK

exkl. moms

Protection plug for DTM06-6S

Article no: 8000090

Position27

Antal i ritning1

290,00 SEK

exkl. moms

Protection plug for DTM06-6S

Article no: 8000090

290,00 SEK

exkl. moms

Adapter cable ePS-DC2-rotation sensor

Article no: 842173

Position52

Antal i ritning1

1 840,00 SEK

exkl. moms

Adapter cable ePS-DC2-rotation sensor

Article no: 842173

Replaced by POS.36 from 2019-10

1 840,00 SEK

exkl. moms

Connection cable-ePS-rotation sensor->

Article no: 842188

Position54

Antal i ritning1

1 530,00 SEK

exkl. moms

Connection cable-ePS-rotation sensor->

Article no: 842188

Replaced by POS.37 from 2019-10

1 530,00 SEK

exkl. moms

Extension cable 5-pole M12 - 3m

Article no: 842187

Position53

Antal i ritning1

1 190,00 SEK

exkl. moms

Extension cable 5-pole M12 - 3m

Article no: 842187

Replaced by POS.49 from 2019-10

1 190,00 SEK

exkl. moms

Adapter cable Lock valve-ECO W-DC2-QSC

Article no: 1042250

Position55

Antal i ritning1

810,00 SEK

exkl. moms

Adapter cable Lock valve-ECO W-DC2-QSC

Article no: 1042250

Replaced by POS.35 from 2017-10

810,00 SEK

exkl. moms

Adapter cable ECO W-DC2(DC3)-DTM

Article no: 1042249

Position34

Antal i ritning1

1 530,00 SEK

exkl. moms

Adapter cable ECO W-DC2(DC3)-DTM

Article no: 1042249

For EC-Oil. Instead of POS.31-32

1 530,00 SEK

exkl. moms

Adapter cable ECO W-MACS-DTM

Article no: 1043277

Position64

Antal i ritning1

1 270,00 SEK

exkl. moms

Adapter cable ECO W-MACS-DTM

Article no: 1043277

For ECO. Instead of 1028041+POS.46

1 270,00 SEK

exkl. moms

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position3

Antal i ritning1

1 430,00 SEK

exkl. moms

Coil NG4 IQS lock 24V DT

Article no: 1042066

1 430,00 SEK

exkl. moms

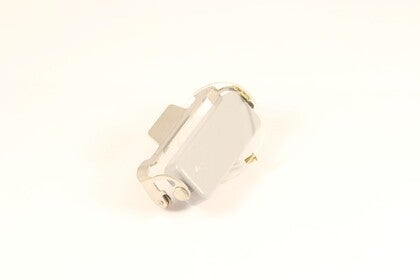

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position45

Antal i ritning1

550,00 SEK

exkl. moms

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

(Incl. with agg.cable)

550,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

Position47

Antal i ritning2

2 240,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

For EC-Oil. Instead of POS.31,44,46

2 240,00 SEK

exkl. moms

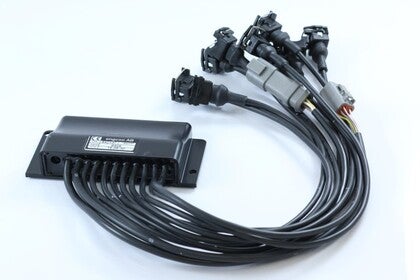

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

Position29

Antal i ritning1

12 700,00 SEK

exkl. moms

Electronics Module TM2-EC206B-233/EC10-30 DC2 QS-DTM

Article no: 842137

12 700,00 SEK

exkl. moms

Connection cable-ePS-rotation sensor-->

Article no: 8000784

Position37

Antal i ritning1

1 220,00 SEK

exkl. moms

Connection cable-ePS-rotation sensor-->

Article no: 8000784

1 220,00 SEK

exkl. moms

Coil NG4 24V JT

Article no: 730311

Position20

Antal i ritning1

920,00 SEK

exkl. moms

Coil NG4 24V JT

Article no: 730311

920,00 SEK

exkl. moms

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

Position2

Antal i ritning1

10 300,00 SEK

exkl. moms

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

For QS, CW, ECPUP, ss SIQ (POS.1, 3, 4 incl.)

10 300,00 SEK

exkl. moms

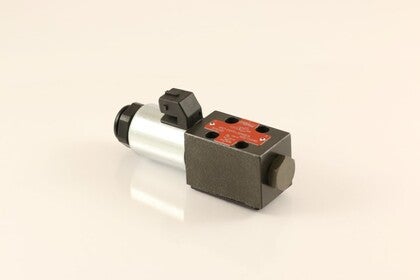

Directional valve NG4 lock 24V JT

Article no: 730310

Position19

Antal i ritning1

2 780,00 SEK

exkl. moms

Directional valve NG4 lock 24V JT

Article no: 730310

(POS.1, 20, 21 incl.)

2 780,00 SEK

exkl. moms

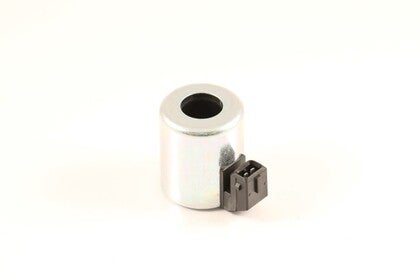

Coil 24V NG6 JT on/off

Article no: 730118

Position14

Antal i ritning4

1 340,00 SEK

exkl. moms

Coil 24V NG6 JT on/off

Article no: 730118

1 340,00 SEK

exkl. moms

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

Position10

Antal i ritning9

68,00 SEK

exkl. moms

O-ring 12,42x1,68 square NBR 70 shore NG10

Article no: 750704

68,00 SEK

exkl. moms

Adapter 234-12-04

Article no: 7000115

Position60

Antal i ritning1

80,00 SEK

exkl. moms

Adapter 234-12-04

Article no: 7000115

80,00 SEK

exkl. moms

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

Position62

Antal i ritning1

350,00 SEK

exkl. moms

Pipe Plug RP M36x2 Din 908 FZB M8x1 SVAB MACS

Article no: 650411

350,00 SEK

exkl. moms

Adapter cable Deutsch DT (2P) - AMP JT (2S)

Article no: 8001989

Position48

Antal i ritning1

640,00 SEK

exkl. moms

Adapter cable Deutsch DT (2P) - AMP JT (2S)

Article no: 8001989

For Left adapter cable

640,00 SEK

exkl. moms

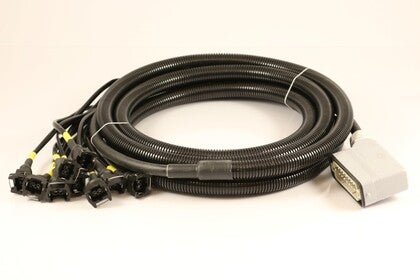

Unit cable-ss5-SVAB ILME 16P w/o Unit box-4,5m

Article no: 1015196

Position44

Antal i ritning1

6 310,00 SEK

exkl. moms

Unit cable-ss5-SVAB ILME 16P w/o Unit box-4,5m

Article no: 1015196

6 310,00 SEK

exkl. moms

Adapter plate NG10-NG6

Article no: 7000147

Position50

Antal i ritning1

4 160,00 SEK

exkl. moms

Adapter plate NG10-NG6

Article no: 7000147

4 160,00 SEK

exkl. moms

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

Position38

Antal i ritning1

980,00 SEK

exkl. moms

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

For Topcon/LEICA/Novatron

980,00 SEK

exkl. moms

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

Position39

Antal i ritning1

810,00 SEK

exkl. moms

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

For Trimble

810,00 SEK

exkl. moms

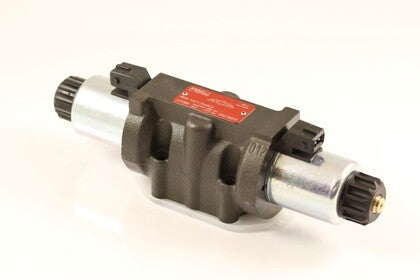

Directional valve NG10 24V

Article no: 730339

Position12

Antal i ritning1

7 120,00 SEK

exkl. moms

Directional valve NG10 24V

Article no: 730339

(POS.10, 14, 15 incl.)

7 120,00 SEK

exkl. moms

Protection sensor MACS-EC30

Article no: 1033690

Position56

Antal i ritning1

1 920,00 SEK

exkl. moms

Protection sensor MACS-EC30

Article no: 1033690

1 920,00 SEK

exkl. moms

Protection sensor -ePS-EC30

Article no: 1029734

Position41

Antal i ritning1

2 170,00 SEK

exkl. moms

Protection sensor -ePS-EC30

Article no: 1029734

2 170,00 SEK

exkl. moms

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

Position25

Antal i ritning2

19,00 SEK

exkl. moms

Washer NL8-DPE 8,7x13,5x2,7

Article no: 611040

19,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position42

Antal i ritning3

20,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20,00 SEK

exkl. moms

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position17

Antal i ritning8

9,00 SEK

exkl. moms

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

9,00 SEK

exkl. moms

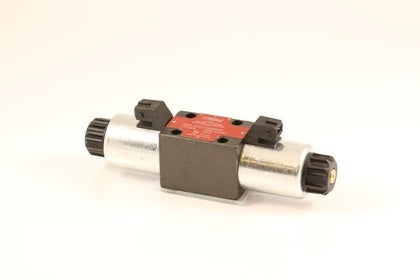

Directional valve NG6 24V

Article no: 730103

Position8

Antal i ritning1

5 350,00 SEK

exkl. moms

Directional valve NG6 24V

Article no: 730103

(POS.5, 14, 15 incl.)

5 350,00 SEK

exkl. moms
