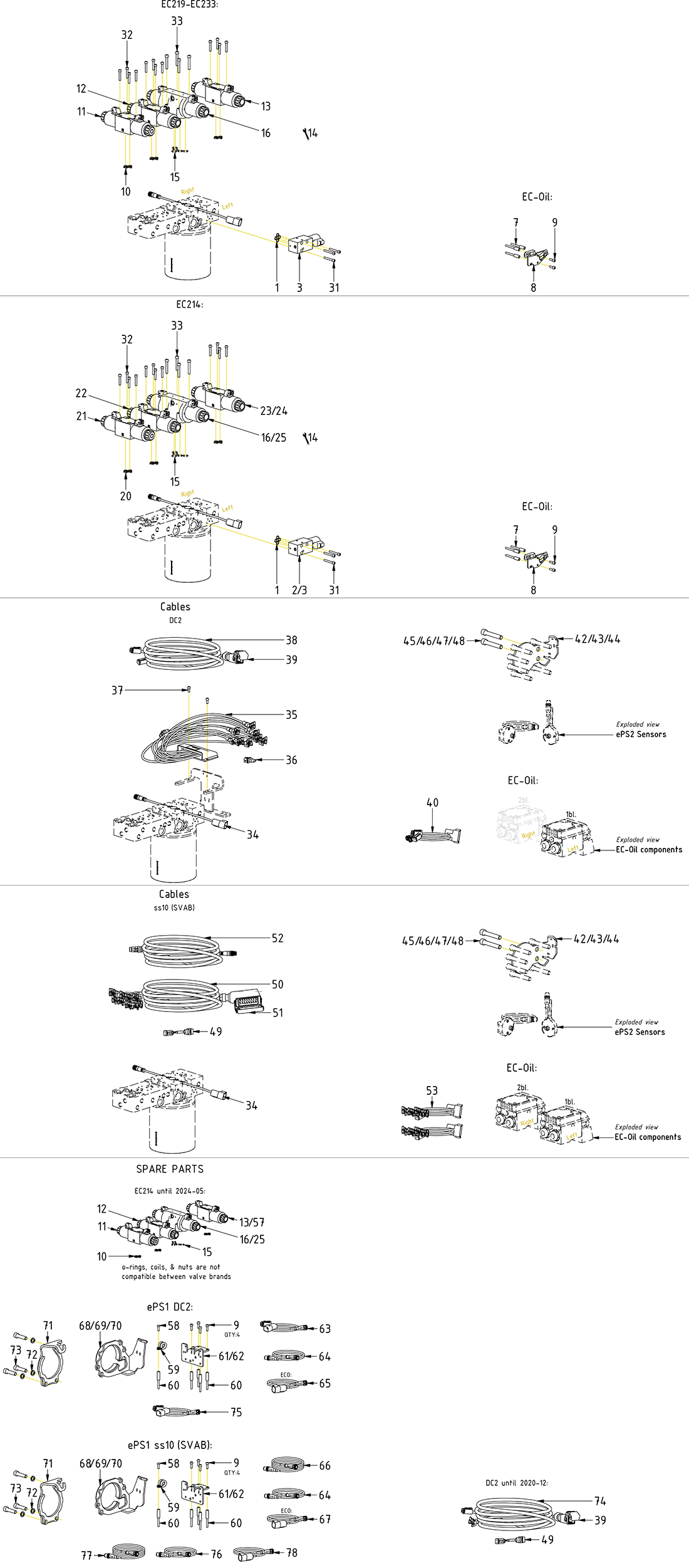

ss10 (DC2/SVAB) 'QSM'

Pos

Artikel

Extra Info

Antal i ritning

Pris

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

Position71

Antal i ritning1

1 980,00 SEK

exkl. moms

Protection sensor -ePS, SVAB MACS - EC226

Article no: 1016554

Replaced by POS.70 from 2020-07

1 980,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Position36

Antal i ritning1

190,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Plug JT connector "1"

190,00 SEK

exkl. moms

Unit cable-ss5-SVAB ILME 16P w/o Unit box-4,5m

Article no: 1015196

Position50

Antal i ritning1

6 310,00 SEK

exkl. moms

Unit cable-ss5-SVAB ILME 16P w/o Unit box-4,5m

Article no: 1015196

6 310,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

Position49

Antal i ritning1

640,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

(Previously also for DC2)

640,00 SEK

exkl. moms

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

Position3

Antal i ritning1

10 300,00 SEK

exkl. moms

Directional valve NG4 IQS lock 24V DT ss10 Coil A

Article no: 1042190

(POS.1, 5, 6 incl.)

10 300,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position2

Antal i ritning1

10 300,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

(POS.1, 4, 6 incl.)

10 300,00 SEK

exkl. moms

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position4

Antal i ritning1

1 430,00 SEK

exkl. moms

Coil NG4 IQS lock 12V DT

Article no: 1042065

1 430,00 SEK

exkl. moms

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position5

Antal i ritning1

1 430,00 SEK

exkl. moms

Coil NG4 IQS lock 24V DT

Article no: 1042066

1 430,00 SEK

exkl. moms

Protection sensor -ePS V2-EC226

Article no: 1055677

Position70

Antal i ritning1

1 280,00 SEK

exkl. moms

Protection sensor -ePS V2-EC226

Article no: 1055677

1 280,00 SEK

exkl. moms

Cable ePS ECO W tiltrotator ss5/ss9/SVAB

Article no: 1042245

Position78

Antal i ritning1

1 340,00 SEK

exkl. moms

Cable ePS ECO W tiltrotator ss5/ss9/SVAB

Article no: 1042245

Replaced by POS.67 from 2019-10

1 340,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

Position53

Antal i ritning2

2 240,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

For EC-Oil. Instead of POS.49-52

2 240,00 SEK

exkl. moms

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position68

Antal i ritning1

2 800,00 SEK

exkl. moms

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

2 800,00 SEK

exkl. moms

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position60

Antal i ritning5

162,00 SEK

exkl. moms

Screw Valve Distance NG6 5x30.5

Article no: 1034402

162,00 SEK

exkl. moms

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

Position61

Antal i ritning1

980,00 SEK

exkl. moms

Mounting plate-ePS-Tilt sensor except Trimble-ECHF

Article no: 1038119

For Topcon/LEICA/Novatron

980,00 SEK

exkl. moms

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

Position62

Antal i ritning1

810,00 SEK

exkl. moms

Mounting plate-ePS-Tilt sensor Trimble AS455-ECHF

Article no: 1038117

For Trimble

810,00 SEK

exkl. moms

Screw Valve Distance 5x39

Article no: 1047243

Position7

Antal i ritning3

89,00 SEK

exkl. moms

Screw Valve Distance 5x39

Article no: 1047243

Torque: 9,7Nm

89,00 SEK

exkl. moms

Protection sensor -ePS,SVAB MACS-EC233

Article no: 1040940

Position69

Antal i ritning1

5 540,00 SEK

exkl. moms

Protection sensor -ePS,SVAB MACS-EC233

Article no: 1040940

5 540,00 SEK

exkl. moms

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position42

Antal i ritning1

480,00 SEK

exkl. moms

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

480,00 SEK

exkl. moms

Mounting plate-2x Deutsch NG4

Article no: 1059664

Position8

Antal i ritning1

670,00 SEK

exkl. moms

Mounting plate-2x Deutsch NG4

Article no: 1059664

670,00 SEK

exkl. moms

End lock protection plate EC233/EC333

Article no: 1064168

Position44

Antal i ritning1

520,00 SEK

exkl. moms

End lock protection plate EC233/EC333

Article no: 1064168

520,00 SEK

exkl. moms

End lock protection plate EC226S/EC326

Article no: 1063521

Position43

Antal i ritning1

490,00 SEK

exkl. moms

End lock protection plate EC226S/EC326

Article no: 1063521

490,00 SEK

exkl. moms

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position37

Antal i ritning2

9,00 SEK

exkl. moms

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

9,00 SEK

exkl. moms

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position55

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Torque: 17Nm

9,00 SEK

exkl. moms

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Position33

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Torque: 17Nm

9,00 SEK

exkl. moms

Nut bulkhead adapter 1270-04

Article no: 710250

Position6

Antal i ritning1

25,00 SEK

exkl. moms

Nut bulkhead adapter 1270-04

Article no: 710250

25,00 SEK

exkl. moms

Rubber Steel Clamp Ø16

Article no: 6000009

Position59

Antal i ritning1

12,00 SEK

exkl. moms

Rubber Steel Clamp Ø16

Article no: 6000009

12,00 SEK

exkl. moms

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

Position73

Antal i ritning3

25,00 SEK

exkl. moms

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

25,00 SEK

exkl. moms

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position9

Antal i ritning2

9,00 SEK

exkl. moms

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Torque: 9,7Nm

9,00 SEK

exkl. moms

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position32

Antal i ritning12

9,00 SEK

exkl. moms

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

9,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position31

Antal i ritning3

9,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

9,00 SEK

exkl. moms

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Position46

Antal i ritning8

25,00 SEK

exkl. moms

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

For EC219. Torque: 136Nm

25,00 SEK

exkl. moms

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position48

Antal i ritning12

21,00 SEK

exkl. moms

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

For EC233. Torque: 136Nm

21,00 SEK

exkl. moms

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

Position47

Antal i ritning8

60,00 SEK

exkl. moms

Screw MC6S 14x80 12.9 ZFSHL ISO4762

Article no: 6000354

For EC226. Torque: 217Nm

60,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position72

Antal i ritning3

20,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20,00 SEK

exkl. moms

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position10

Antal i ritning12

9,00 SEK

exkl. moms

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

9,00 SEK

exkl. moms

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position20

Antal i ritning12

15,00 SEK

exkl. moms

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

15,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position1

Antal i ritning4

9,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position12

Antal i ritning1

10 900,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT

Article no: 730190

EC219-233 (POS.10, 17, 19 incl.)

10 900,00 SEK

exkl. moms

Coil 12V NG6 prop JT

Article no: 730192

Position17

Antal i ritning4

1 810,00 SEK

exkl. moms

Coil 12V NG6 prop JT

Article no: 730192

1 810,00 SEK

exkl. moms

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position45

Antal i ritning8

39,00 SEK

exkl. moms

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

For EC214. Torque: 136Nm

39,00 SEK

exkl. moms

Nut directional valve Argo Hytos

Article no: 730135

Position19

Antal i ritning8

192,00 SEK

exkl. moms

Nut directional valve Argo Hytos

Article no: 730135

QTY: 2 for EC214

192,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position57

Antal i ritning1

4 720,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

(POS.10, 26, 19 incl.)

4 720,00 SEK

exkl. moms

Directional valve NG6 24V

Article no: 730103

Position13

Antal i ritning1

5 350,00 SEK

exkl. moms

Directional valve NG6 24V

Article no: 730103

EC219-233 (POS.10, 18, 19 incl.)

5 350,00 SEK

exkl. moms

Coil 12V NG6 JT on/off

Article no: 730117

Position26

Antal i ritning2

1 340,00 SEK

exkl. moms

Coil 12V NG6 JT on/off

Article no: 730117

1 340,00 SEK

exkl. moms

Coil 24V NG6 JT on/off

Article no: 730118

Position18

Antal i ritning4

1 340,00 SEK

exkl. moms

Coil 24V NG6 JT on/off

Article no: 730118

QTY: 2 for EC214

1 340,00 SEK

exkl. moms

Directional valve NG10 12V

Article no: 730340

Position25

Antal i ritning1

7 000,00 SEK

exkl. moms

Directional valve NG10 12V

Article no: 730340

EC214 (POS.15, 26, 19 incl.)

7 000,00 SEK

exkl. moms

Directional valve NG10 24V

Article no: 730339

Position16

Antal i ritning1

7 120,00 SEK

exkl. moms

Directional valve NG10 24V

Article no: 730339

(POS.15, 18, 19 incl.)

7 120,00 SEK

exkl. moms

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position58

Antal i ritning1

9,00 SEK

exkl. moms

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

9,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position22

Antal i ritning1

6 290,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

EC214 (POS.20, 27, 30 incl.)

6 290,00 SEK

exkl. moms

Adapter plate NG10-NG6

Article no: 7000147

Position54

Antal i ritning1

4 160,00 SEK

exkl. moms

Adapter plate NG10-NG6

Article no: 7000147

4 160,00 SEK

exkl. moms
