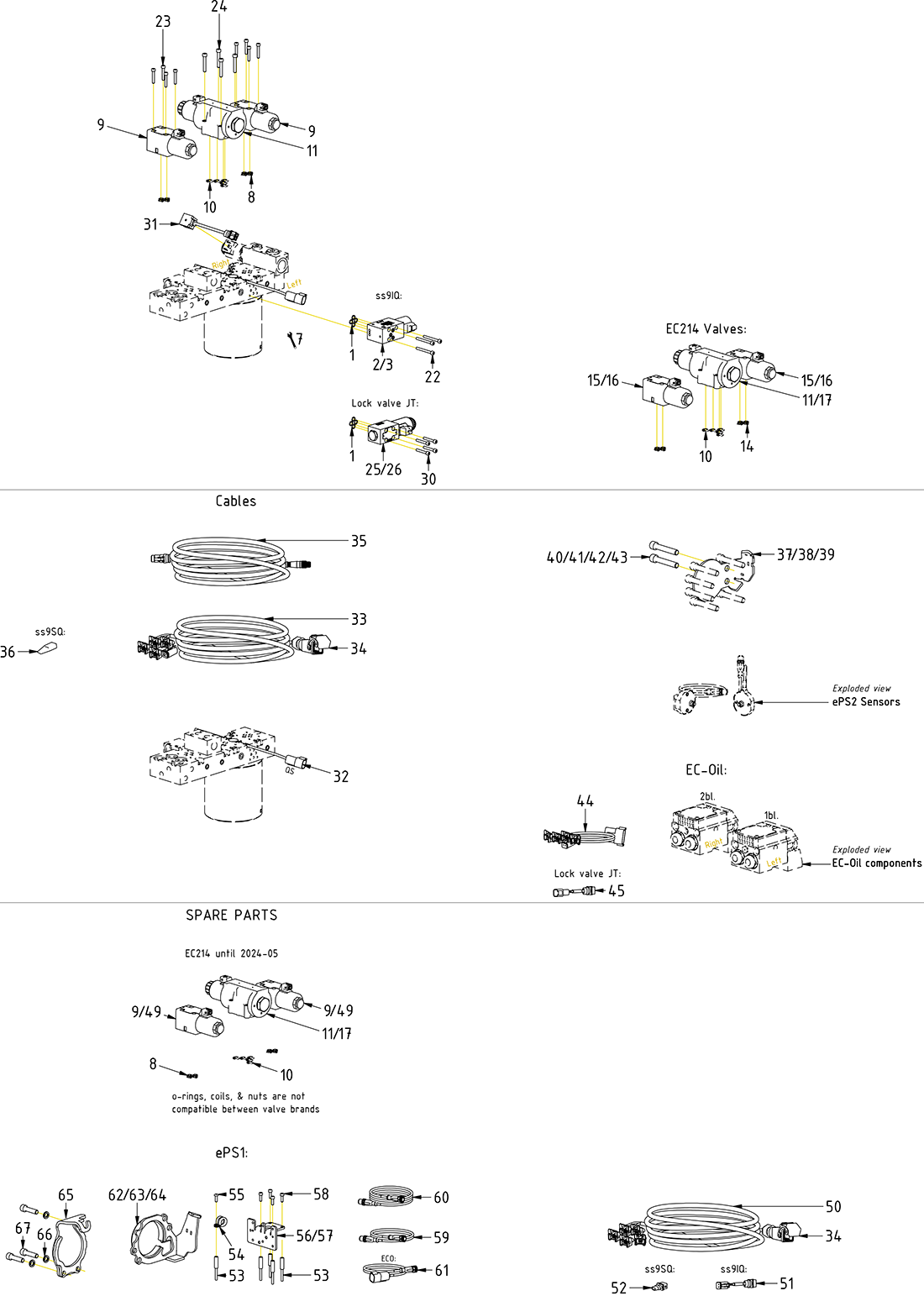

ss9 'ECHF'

Pos

Artikel

Extra Info

Antal i ritning

Pris

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position58

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Torque: 9,7Nm

9,00 SEK

exkl. moms

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position23

Antal i ritning8

9,00 SEK

exkl. moms

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

9,00 SEK

exkl. moms

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position43

Antal i ritning12

21,00 SEK

exkl. moms

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

For EC233. Torque: 136Nm

21,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position1

Antal i ritning4

9,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

Position2

Antal i ritning1

12 500,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss9 Coil A

Article no: 1042045

For QS, CW, ECPUP, ss SIQ (POS.1, 4, 6 incl.)

12 500,00 SEK

exkl. moms

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position4

Antal i ritning1

1 430,00 SEK

exkl. moms

Coil NG4 IQS lock 12V DT

Article no: 1042065

1 430,00 SEK

exkl. moms

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Position22

Antal i ritning3

9,00 SEK

exkl. moms

Screw MC6S 5x50 12.9 untreated ISO4762

Article no: 610407

Torque: 9,7Nm

9,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

Position29

Antal i ritning1

300,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

300,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position34

Antal i ritning1

360,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

360,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position30

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

9,00 SEK

exkl. moms

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position46

Antal i ritning1

6 740,00 SEK

exkl. moms

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut & o-ring with chokevalve incl. Assemble with POS.27/28

6 740,00 SEK

exkl. moms

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position47

Antal i ritning1

200,00 SEK

exkl. moms

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

O-ring incl.

200,00 SEK

exkl. moms

Coil NG4 12V JT

Article no: 730313

Position28

Antal i ritning1

1 180,00 SEK

exkl. moms

Coil NG4 12V JT

Article no: 730313

1 180,00 SEK

exkl. moms

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

Position67

Antal i ritning3

25,00 SEK

exkl. moms

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

25,00 SEK

exkl. moms

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position8

Antal i ritning8

9,00 SEK

exkl. moms

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

9,00 SEK

exkl. moms

Coil 12V NG6 JT on/off

Article no: 730117

Position18

Antal i ritning1

1 340,00 SEK

exkl. moms

Coil 12V NG6 JT on/off

Article no: 730117

1 340,00 SEK

exkl. moms

Directional valve closed NG6 12V JT

Article no: 730112

Position49

Antal i ritning1

3 460,00 SEK

exkl. moms

Directional valve closed NG6 12V JT

Article no: 730112

(POS.8, 18, 13 incl.)

3 460,00 SEK

exkl. moms

Nut directional valve Argo Hytos

Article no: 730135

Position13

Antal i ritning3

192,00 SEK

exkl. moms

Nut directional valve Argo Hytos

Article no: 730135

QTY: 1 for EC214

192,00 SEK

exkl. moms

Adapter cable ePS ECO

Article no: 8000825

Position61

Antal i ritning1

1 160,00 SEK

exkl. moms

Adapter cable ePS ECO

Article no: 8000825

For ECO w. ePS. Instead of POS.60

1 160,00 SEK

exkl. moms

Unit cable-ePS

Article no: 8000824

Position60

Antal i ritning1

1 940,00 SEK

exkl. moms

Unit cable-ePS

Article no: 8000824

1 940,00 SEK

exkl. moms

Jumper DT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1034439

Position36

Antal i ritning1

188,00 SEK

exkl. moms

Jumper DT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1034439

Plug DT connector for ss9SQ

188,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Position52

Antal i ritning1

190,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Used with POS.50 for ss9SQ

190,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position66

Antal i ritning3

20,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20,00 SEK

exkl. moms

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

Position35

Antal i ritning1

2 700,00 SEK

exkl. moms

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

For QS

2 700,00 SEK

exkl. moms

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position55

Antal i ritning1

9,00 SEK

exkl. moms

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

9,00 SEK

exkl. moms

Nut bulkhead adapter 1270-04

Article no: 710250

Position6

Antal i ritning1

25,00 SEK

exkl. moms

Nut bulkhead adapter 1270-04

Article no: 710250

25,00 SEK

exkl. moms

Rubber Steel Clamp Ø16

Article no: 6000009

Position54

Antal i ritning1

12,00 SEK

exkl. moms

Rubber Steel Clamp Ø16

Article no: 6000009

12,00 SEK

exkl. moms

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position14

Antal i ritning8

15,00 SEK

exkl. moms

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

15,00 SEK

exkl. moms

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position40

Antal i ritning8

39,00 SEK

exkl. moms

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

For EC214. Torque: 136Nm

39,00 SEK

exkl. moms

Directional valve NG4 lock 12V JT

Article no: 730312

Position26

Antal i ritning1

2 780,00 SEK

exkl. moms

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.1, 28, 29 incl.)

2 780,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

Position51

Antal i ritning1

640,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

Used with POS.50 for ss9IQ

640,00 SEK

exkl. moms

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Position41

Antal i ritning8

25,00 SEK

exkl. moms

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

For EC219. Torque: 136Nm

25,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

Position44

Antal i ritning1

2 240,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

For EC-Oil. Instead of POS.33 & 35

2 240,00 SEK

exkl. moms

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

Position16

Antal i ritning1

1 500,00 SEK

exkl. moms

Directional valve closed NG6 12V JT ATOS

Article no: 7001619

EC214 (POS.14, 20, 21 incl.)

1 500,00 SEK

exkl. moms

Adapter cable Hirschmann - Amp connector

Article no: 302971

Position31

Antal i ritning1

640,00 SEK

exkl. moms

Adapter cable Hirschmann - Amp connector

Article no: 302971

640,00 SEK

exkl. moms

Unit cable-ss9-2 dump EC206-EC233 ILME 12P

Article no: 1032909

Position50

Antal i ritning1

4 080,00 SEK

exkl. moms

Unit cable-ss9-2 dump EC206-EC233 ILME 12P

Article no: 1032909

Replaced by POS.33 from 2022-06

4 080,00 SEK

exkl. moms

Unit cable-ss9-2 dump EC206-EC233 ILME 12P DT

Article no: 8001823

Position33

Antal i ritning1

2 970,00 SEK

exkl. moms

Unit cable-ss9-2 dump EC206-EC233 ILME 12P DT

Article no: 8001823

2 970,00 SEK

exkl. moms

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Position53

Antal i ritning5

162,00 SEK

exkl. moms

Screw Valve Distance NG6 5x30.5

Article no: 1034402

Torque: 9,7Nm

162,00 SEK

exkl. moms

Directional valve closed NG6 24V JT ATOS

Article no: 7001618

Position15

Antal i ritning1

1 550,00 SEK

exkl. moms

Directional valve closed NG6 24V JT ATOS

Article no: 7001618

EC214 (POS.14, 19, 21 incl.)

1 550,00 SEK

exkl. moms

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

Position62

Antal i ritning1

2 800,00 SEK

exkl. moms

Protection sensor -ePS, SVAB MACS-V2-EC209,EC214,EC219

Article no: 1033565

2 800,00 SEK

exkl. moms

Connection cable-ePS-rotation sensor-->

Article no: 8000784

Position59

Antal i ritning1

1 220,00 SEK

exkl. moms

Connection cable-ePS-rotation sensor-->

Article no: 8000784

1 220,00 SEK

exkl. moms

Directional valve closed NG6 24V JT

Article no: 730110

Position9

Antal i ritning2

4 220,00 SEK

exkl. moms

Directional valve closed NG6 24V JT

Article no: 730110

EC219-233 (POS.8, 12, 13 incl.)

4 220,00 SEK

exkl. moms

Coil NG4 24V JT

Article no: 730311

Position27

Antal i ritning1

920,00 SEK

exkl. moms

Coil NG4 24V JT

Article no: 730311

920,00 SEK

exkl. moms

Directional valve NG4 lock 24V JT

Article no: 730310

Position25

Antal i ritning1

2 780,00 SEK

exkl. moms

Directional valve NG4 lock 24V JT

Article no: 730310

(POS.1, 27, 29 incl.)

2 780,00 SEK

exkl. moms

Directional valve NG4 IQS lock 24V DT ss9 Coil A

Article no: 1042188

Position3

Antal i ritning1

12 800,00 SEK

exkl. moms

Directional valve NG4 IQS lock 24V DT ss9 Coil A

Article no: 1042188

For QS, CW, ECPUP, ss SIQ, EC233 (POS.1, 5, 6 incl.)

12 800,00 SEK

exkl. moms

Coil NG4 IQS lock 24V DT

Article no: 1042066

Position5

Antal i ritning1

1 430,00 SEK

exkl. moms

Coil NG4 IQS lock 24V DT

Article no: 1042066

1 430,00 SEK

exkl. moms

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

Position19

Antal i ritning1

1 550,00 SEK

exkl. moms

Coil 24V NG6 JT on/off ATOS

Article no: 7001736

1 550,00 SEK

exkl. moms

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

Position20

Antal i ritning1

580,00 SEK

exkl. moms

Coil 12V NG6 JT on/off ATOS

Article no: 7001735

580,00 SEK

exkl. moms

Nut directional valve ATOS

Article no: 7001887

Position21

Antal i ritning3

20,00 SEK

exkl. moms

Nut directional valve ATOS

Article no: 7001887

20,00 SEK

exkl. moms

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

Position37

Antal i ritning1

480,00 SEK

exkl. moms

End lock protection plate EC209S/EC214S/EC219S

Article no: 1063372

480,00 SEK

exkl. moms
