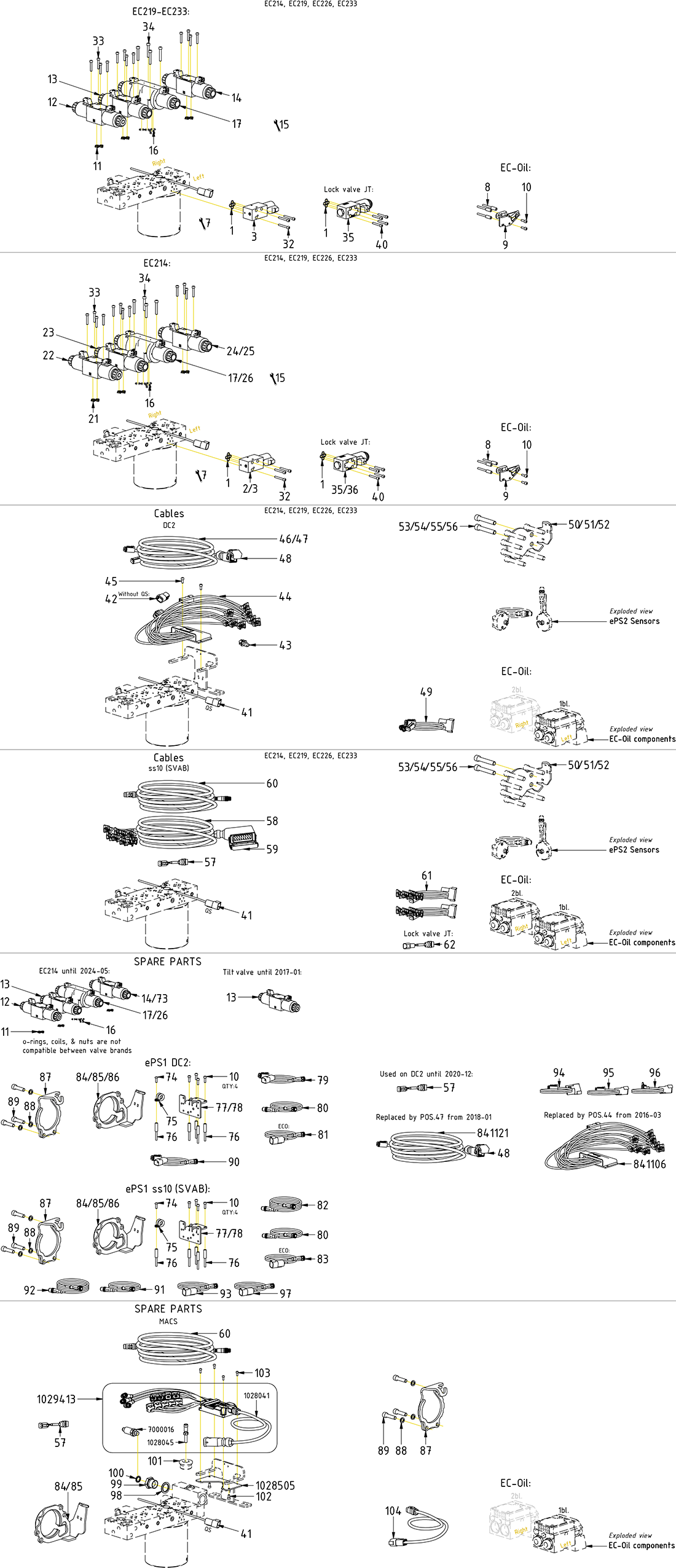

ss10 (DC2/SVAB) 'ECHF'

Pos

Artikel

Extra Info

Antal i ritning

Pris

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

Position89

Antal i ritning3

25,00 SEK

exkl. moms

Screw MC6S 10x40 12.9 untreated ISO4762

Article no: 610453

25,00 SEK

exkl. moms

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

Position103

Antal i ritning4

7,00 SEK

exkl. moms

103

Screw MC6S 4x10 8.8 FZB ISO4762

Article no: 610523

7,00 SEK

exkl. moms

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

Position11

Antal i ritning12

9,00 SEK

exkl. moms

O-ring 9,25x1,78 FKM 90 shore Viton Green NG6

Article no: 710901

9,00 SEK

exkl. moms

Coil 12V NG6 JT on/off

Article no: 730117

Position27

Antal i ritning2

1 340,00 SEK

exkl. moms

Coil 12V NG6 JT on/off

Article no: 730117

1 340,00 SEK

exkl. moms

Nut directional valve Argo Hytos

Article no: 730135

Position20

Antal i ritning8

192,00 SEK

exkl. moms

Nut directional valve Argo Hytos

Article no: 730135

QTY: 2 for EC214

192,00 SEK

exkl. moms

Adapter cable DC2 ECO QSC ePS2 DTM

Article no: 8001847

Position49

Antal i ritning1

2 140,00 SEK

exkl. moms

Adapter cable DC2 ECO QSC ePS2 DTM

Article no: 8001847

For EC-Oil. Instead of agg.cable

2 140,00 SEK

exkl. moms

Adapter cable ePS-DC2-sensor--> Tilt Module

Article no: 8000783

Position79

Antal i ritning1

1 430,00 SEK

exkl. moms

Adapter cable ePS-DC2-sensor--> Tilt Module

Article no: 8000783

1 430,00 SEK

exkl. moms

Adapter cable ePS ECO

Article no: 8000825

Position83

Antal i ritning1

1 160,00 SEK

exkl. moms

Adapter cable ePS ECO

Article no: 8000825

For ECO w. ePS. Instead of POS.82

1 160,00 SEK

exkl. moms

Unit cable-ePS

Article no: 8000824

Position82

Antal i ritning1

1 940,00 SEK

exkl. moms

Unit cable-ePS

Article no: 8000824

1 940,00 SEK

exkl. moms

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Position33

Antal i ritning12

9,00 SEK

exkl. moms

Screw MC6S 5x30 12.9 untreated ISO4762

Article no: 610403

Torque: 9,7Nm

9,00 SEK

exkl. moms

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Position34

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 6x40 12.9 untreated ISO4762

Article no: 610418

Torque: 17Nm

9,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

Position1

Antal i ritning8

9,00 SEK

exkl. moms

O-ring 7,65x1,78 FKM 90 shore Viton NG4

Article no: 710960

9,00 SEK

exkl. moms

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

Position56

Antal i ritning12

21,00 SEK

exkl. moms

Screw MC6S 12x80 12.9 ZFSHL ISO4762

Article no: 6000148

For EC233. Torque: 136Nm

21,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

Position2

Antal i ritning1

10 300,00 SEK

exkl. moms

Directional valve NG4 IQS lock 12V DT ss10 Coil A

Article no: 1042047

For QS, CW, ECPUP, ss SIQ (POS.1, 4, 6 incl.)

10 300,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Position32

Antal i ritning3

9,00 SEK

exkl. moms

Screw MC6S 5x40 12.9 untreated ISO4762

Article no: 610405

Torque: 9,7Nm

9,00 SEK

exkl. moms

Coil NG4 IQS lock 12V DT

Article no: 1042065

Position4

Antal i ritning1

1 430,00 SEK

exkl. moms

Coil NG4 IQS lock 12V DT

Article no: 1042065

1 430,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

Position39

Antal i ritning1

300,00 SEK

exkl. moms

Nut directional valve NG4

Article no: 1006785

300,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

Position48

Antal i ritning1

360,00 SEK

exkl. moms

ILME cover21.21 with lever CKAX 03 CXA

Article no: 810208

(Incl. with agg.cable)

360,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Position40

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 5x35 12.9 untreated ISO4762

Article no: 610404

Torque: 9,7Nm

9,00 SEK

exkl. moms

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Position63

Antal i ritning1

6 740,00 SEK

exkl. moms

Directional valve NG4 crossparallel external T without Coil

Article no: 730321

Nut & o-ring with chokevalve incl. Assemble with POS.37/38

6 740,00 SEK

exkl. moms

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Position64

Antal i ritning1

200,00 SEK

exkl. moms

Plug Dysa D0 for NG4 / VRP2-04

Article no: 790191

Not for HS08, Arden, MSWH050 O-ring incl.

200,00 SEK

exkl. moms

Coil NG4 12V JT

Article no: 730313

Position38

Antal i ritning1

1 180,00 SEK

exkl. moms

Coil NG4 12V JT

Article no: 730313

1 180,00 SEK

exkl. moms

Unit cable-DC2-QSC EC206-EC233

Article no: 8000175

Position47

Antal i ritning1

3 240,00 SEK

exkl. moms

Unit cable-DC2-QSC EC206-EC233

Article no: 8000175

For Lock valve JT

3 240,00 SEK

exkl. moms

Plug JT

Article no: 1045154

Position71

Antal i ritning1

116,00 SEK

exkl. moms

Plug JT

Article no: 1045154

Plug connector "9" & "10"

116,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

Position73

Antal i ritning1

4 720,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT

Article no: 730101

(POS.11, 27, 20 incl.)

4 720,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Position43

Antal i ritning1

190,00 SEK

exkl. moms

Jumper JT tool lock valve SQ/QSC DC2/ss9-2

Article no: 1018662

Plug JT connector "1"

190,00 SEK

exkl. moms

Coil 12V NG6 prop JT

Article no: 730192

Position18

Antal i ritning4

1 810,00 SEK

exkl. moms

Coil 12V NG6 prop JT

Article no: 730192

1 810,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT

Article no: 730190

Position13

Antal i ritning1

10 900,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT

Article no: 730190

EC219-233 (POS.11, 18, 20 incl.)

10 900,00 SEK

exkl. moms

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

Position102

Antal i ritning2

9,00 SEK

exkl. moms

102

Screw MC6S 5x10 12.9 untreated ISO4762

Article no: 610594

9,00 SEK

exkl. moms

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

Position53

Antal i ritning8

39,00 SEK

exkl. moms

Screw MC6S 12x70 12.9 ZFSHL ISO4762

Article no: 611517

For EC214. Torque: 136Nm

39,00 SEK

exkl. moms

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

Position60

Antal i ritning1

2 700,00 SEK

exkl. moms

Cable QS - QLM - tiltrotator DTM 4,5m

Article no: 842148

For QS

2 700,00 SEK

exkl. moms

Seal washer GBR12 3/4"

Article no: 710706

Position98

Antal i ritning1

12,00 SEK

exkl. moms

Seal washer GBR12 3/4"

Article no: 710706

12,00 SEK

exkl. moms

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

Position45

Antal i ritning2

9,00 SEK

exkl. moms

Screw MC6S 5x12 12.9 untreated ISO4762

Article no: 6000077

9,00 SEK

exkl. moms

Nut bulkhead adapter 1270-04

Article no: 710250

Position6

Antal i ritning1

25,00 SEK

exkl. moms

Nut bulkhead adapter 1270-04

Article no: 710250

25,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

Position88

Antal i ritning3

20,00 SEK

exkl. moms

Washer NL10-DPE 10,7x16,6x2,7

Article no: 611041

20,00 SEK

exkl. moms

Seal washer GBR04 1/4"

Article no: 710702

Position100

Antal i ritning1

9,00 SEK

exkl. moms

100

Seal washer GBR04 1/4"

Article no: 710702

Used as shim if required

9,00 SEK

exkl. moms

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Position74

Antal i ritning1

9,00 SEK

exkl. moms

Screw K6S 5x16H 10.9 FZB ISO7380

Article no: 611818

Torque: 8,1Nm

9,00 SEK

exkl. moms

Rubber Steel Clamp Ø16

Article no: 6000009

Position75

Antal i ritning1

12,00 SEK

exkl. moms

Rubber Steel Clamp Ø16

Article no: 6000009

12,00 SEK

exkl. moms

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

Position21

Antal i ritning12

15,00 SEK

exkl. moms

O-ring 8,73x1,78 NBR 90 shore

Article no: 710959

15,00 SEK

exkl. moms

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Position69

Antal i ritning4

9,00 SEK

exkl. moms

Screw MC6S 6x25 12.9 untreated ISO4762

Article no: 6000083

Torque: 17Nm

9,00 SEK

exkl. moms

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Position10

Antal i ritning2

9,00 SEK

exkl. moms

Screw MC6S 5x16 12.9 untreated ISO4762

Article no: 610401

Torque: 9,7Nm

9,00 SEK

exkl. moms

Protection plug for DTM06-6S

Article no: 8000090

Position42

Antal i ritning1

290,00 SEK

exkl. moms

Protection plug for DTM06-6S

Article no: 8000090

290,00 SEK

exkl. moms

Unit cable-DC2-QSC DT EC206-EC233

Article no: 8001201

Position46

Antal i ritning1

3 030,00 SEK

exkl. moms

Unit cable-DC2-QSC DT EC206-EC233

Article no: 8001201

3 030,00 SEK

exkl. moms

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

Position59

Antal i ritning1

550,00 SEK

exkl. moms

ILME cover 66.16 with lever CZC 25 LG

Article no: 810235

(Incl. with agg.cable)

550,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

Position61

Antal i ritning2

2 240,00 SEK

exkl. moms

Adapter cable ECO-ss5/ss9/ss10-DTM-->JT/DT

Article no: 1029599

For EC-Oil. Instead of POS.57-60

2 240,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

Position25

Antal i ritning1

2 140,00 SEK

exkl. moms

Directional valve NG6 12V. 4D01-3203-0302-B1-GOR-JT ATOS

Article no: 7001617

EC214 (POS.21, 30, 31 incl.)

2 140,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

Position23

Antal i ritning1

6 290,00 SEK

exkl. moms

Directional valve NG6 prop 12V engcon JT ATOS

Article no: 7001614

EC214 (POS.21, 28, 31 incl.)

6 290,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

Position57

Antal i ritning1

640,00 SEK

exkl. moms

Adapter cable Deutsch DT (2S) - AMP JT (2P)

Article no: 1017478

(Previously also for DC2)

640,00 SEK

exkl. moms

Directional valve NG4 lock 12V JT

Article no: 730312

Position36

Antal i ritning1

2 780,00 SEK

exkl. moms

Directional valve NG4 lock 12V JT

Article no: 730312

(POS.1, 38, 39 incl.)

2 780,00 SEK

exkl. moms

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

Position54

Antal i ritning8

25,00 SEK

exkl. moms

Screw MC6S 12x90 12.9 ZFSHL ISO4762

Article no: 6000147

For EC219. Torque: 136Nm

25,00 SEK

exkl. moms
